ETH-SP-G2

Ubiquiti

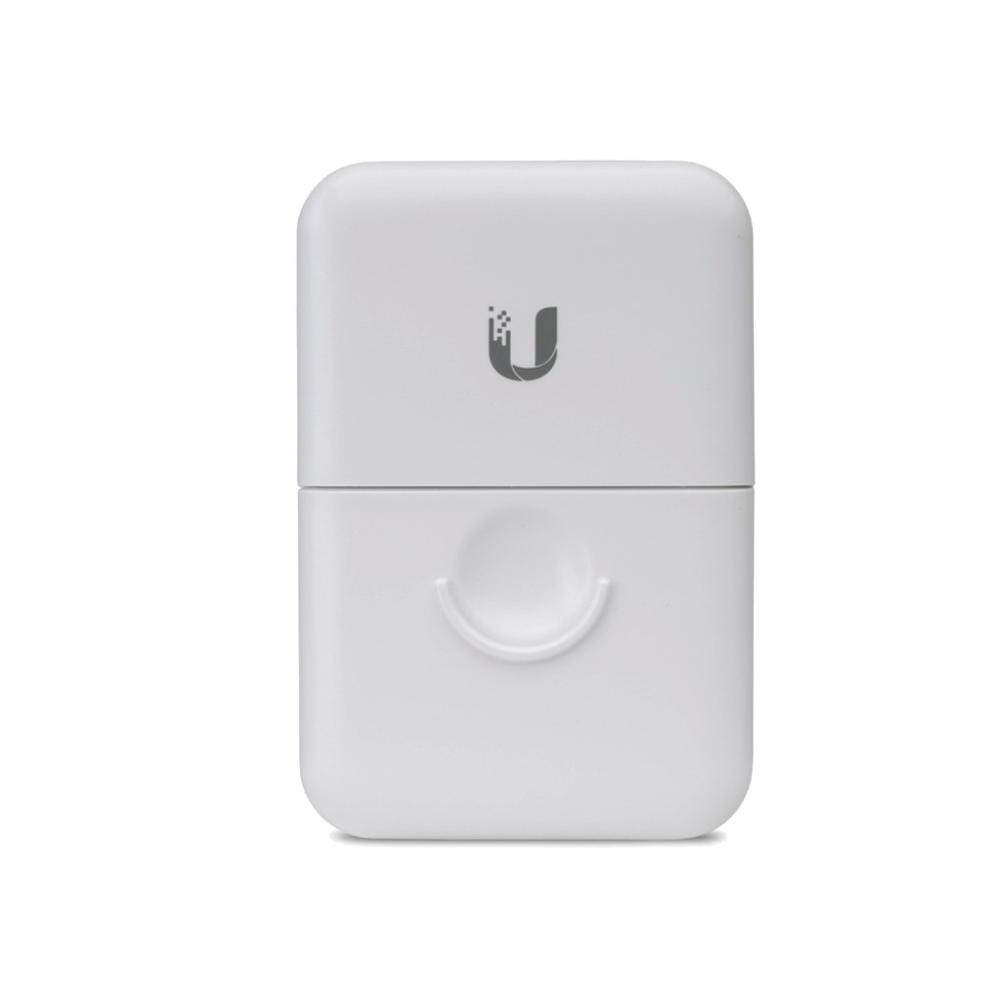

Ubiquiti Networks ETH-SP-G2 Ethernet Surge Protector Gen2


Product Highlights
  • Ubiquiti Ethernet Surge Protector Gen 2 ETH-SP-G2 Ethernet to Ethernet Grounded ESD Protection
  • Ubiquiti Networks Ethernet Surge Protector Gen 2 ETH-SP-G2 Ethernet to Ethernet Grounded ESD Protection
  • The ETH-SP is engineered to protect any Power-over-Ethernet (PoE) or non-PoE device with connection speeds of up to 1 Gbps.
  • Damaging electrostatic discharge attacks and surges are diverted to the ETH-SP and safely discharged into the ground, so network devices are protected.
  • All Ubiquiti® airMAX® devices are equipped with built-in ESD protection, so the ETH-SP adds another layer of protection to your outdoor, high-speed network.

    • Model#: ETH-SP-G2

    Sku: IT1890



    MSRP: $15.99

    In Stock

    Your Price: $15.99






    More to consider

    Part: NBE-5AC-Gen2-US
    NBE-5AC-Gen2-US
    Ubiquiti Networks NBE-5AC-GEN2-US 5GHz NanoBeam ac Gen2 19dBi US

    Your Price: $117.00


    Model: ETH-SP-Gen2



    ESD protection for outdoor high-speed networks.

    Introducing the next generation Ethernet Surge Protector, model ETH-SP-G2, from Ubiquiti. The ETH-SP-G2 is a cost-effective solution for protecting outdoor Ethernet devices from damaging electrostatic discharge and surges. Since all Ubiquiti® airMAX devices already have robust ESD protection built in, adding the ETH-SP-G2 to the installation provides an additional layer of protection to the network.

    The ETH-SP-G2 is engineered to protect Power-over-Ethernet (PoE) or non-PoE devices with connection speeds of up to 1 Gbps. Two passive, surge-protected RJ45 connections provide maximum equipment compatibility.



    • Low-Cost Protection and Fast Installation
    • Protects Outdoor Ethernet Devices
    • Compatible with 10/100/1000 Mbps Networks
    • Dimensions

    91 x 61 x 32.5 mm

    • Weight

    80g

    • Interface Connections

    2x RJ45

    • ESD/EMP Protection

    Absorbing Transient Current with Responce to Surge Voltage from 100V/s to 1kV/us

    • DC Spart

    Over Voltage - 90V @ 100V/s

    • Maximum Impulse Spark

    over Voltage - 700V @ 1kV/us

    • Discharge Current

    5kA Maximum / 0.5kA Normal

    • Maximum Insulation Resistance

    1Gohm @50V

    • Maximum Capacitance

    1.0 pF @ 1MHz

    • Data Line Protection

    Gigabit Ethernet

    • IEEE 802.3af POE Support

    Yes



    Datasheet

    PDF File Ubiquiti Networks ETH-SP-G2 Ethernet Surge Protector Gen2
