NBE-5AC-Gen2-US

Ubiquiti


Ubiquiti Networks NBE-5AC-GEN2-US 5GHz NanoBeam ac Gen2 19dBi US


Model#: NBE-5AC-Gen2-US

Sku: IT1784



MSRP: $115.00

In Stock

Your Price: $115.00






More to consider

Part: ETH-SP-G2
ETH-SP-G2
Ubiquiti Networks ETH-SP-G2 Ethernet Surge Protector Gen2

Your Price: $15.99

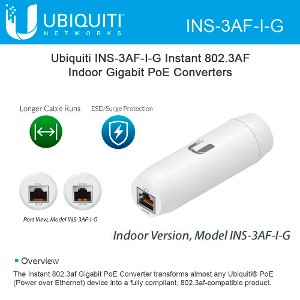

Part: INS-3AF-I-G
INS-3AF-I-G
Ubiquiti Networks Instant 802.3af Indoor Gigabit PoE Converter INS-3AF-I-G

Your Price: $19.99



Part: UB-AM

Your Price: $29.99



SKU: NBE-5AC-Gen2-US

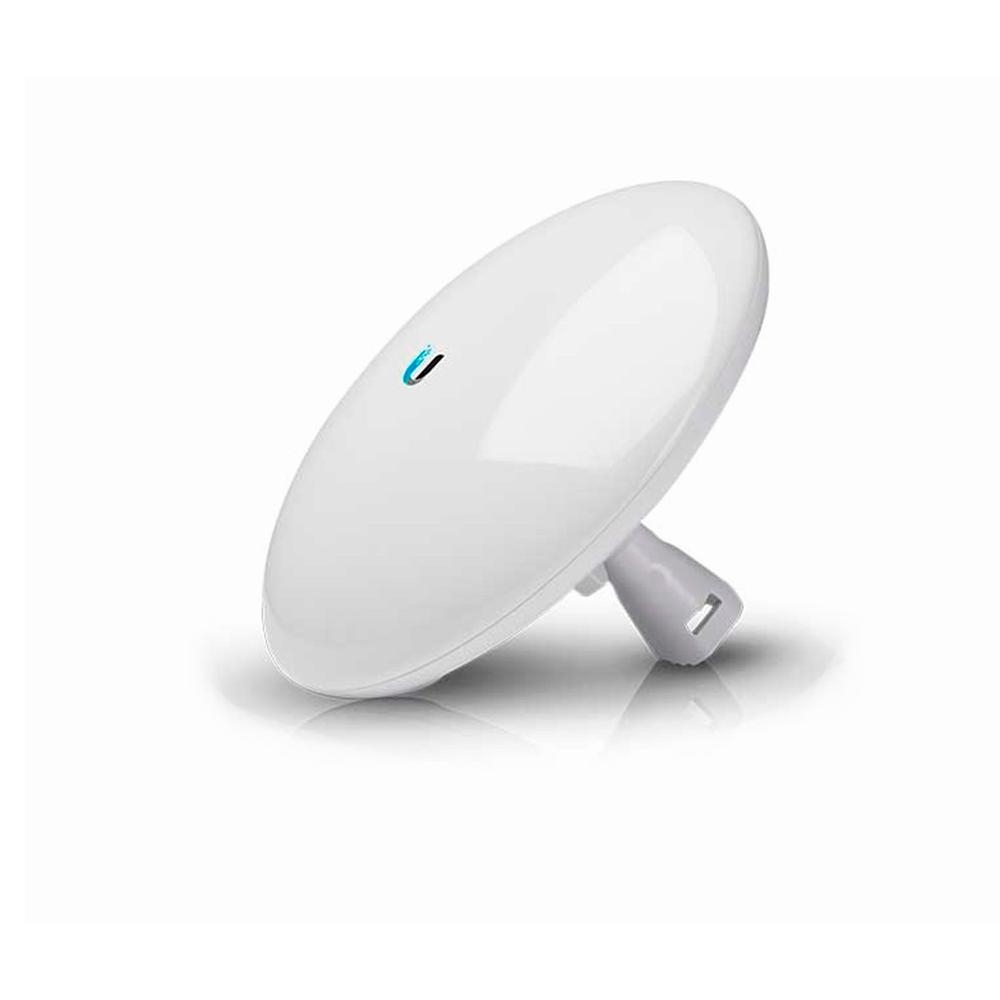

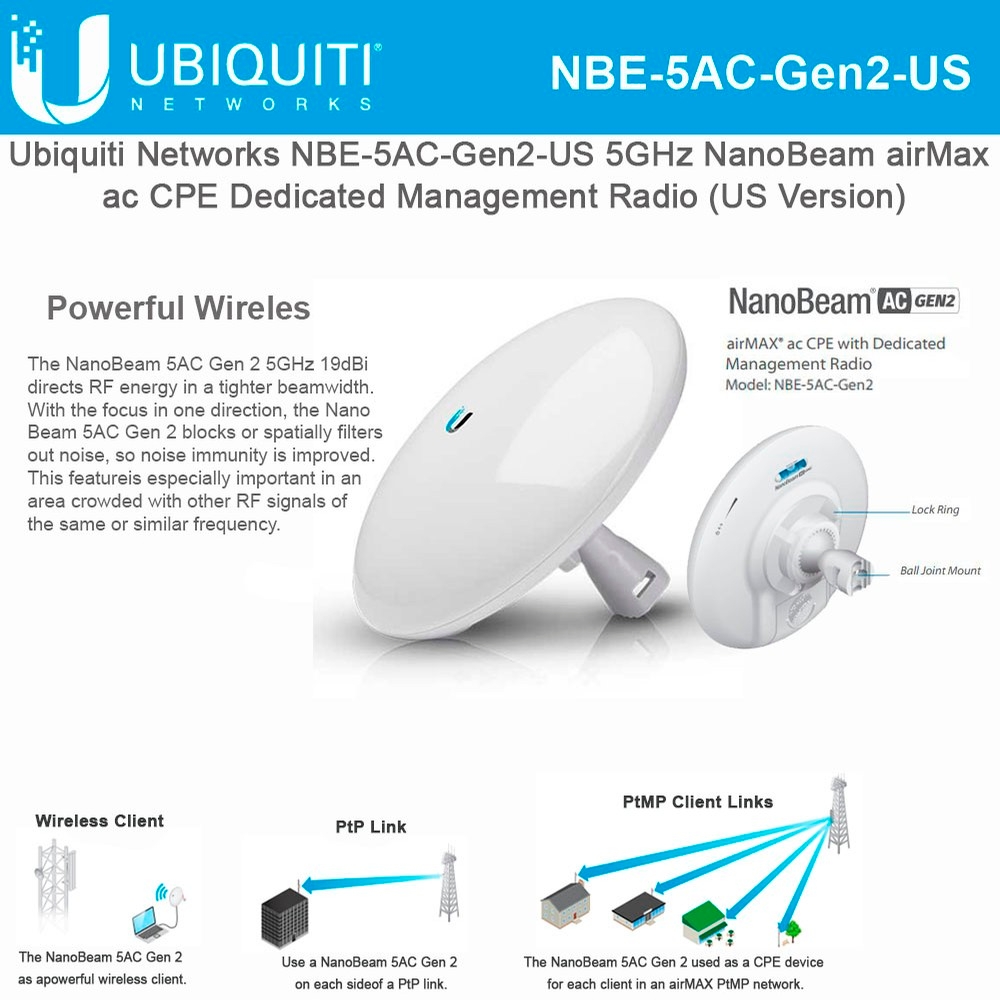

Ubiquiti Networks 5GHz NanoBeam ac Gen2 CPE 19dBi

High-Performance airMAX® ac Bridge

Incorporating innovative industrial design with proprietary airMAX® ac technology, the NanoBeam® AC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.

Management Wi-Fi Radio

The NanoBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Improved Surge Protection

The NanoBeam® AC features enhanced protection against ESD events.

Superior Processing

Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

Incredible Antenna “Beam” Performance

The form factor of the NanoBeam® AC features the highest gain for its size. The NanoBeam AC’s excellent beam directivity provides the best performance in high-noise environments.

Performance Breakthrough

airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.

Advanced Software Technology

Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Plug and Play Installation

The NanoBeam® AC mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting.

Now with airOS®8

airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Specifications NBE-5AC-Gen2

Dimensions (Mount Included) 189 x 189 x 125 mm (7.44 x 7.44 x 4.92")
Weight (Mount Included) 0.530 kg (1.17 lb)
Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
Operating Frequency Worldwide 2412 - 2472 MHz 5150 - 5875 MHz, USA: 2412 - 2462 MHz
Max. Power Consumption 8.5W
Gain 19 dBi
Networking Interface (1) 10/100/1000 Ethernet Port Wi-Fi for Management
Processor Specs Atheros MIPS 74Kc, 720 MHz
Memory 128 MB DDR2, 8 MB Flash
LEDs Power, Ethernet, (4) Signal Strength
Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels
Max. VSWR 1.5:1
Channel Sizes PtP Mode 10/20/30/40/50/60/80 MHz
PtMP Mode 10/20/30/40 MHz
Polarization Dual Linear
Enclosure Outdoor UV Stabilized Plastic
Mounting Pole-Mount (Kit Included), Wall-Mount
Wind Loading 45.4 N @ 200 km/h (10.2 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature -40 to 80° C (-40 to 176° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
RoHS Compliance Yes
Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test IEC 68-2-6
Temperature Shock Test IEC 68-2-14
UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5


Datasheet

PDF File Ubiquiti Networks NBE-5AC-GEN2-US 5GHz NanoBeam ac Gen2 19dBi US
