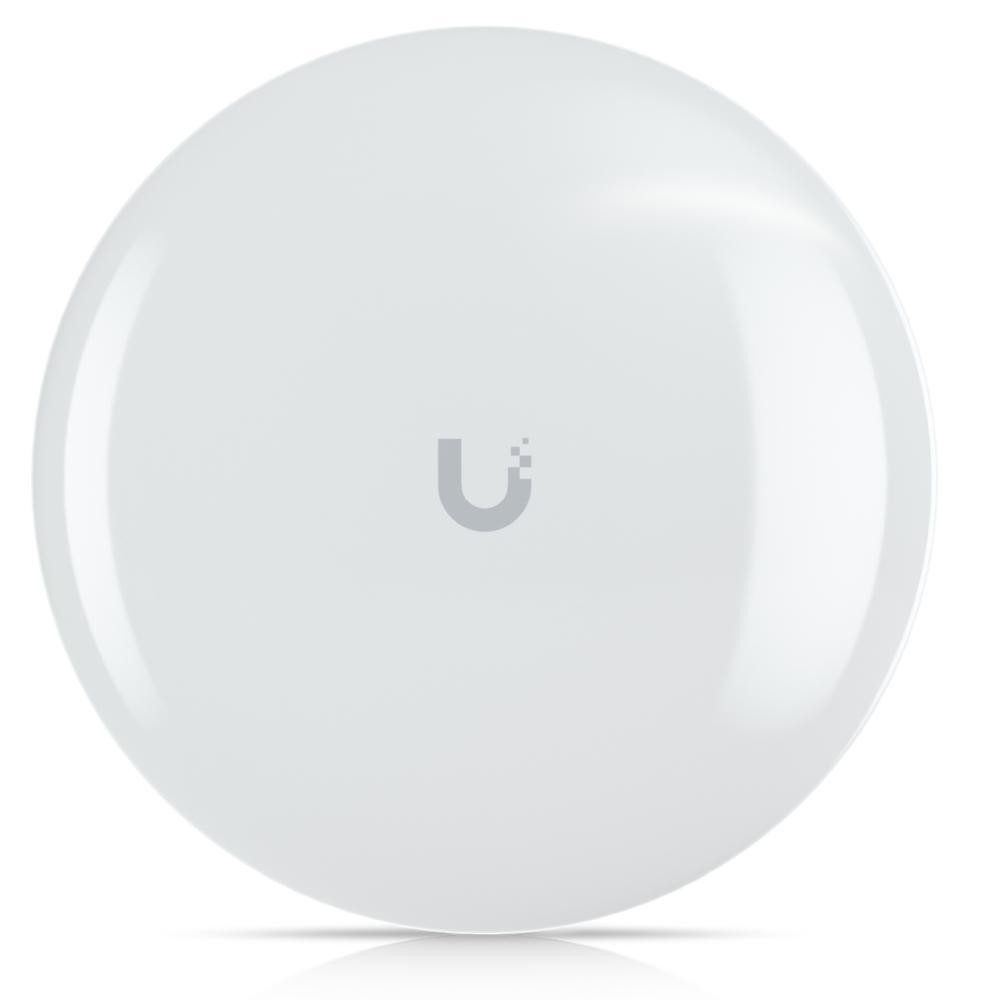

Ubiquiti UDB-Pro-US UniFi Device Bridge Pro US


Product Highlights
  • (2) GbE ports with (1) PoE output for PoE devices
  • Powered using PoE/PoE+*
  • Pole mounting
  • Weatherproof (outdoor exposed)
  • Sold as a single unit

    • Model#: UDB-Pro-US

    Sku: IT6354



    MSRP: $239.99

    In Stock

    Your Price: $239.99






    MODEL: UDB-Pro-US

    Device Bridge Pro

    5 GHz wireless bridge with PoE output that connects at 5+ km distances or seamlessly uplinks to UniFi WiFi.

    Link at 5+ km distances with a point-to-point connection to another Device Bridge Pro, or uplink seamlessly with UniFi WiFi Auto-Link

    Features:

    • (2) GbE ports with (1) PoE output for PoE devices
    • Powered using PoE/PoE+*
    • Pole mounting
    • Weatherproof (outdoor exposed)
    • Sold as a single unit

    Specifications UDB-Pro-US

    Dimensions Ø189.5 x 64.3 mm (Ø7.4 x 2.5")
    Weight Without mount: 431 g (1 lb)
    With mount 515 g (1.1 lb)
    Enclosure material UV-resistant polycarbonate
    Mount material UV-stabilized polycarbonate, stainless steel
    Pole mount diameter 20–53.1 mm (0.8–2.1") on pipe outer diameter
    Wind loading 69 N at 200 km/h (15.5 lbf at 125 mph)
    Weatherproofing IPX6
    Hardware
    Networking interface (2) GbE RJ45 ports
    Management interface Ethernet
    WiFi
    PoE interface (1) PoE in (PoE output not used)
    (1) Passive PoE output
    Power method PoE
    PoE+ (Required for PoE output)
    Power supply UniFi PoE switch
    48V, 0.32A PoE adapter (Included)
    Supported volatage range 42.5–57V DC
    Max. power consumption 9W
    Max. TX power
    2.4 GHz
    5 GHz
    6 GHz    		 –
    25 dBm
    –
    Max. data rate
    2.4 GHz
    5 GHz
    6 GHz        		 –
    867 Mbps (BW80)
    –
    MIMO
    2.4 GHz
    5 GHz
    6 GHz    		 –
    2 x 2
    –
    Antenna gain
    2.4 GHz
    5 GHz
    6 GHz    		 –
    19 dBi
    –
    Antenna Internal
    Range 5+ km
    LEDs Power, Ethernet, (4) signal strength
    Button
    Factory reset
    Mounting Pole (Included)
    Ambient operating temperature -40 to 60° C (-40 to 140° F)
    Ambient operating humidity 5 to 95% noncondensing
    Certifications CE, FCC, IC
    Software
    WiFi standards 802.11a/n/ac
    Wireless security WPA2 AES (Always On)
    Operating frequency* US/CA U-NII-1 5150 - 5250 MHz
    U-NII-2A 5250 - 5350 MHz
    U-NII-2C 5470 - 5725 MHz
    U-NII-3 5725 - 5850 MHz
    Worldwide 5150 - 5875 MHz *Depends on regulatory region.
    Channel bandwidth 20/40/80 MHz
    Max. conducted TX power 25 dBm (Combined)
    Modulation BPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (2⁄3), 64QAM (¾), 64QAM (5⁄6), 256QAM (¾), 256QAM (5⁄6)
