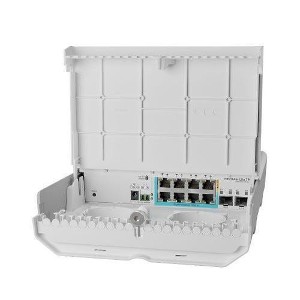

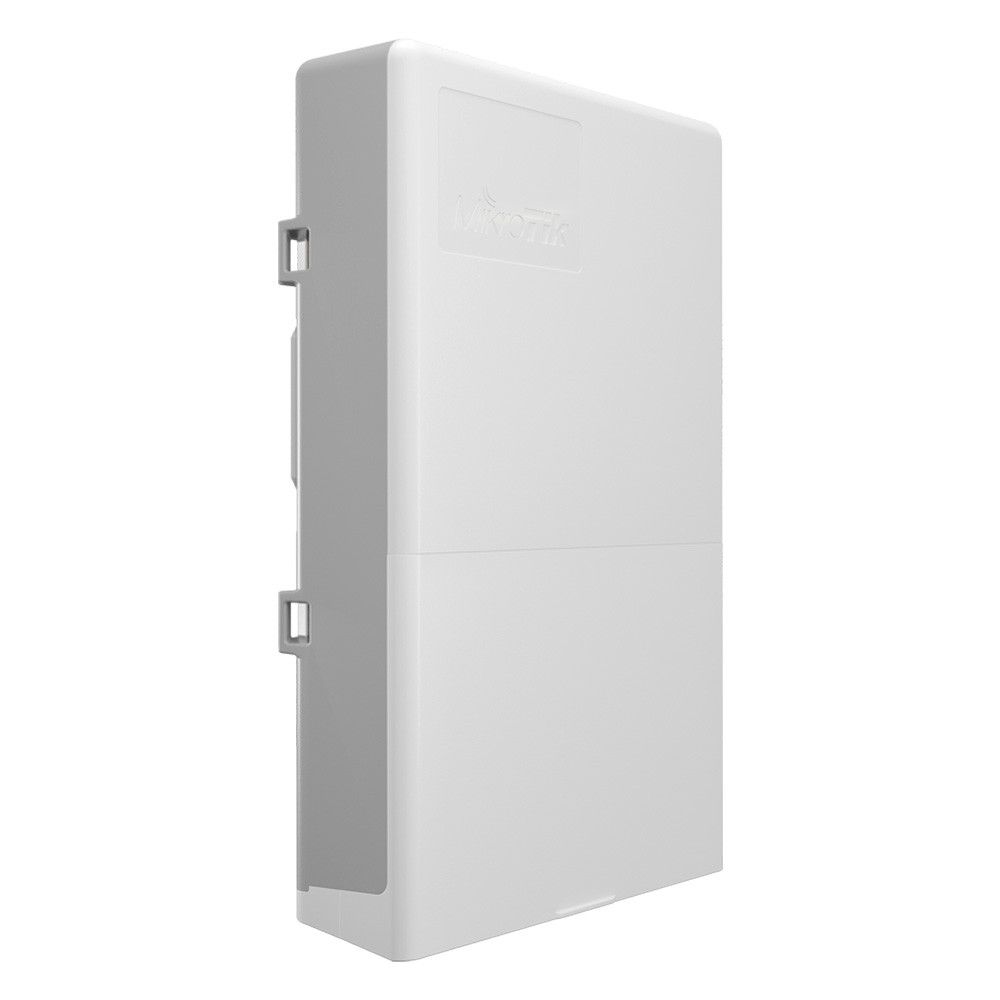

MODEL: CSS610-1Gi-7R-2S+OUT

netPower Lite 7R 8-Port Outdoor Switch with 7-Port Reverse PoE 2-Port SFP+

With netPower Lite 7R switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of our GPEN concept – aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments.

With this switch you won’t have to worry about power issues, as there are many options. netPower Lite 7R has 7 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Ethernet port 8 can power other PoE capable devices with the same voltage as applied to the unit. There is also a DC jack and a 2-pin terminal for alternative powering.

The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower Lite 7R has a non-blocking throughput of 28 Gbps, switching capacity of 56 Gbps and forwarding rate of 41.7 Mpps.



Features:

• (7) Reverse PoE Gigabit Ethernet Ports

• Durable Weatherproof Enclosure
• DC Jack & 2-Pin Terminal for Alternative Powering
• Can be powered by a battery
• (2) 10G SFP+ Ports
• Non-blocking throughput- 28 Gbps
• Switching Capacity- 56 Gbps
• Forwarding Rate- 41.7 Mpps
• Number of 1G Ethernet Ports: 8
• Number of 10G SFP+ Ports: 2
• SwOS
• PoE-In: Passive PoE
• Poe-In Input Voltage: 12-57Vv
• PoE-Out Ports: Ether8
• Number of DC Inputs: (9) 7x PoE-In, 2-pin Terminal, DC Jack
