USP-PDU-PRO
USP-PDU-PRO picture 3

Ubiquiti

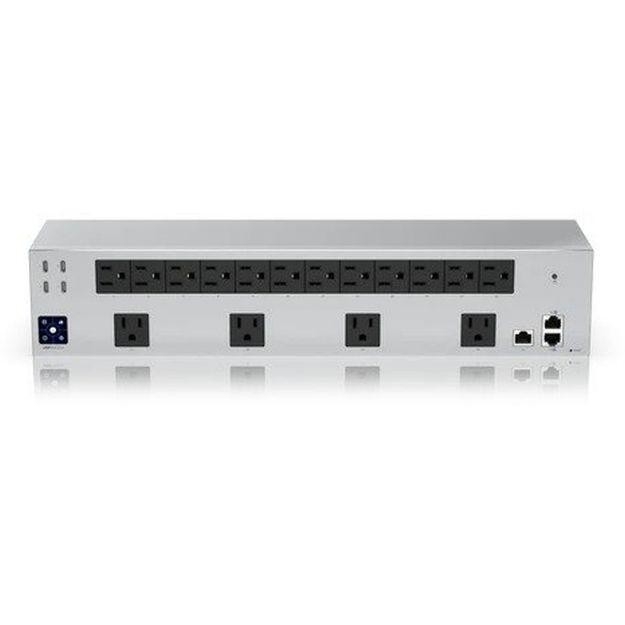

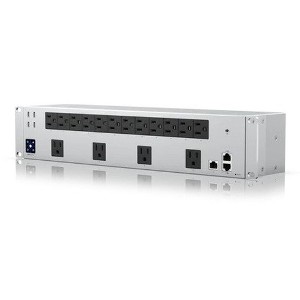

Ubiquiti Networks USP-PDU-Pro UniFi Power Distribution Professional


Model#: USP-PDU-PRO

Sku: IT6325



MSRP: $349.99

In Stock

Your Price: $349.99






MODEL: USP-PDU-PRO

UniFi Power Distribution Pro

Designed to supply power to an entire rack-mounted UniFi system and remotely manage each connection.

Note. Virtual router redundancy support coming soon. Requires multiple UniFi Gateways.

Features:

  • (16) Remotely resettable outlets
  • (4) USB-C ports
  • 1.3" LCM touchscreen
  • Virtual Router Redundancy

Ubiquiti Networks USP-PDU-HD

UniFi Power Distribution Hi-Density

Power distribution unit designed to support large, rack-mounted UniFi hardware deployments.

Compatibility: UACC-Rack-42U

Features:

  • (24) Remote-reset outlets
  • (4) USB-C ports
  • 3 m power cord with NEMA L5-30 plug
  • 1.3" auto-rotating LCM touchscreen
  • Compatible with 36U racks and taller

Specifications USP-PDU-Pro

Dimensions 442.4 x 87.4 x 106 mm (17.4 x 3.4 x 4.2")
Weight Without mount: 3.5 kg (7.6 lb) With mount: 3.7 kg (8.2 lb)
Enclosure Material SGCC steel
Management Ethernet
Networking Interface (1) 100 MbE RJ45 port (3) GbE RJ45 ports
Power Method 125V AC, 15A Max., 50/60 Hz
Power Supply AC/DC internal, 40W
Max. Power Consumption 125V AC: 1,875W
Power Output (16) Power control outlets, 125V AC, 15A Max., 50/60Hz (1,875W Max. total) (4) USB-C ports, 2A Max. per port (4A/20W Max. total)
Display 1.3" touchscreen
Buttons (1) Factory-reset (1) Circuit breaker
Ambient Operating Temperature 0 to 40° C (32 to 104° F)
Ambient Operating Humidity 10 to 90% noncondensing
NDAA Compliant ?
Certifications FCC, IC

Specifications USP-PDU-HD

Dimensions 1485 x 55 x 56 mm (58.5 x 2.17 x 2.2")
Weight 6.3 kg (13.9 lb)
Enclosure Material SGCC steel
Management Ethernet
Networking Interface

(1) 10/100 MbE RJ45 port

(3) GbE RJ45 ports for network redundancy
Power Method 100—125V AC, 30A Max. (Derated to 24A), 50/60 Hz (NEMA L5-30P)
Power Output

(24) Power control outlets:
Per Bank (Bank1: port 1 to 12, Bank2: port 17 to 28):
Rating output current: 12A at 125V AC (1500W)
Max. output current: 15A at 125V AC (1875W)
Total:
Rating output current: 24A at 125V AC (3000W)
Max. output current: 30A at 125V AC (3750W)

(4) USB type C ports:
5VDC 2A per port, total 20W Max. power
ESD/EMP Protection Air: ± 8kV; contact: ± 4kV
Display 1.3" touchscreen
Buttons (1) Factory-reset (1) Circuit breaker
Ambient Operating Temperature 0 to 40° C (32 to 104° F)
Ambient Operating Humidity 10 to 90% noncondensing
NDAA Compliant ?
Certifications FCC, IC
Application Requirements Mobile Apps
Mobile Apps UniFi iOS™ and 10.11.0 and later
Android™ 10.11.0 and later
UniFi Network Version 8.0.24 and later
