Ubiquiti UCG-Fiber Cloud Gateway Fiber
Product Highlights
Model#: UCG-Fiber
Sku: IT6323
MSRP: $333.99
Out of stock
Your Price: $333.99
MODEL: UCG-Fiber
Ubiquiti UniFi Cloud Gateway Fiber
Desktop 10G Cloud Gateway with integrated PoE switch, selectable NVR storage, and full UniFi application support.
Features:
- Includes full UniFi application suite for device management
- Manages 50+ UniFi devices and 500+ clients
- 5 Gbps routing with IDS/IPS

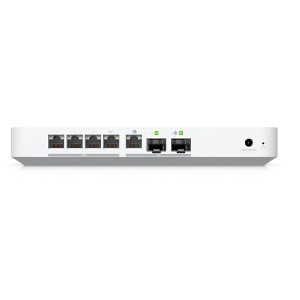

- (1) 10G SFP+ and (1) 10 GbE RJ45 WAN port
- (1) 10G SFP+ LAN port
- Integrated 4-port switch with (1) PoE+ port
- NVMe SSD storage slot*
Specifications UCG-Fiber
| Dimensions | 212.8 x 127.6 x 30 mm (8.4 x 5 x 1.2") |
| Weight | 696 g (1.5 lb) |
| Enclosure material | Polycarbonate |
| Hardware | |
| Processor | Quad-core ARM® Cortex®-A73 at 2.2 GHz |
| System memory | 3 GB DDR4 |
| NVR storage |
Selectable NVMe SSD up to 2 TB* *No Storage option does not include NVMe SSD. Third-party SSD installation requires a tray accessory. |
| Management interface | Ethernet Bluetooth |
| Networking interface |
LAN: WAN: |
| PoE interface | (1) PoE+ (Pair A 1, 2+; 3, 6-) |
| IDS/IPS throughput | 5 Gbps |
| Power method | AC power adapter, 54V DC, 1.1A |
| Supported voltage range | 100–240V AC |
| Max. power consumption | 29.4W (Excluding PoE output) |
| PoE budget | 30W |
| Max. PoE wattage per port by PSE | 30W |
| Voltage range PoE mode | 50—57V DC |
| ESD/EMP protection | Air: ± 4kV, contact: ± 8kV |

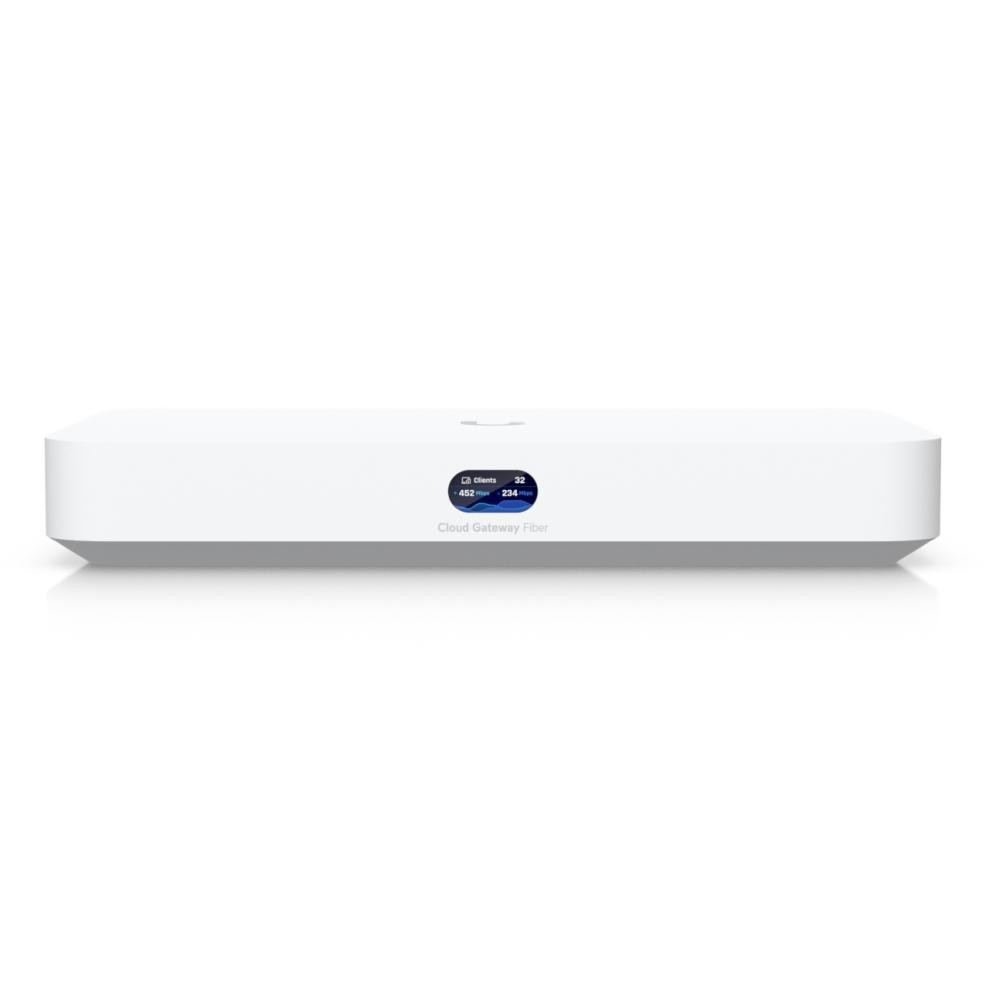

| LCM display | 0.96" status display |
| Button | Factory reset |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Gateway Features | |
| Performance | Redundant WAN with failover and load balancing WiFi QoS with UniFi APs Application, domain, and country-based QoS Application and device type identification Additional internet failover with LTE Backup Internet quality and outage reporting |
| Next-generation security | Application-aware firewall rules Signature-based IPS/IDS threat detection Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall |
| Advanced networking | License-free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport and Identity VPN Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IGMP proxy IPv6 ISP support |
| LEDs | |
| Ethernet | Green: Link/activity Amber: PoE powered |
| SFP+ | Green: Link/activity |
