USP-PDU-HD
USP-PDU-HD picture 3 USP-PDU-HD picture 4

Ubiquiti

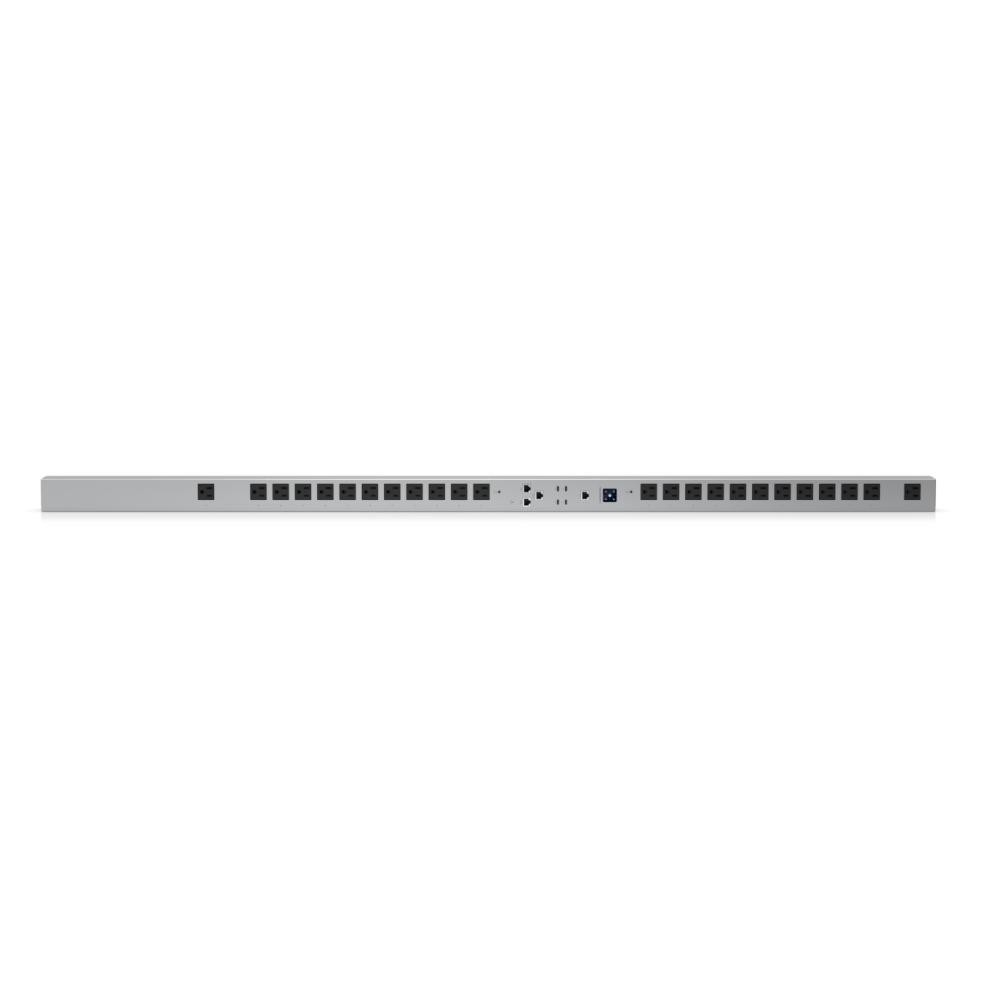

Ubiquiti USP-PDU-HD Power Distribution Hi-Density


Product Highlights
  • (24) Remote-reset outlets
  • (4) USB-C ports
  • 3 m power cord with NEMA L5-30 plug
  • 1.3 LCM touchscreen with automation rotation
  • Compatible with 36U racks and taller

    • Model#: USP-PDU-HD

    Sku: IT6321



    MSRP: $1,189.99


    Out of stock

    Your Price: $1,189.99


    MODEL: USP-PDU-HD

    UniFi Power Distribution Pro

    Designed to supply power to an entire rack-mounted UniFi system and remotely manage each connection.

    Note. Virtual router redundancy support coming soon. Requires multiple UniFi Gateways.

    Features:

    • (16) Remotely resettable outlets
    • (4) USB-C ports
    • 1.3" LCM touchscreen
    • Virtual Router Redundancy

    Ubiquiti Networks USP-PDU-HD

    UniFi Power Distribution Hi-Density

    Power distribution unit designed to support large, rack-mounted UniFi hardware deployments.

    Compatibility: UACC-Rack-42U

    Features:

    • (24) Remote-reset outlets
    • (4) USB-C ports
    • 3 m power cord with NEMA L5-30 plug
    • 1.3" auto-rotating LCM touchscreen
    • Compatible with 36U racks and taller

    Specifications USP-PDU-Pro

    Dimensions 442.4 x 87.4 x 106 mm (17.4 x 3.4 x 4.2")
    Weight Without mount: 3.5 kg (7.6 lb) With mount: 3.7 kg (8.2 lb)
    Enclosure Material SGCC steel
    Management Ethernet
    Networking Interface (1) 100 MbE RJ45 port (3) GbE RJ45 ports
    Power Method 125V AC, 15A Max., 50/60 Hz
    Power Supply AC/DC internal, 40W
    Max. Power Consumption 125V AC: 1,875W
    Power Output (16) Power control outlets, 125V AC, 15A Max., 50/60Hz (1,875W Max. total) (4) USB-C ports, 2A Max. per port (4A/20W Max. total)
    Display 1.3" touchscreen
    Buttons (1) Factory-reset (1) Circuit breaker
    Ambient Operating Temperature 0 to 40° C (32 to 104° F)
    Ambient Operating Humidity 10 to 90% noncondensing
    NDAA Compliant ?
    Certifications FCC, IC

    Specifications USP-PDU-HD

    Dimensions 1485 x 55 x 56 mm (58.5 x 2.17 x 2.2")
    Weight 6.3 kg (13.9 lb)
    Enclosure Material SGCC steel
    Management Ethernet
    Networking Interface

    (1) 10/100 MbE RJ45 port

    (3) GbE RJ45 ports for network redundancy
    Power Method 100—125V AC, 30A Max. (Derated to 24A), 50/60 Hz (NEMA L5-30P)
    Power Output

    (24) Power control outlets:
    Per Bank (Bank1: port 1 to 12, Bank2: port 17 to 28):
    Rating output current: 12A at 125V AC (1500W)
    Max. output current: 15A at 125V AC (1875W)
    Total:
    Rating output current: 24A at 125V AC (3000W)
    Max. output current: 30A at 125V AC (3750W)

    (4) USB type C ports:
    5VDC 2A per port, total 20W Max. power
    ESD/EMP Protection Air: ± 8kV; contact: ± 4kV
    Display 1.3" touchscreen
    Buttons (1) Factory-reset (1) Circuit breaker
    Ambient Operating Temperature 0 to 40° C (32 to 104° F)
    Ambient Operating Humidity 10 to 90% noncondensing
    NDAA Compliant ?
    Certifications FCC, IC
    Application Requirements Mobile Apps
    Mobile Apps UniFi iOS™ and 10.11.0 and later
    Android™ 10.11.0 and later
    UniFi Network Version 8.0.24 and later
