Ubiquiti

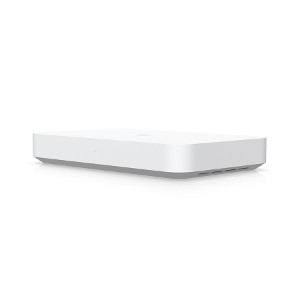

Ubiquiti UXG-FIBER UniFi Gateway Fiber


Product Highlights
  • Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
  • 5 Gbps routing with IDS/IPS
  • (1) 10G SFP+ and (1) 10 GbE RJ45 WAN port
  • (1) 10G SFP+ LAN port
  • Integrated 4-port switch with (1) PoE+ port

    • Model#: UXG-FIBER

    Sku: IT6318



    MSRP: $339.99

    In Stock

    Your Price: $339.99






    MODEL: UXG-FIBER

    UniFi Gateway Fiber

    Desktop 10G independent gateway with integrated 4-port 2.5 GbE switch.

    Features:

    • Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
    • 5 Gbps routing with IDS/IPS
    • (1) 10G SFP+ and (1) 10 GbE RJ45 WAN port
    • (1) 10G SFP+ LAN port
    • Integrated 4-port switch with (1) PoE+ port

    Specifications UXG-Fiber

    Mechanical
    Dimensions 212.8 x 127.6 x 30 mm (8.4 x 5 x 1.2")
    Weight 605 g (1.3 lb)
    Enclosure material Polycarbonate
    Hardware
    Processor Quad-core ARM® Cortex®-A73 at 2.2 GHz
    Memory information 2 GB DDR4
    Management interface Ethernet
    Bluetooth

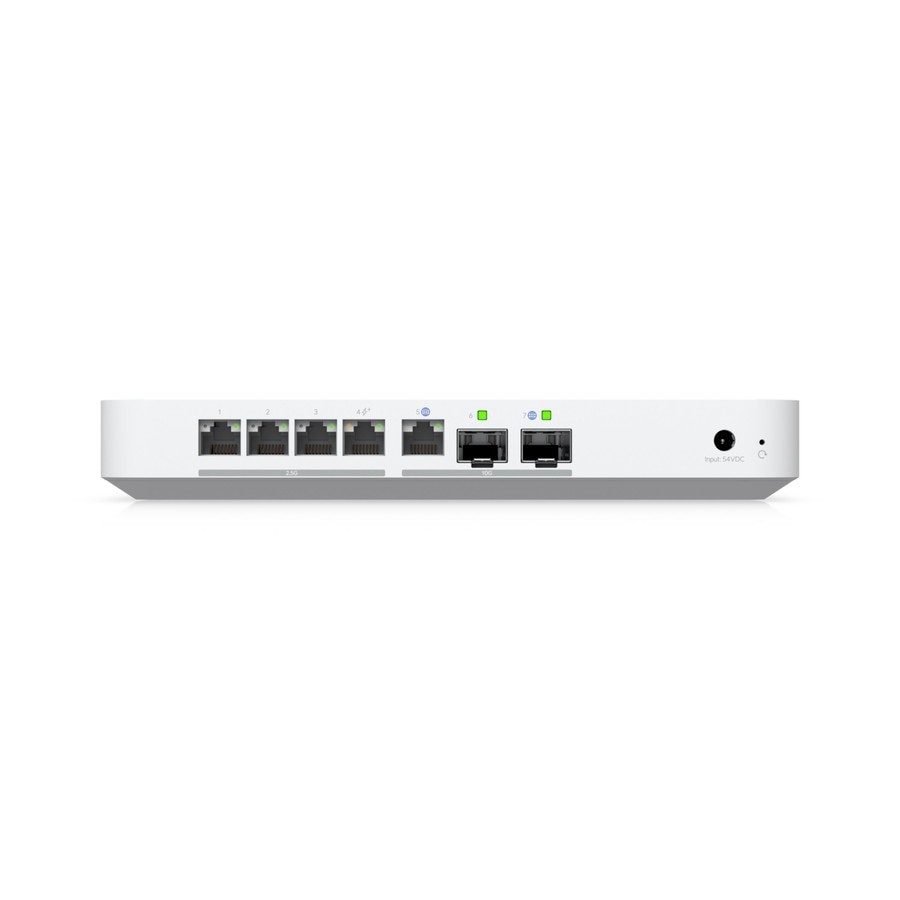

    Networking interface

    LAN:
    (1) 10G SFP+ port
    (4) 2.5 GbE RJ45 ports

    WAN:
    (1) 10G SFP+ port
    (1) 10 GbE RJ45 port
    PoE interface (1) PoE+ (Pair A 1, 2+; 3, 6-)
    IDS/IPS throughput 5 Gbps
    Power method AC power adapter, 54V DC, 1.1A
    Supported voltage range 100–240V AC
    Max. power consumption 25W (Excluding PoE output)
    PoE budget 30W
    Max. PoE wattage per port by PSE 30W
    Voltage range PoE mode 50—57V DC
    ESD/EMP protection Air: ± 4kV, contact: ± 8kV
    Button (1) Factory reset
    Ambient operating temperature 0 to 40° C (32 to 104° F)
    Ambient operating humidity 5 to 95% noncondensing
    Certifications CE, FCC, IC
    Gateway Features
    Performance WiFi QoS with UniFi APs
    Application, domain, and country-based QoS
    Application and device type identification
    Internet quality and outage reporting
    Next-generation security Application-aware firewall rules
    Signature-based IPS/IDS threat detection
    Content, country, domain, and ad filtering
    VLAN/subnet-based traffic segmentation
    Full stateful firewall
    Advanced networking License-free SD-WAN*
    WireGuard, L2TP and OpenVPN server
    OpenVPN client
    OpenVPN and IPsec site-to-site VPN
    Policy-based WAN and VPN routing
    DHCP relay
    Customizable DHCP server
    IPv6 ISP support
    LEDs
    Status White/blue
    Ethernet Green: Link/activity
    Amber: PoE powered
    SFP+ Green: Link/activity
