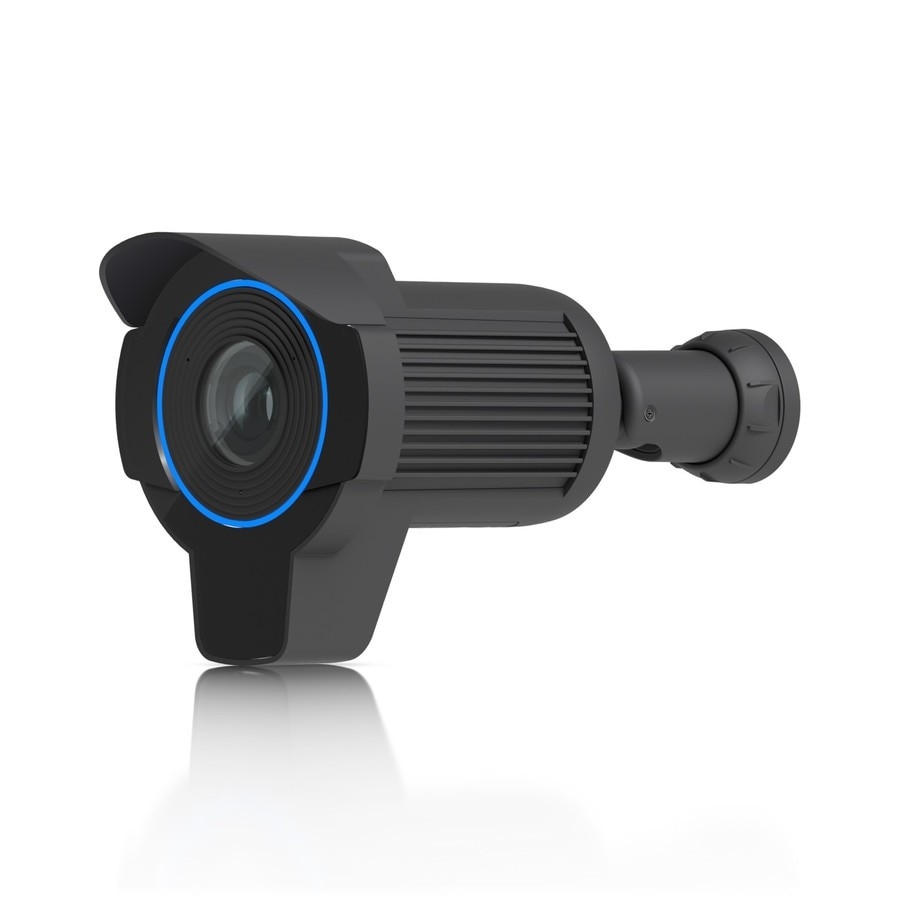

Ubiquiti UVC-AI-LPR-B AI LPR 4K Camera with 3x Optical Zoom
Model#: UVC-AI-LPR-B
Sku: IT6317
MSRP: $609.99
In Stock
Your Price: $609.99
MODEL: UVC-AI-LPR-B
AI LPR 4K Camera with 3x Optical Zoom
Specialized 4K camera with 3x optical zoom and long-range IR night vision optimized for recognizing license plates on vehicles moving up to 90 km/h.
Features:
- 4K (8MP) video resolution
- 3x optical zoom
- 15 m (50 ft) IR capture distance
- Advanced LPR: high-speed detections at night*
- Cover up to two lanes of traffic
- Record audio with integrated microphones
- Weatherproof (outdoor exposed)
Specifications UVC-AI-LPR-B
| Dimensions | 130 x 151.4 x 302.9 mm (5.1 x 6 x 11.9") |
| Weight | 1.5 kg (3.3 lb) |
| Enclosure material | Aluminum alloy, polycarbonate |
| Weatherproofing | IP66 |
| Resistance | IK04 |
| Pole mount diameter | 38–50 mm (1.5–2") on pipe outer diameter (Metal strap torque: 6Nm) |
| Cable jacket enclosure dimensions | Ø20 x 70.6 mm (0.8 x 2.8") |
| Cable jacket enclosure material | Thermoplastic elastomer, polycarbonate, silicone rubber |
| Cable length | 30 cm (1 ft) |
| Cable diameter | 4.5 mm (0.2") |
| Cable jacket material | Thermoplastic elastomer |
| Cable connector type | RJ45 |
| Optics | |
| Sensor | 1/1.8" 8MP |
| Lens | F 4.1–12.3 mm; ƒ/1.53–ƒ/3.3 |
| View angle | Wide: H 109.9°, V 60°, D 127.7° Tele: H 35°, V 19.8°, D 40° |
| LPR night mode | LPR optimization filter |
| IR capture distance | 15 m (50 ft) |
| Video | |
| Resolution | 8MP 3840 x 2160 (16:9) |
| Max. frame rate | 30 FPS |
| Image settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| System | |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Networking interface | GbE RJ45 port |
| Max. power consumption | 25.5W |
| Power method | PoE+ |
| Supported voltage range | 42.5–57V DC |
| LED | R/G/B/W |
| Button | Factory reset |
| Expansion slot | Micro SD memory card* *Requires a memory card with at least 64 GB of storage. |
| Mounting | Wall, pole |
| Ambient operating temperature | -20 to 50° C (-4 to 122° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Audio | |
| Microphone | Yes (Can be disabled) |
| Speaker | No |
| Software | |
| Web application | UniFi Protect |
| Mobile app | UniFi Protect iOS™ and Android™ |
