Fanvil CA400 All-in-One Conference Solution
Model#: CA400
Sku: IT6271
MSRP: $399.00
In Stock
Your Price: $399.00
MODEL: CA400
CA400 All-in-One Conference Solution

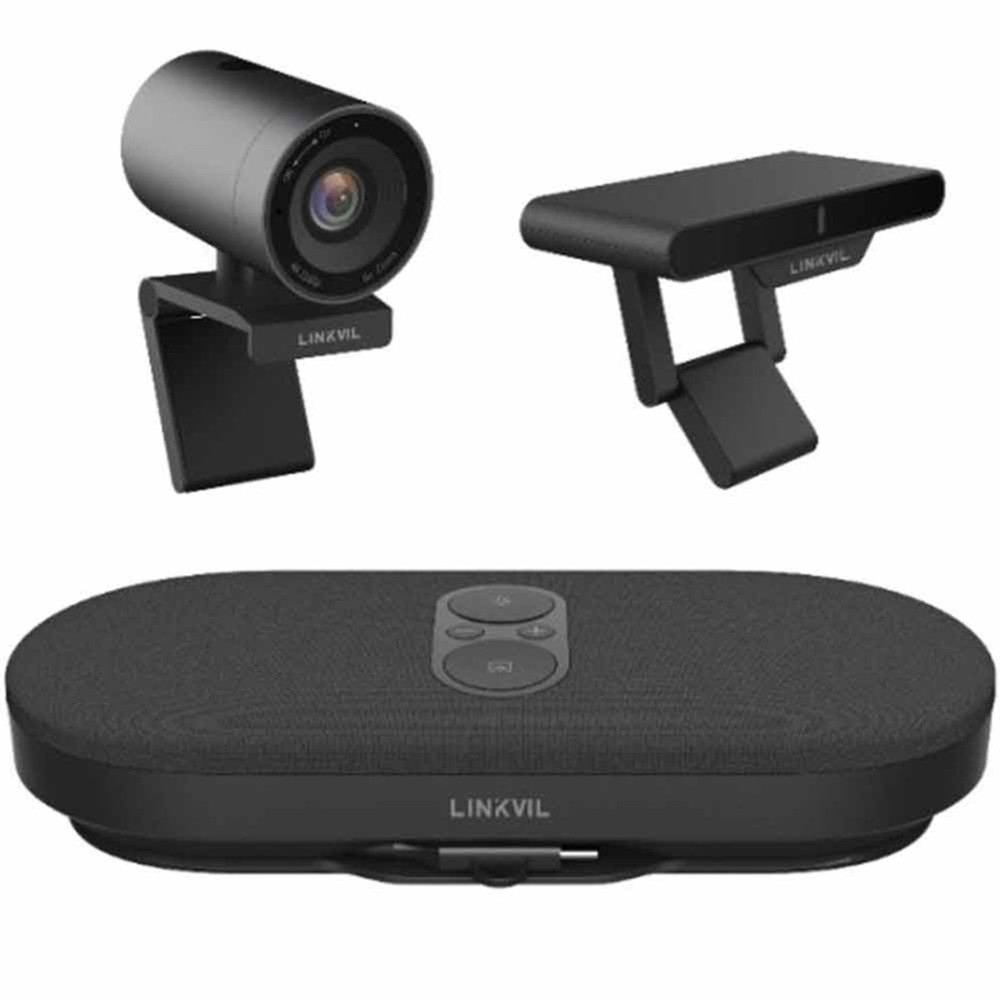

Designed for small and medium meeting rooms up to 32m², the CA400 system consists of a unique speakerphone MS10, that supports wireless screen sharing, a receiver RC10, and a USB camera CM70.
The CA400 achieves far-field voice pickup, delivering HD crystal-clear sound. Participants can also wireless cast at 4K and access FHD video streaming.
Highlights
- 8 array mics
- 3W vocal enhanced speaker
- Wireless 4KUHDscreensharing
- UVC camera
- BYOD device
- 1/2.8-inch 4KSonysensor
- Auto-framing
- 5x e-PTZ
- Universal stand
- Magnetic attraction
- Built-in camera lens cover
Technical Description
- Product code: CA400
- Max. Screen Share Output Resolution:1920x1080 @30FPS
- Built-in: 8 MEMS Microphones for 360° pickup
- Pick-up Range: 4M
- Signal to Noise Ratio(SNR): 64.5dB(A)
- Sensitivity: -26dBFS@1kHz(0dB=1V/Pa)
- Acoustic Overload Point: 119dB SPL <10%@1kHz
- Frequency: 20Hz-10KHz
- Duplex
- Beamforming
- Automatic Noise Suppression
- Acoustic Echo Cancellation
- Automatic Gain Control
- Speaker: 4? 3W
- Speaker Size: 50mm
- Sensitivity: 1KHz 85 dB ± 3dB @1m, 3W
- Signal to Noise Ratio (SNR) : 50dB
- Frequency Range: 200Hz- 10KHz MAX 5%
- Max. Sound Pressure Level: 85dB SPL@1m @3W
- Background Noise: <30dB
- Total harmonic Distortion: 200Hz-10KHz MAX 5%
- WI-FI
- Protocol: 802.11 a/n/ac
- Wireless Transmission Protocol: Quick UDP Internet Connections
- Transmission Distance: Up to 10M
- Frequency bands and the maximum transmitted power (For EU) :
- 5180-5320MHz (Wi-Fi 5GHz), Max 20dBm
- 5500-5700MHz (Wi-Fi 5GHz), Max 20dBm
- USB Camera
- Sensor Type: IMX 415(1/2.8') 3840*2160
- FOV: DFOV 118.5°/HFOV 109.9°/VFOV74.6°
- Auto Framing: Auto
- F/No: F2.5
- Zooming:5x digital zoom
- Maximum Resolution: USB3.0:3840*2160p30/USB2.0:1920*1080 p30
- Security Protection: Manual Camera LensCover
Datasheet
