i10S

Fanvil

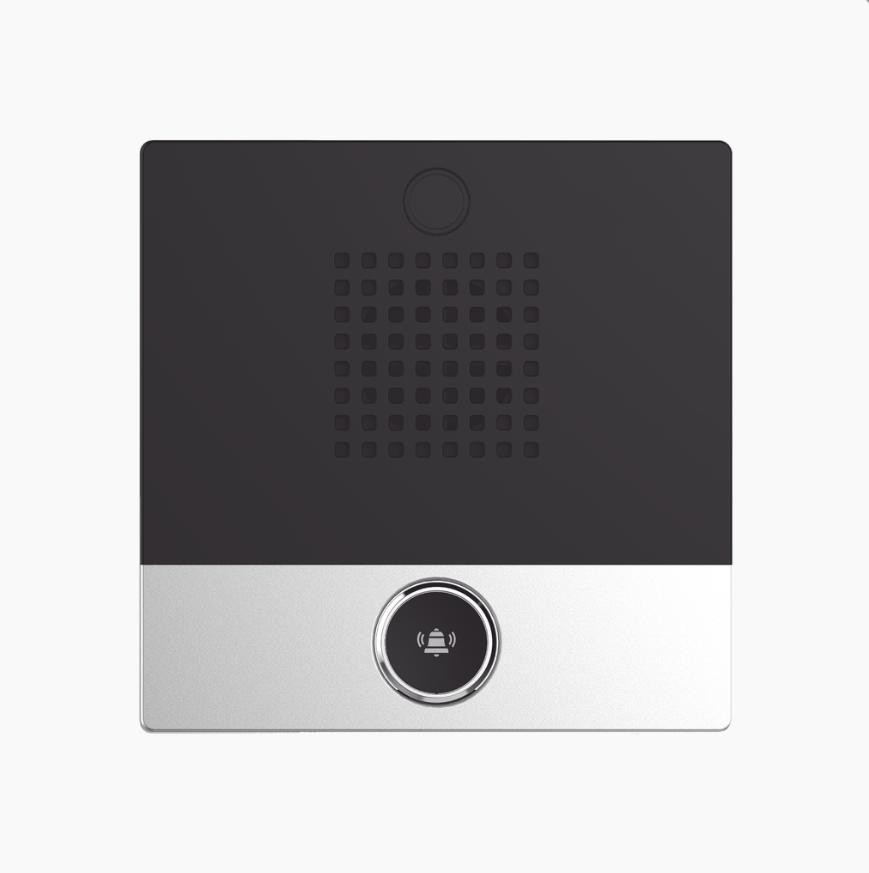

Fanvil i10S Standard SIP Mini Audio Intercom


Model#: i10S

Sku: IT6222



MSRP: $90.00

In Stock

Your Price: $69.99






MODEL: i10S

Fanvil i10S is an indoor SIP mini-intercom used for access control and audio functionality. This is a perfect intercom for office entrances, apartment entrances, nursing homes and more. This IP intercom is easy-to-use and its one-touch call button connects the user directly to an extension. Full-duplex audio allows for clear communication when talking through this device.

i10S is IP54 rated, protecting it from dust and water, making it a great addition for indoor environments. This device runs the SIP protocol, giving you a broad choice of platforms to use that include many of the major VoIP providers. The easy usability and ultra-compatible protocol make this a great addition to pre-existing systems. Fanvil includes professional security and networking features like 802.1x authentication, Open VPN support and DSCP Quality of Service control.

Highlights

  • Easy installation and configuration.
  • IP54 waterproof and dustproof.
  • -20 °C to 50 °C wide range temperature adaptability.
  • Built-in 1W speaker and Acoustic Echo Canceller (AEC).
  • Built-in 1short circuit input/output interface.
  • Functionality including security, intercom and broadcasting.
  • Built-in HD camera and with backlight compensation function (for i10SV).
  • Adaptive 10/100 Mbps network port, integrated PoE
  • Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc.

Technical Description

  • Generic
    • 2 SIP lines
    • Speed dial
    • Linkage with IP camera to realize video intercom
    • Oral announcement of the IP address(in English)
    • Switch signal input and output
    • Support programmable DSS key ports
    • PoE enabled
  • Device Function
    • Auto-answering
    • Programmable DSS keys
    • Through web page volume adjustment
    • Network time synchronization
    • Time plan (task management)
    • Dynamic multicast function
    • Incoming call multicast
    • HTTP API
    • Action URL / Active URI
  • Call Functions
    • Call out / answer / reject
    • Call waiting
    • Intercom, Multicast
    • Speed dial
    • Anonymous call (Hide caller ID)
  • Audio
    • Narrowband codec: G.711A/U, G.729A/B
    • Wideband codec: G.722, Opus
    • Full-duplex hands-free speakerphone with AEC
    • DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)
  • Network
    • Physical: 10/100 Mbps Ethernet
    • IP mode:IPv4/IPv6/IPv4&IPv6
    • IP configuration: Static IP / DHCP / PPPoE
    • VPN: L2TP / OpenVPN
  • Protocols
    • SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
    • RTP/RTCP/SRTP
    • STUN
    • DHCP
    • IPv6
    • PPPoE
    • L2TP
    • OpenVPN
    • SNTP
    • FTP/TFTP
    • HTTP/HTTPS
    • TR-06
  • Deployment & Management
    • Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
    • Web management portal
    • Web-based packet dump
    • Configuration export / import
    • Firmware upgrade
    • Syslog
  • Physical Specifications
    • DSS Keys, follow model
      • i10S/i10SV: 1 DSS key (speed dial key)
      • i10SD: 2 DSS keys
    • RJ45 port x1: connect the network
      • WAN port: connect the network, support PoE
    • Short circuit input and output port x1 (built-in relay)
    • Relay: MAX DC30V / 1A, AC125V / 0.5A
    • Port: terminal socket
    • DC port: DC power input
    • DC power input: DC12V / 1A
    • Port: terminal socket
    • PoE level: Class 3
    • Protection level: IP54
    • Housing material: ABS
    • Installation: Wall-mounted
    • Working temperature: -20?~ 50?
    • Storage temperature: - 30?~ 60?
    • Working humidity: 10~95%

Datasheet

PDF File Fanvil i10S Standard SIP Mini Audio Intercom
