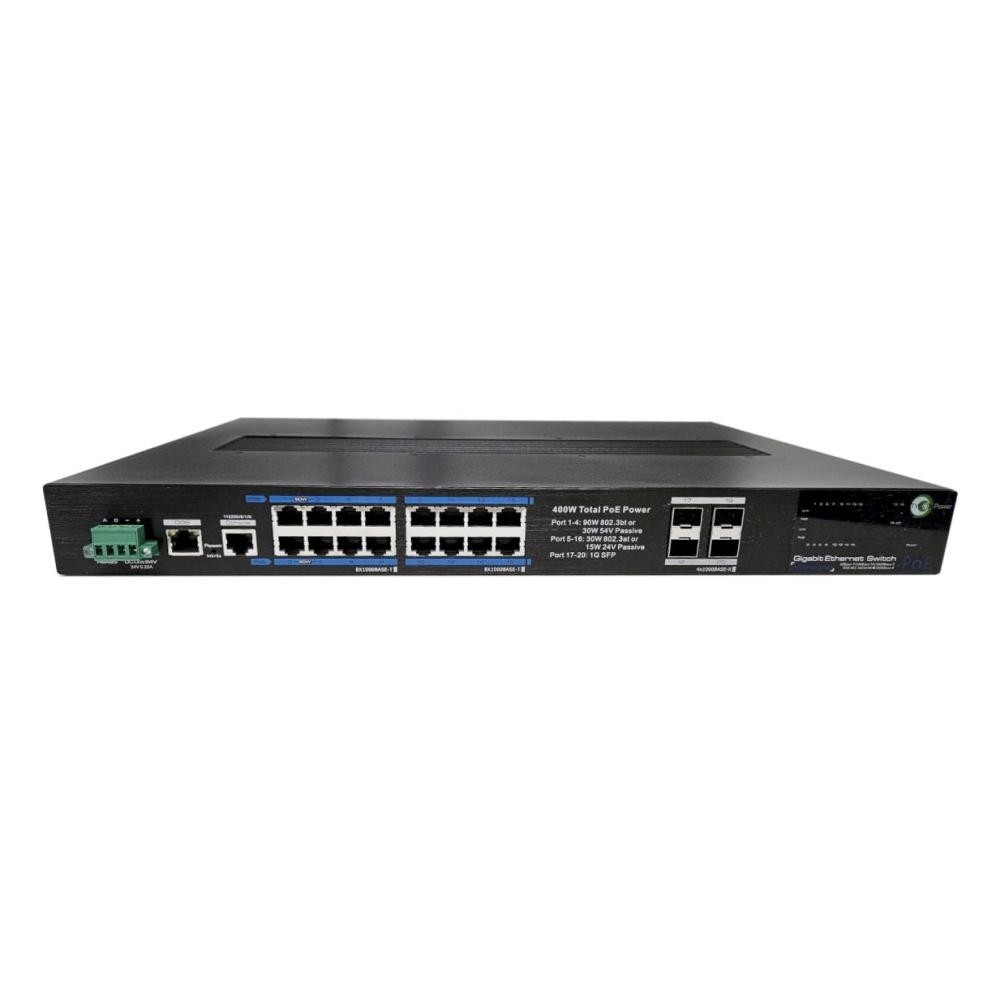

MODEL: TP-SW16GBT/AT/PSV-U

The TP-SW16GBT/AT/PSV-U Power over Ethernet (PoE) 20-Port Gigabit Switch from Tycon® delivers high-speed performance with advanced Layer 3 Ethernet management. Moreover, it is designed for flexibility and efficiency, empowering users to configure PoE ports to meet diverse networking needs:

• 4x 802.3BT 90W or 54V 30W Passive PoE Ports
• 12x 802.3AT or 24V 15W Passive PoE Ports
• 4x 1.0/2.5Gb SFP Fiber Ports

Thanks to this design, users can seamlessly power multiple devices through a single PoE switch. The four SFP ports support standard single-mode or multi-mode fiber transceivers, as well as RJ45 transceivers, offering an additional 4 Ethernet ports for expanded connectivity.

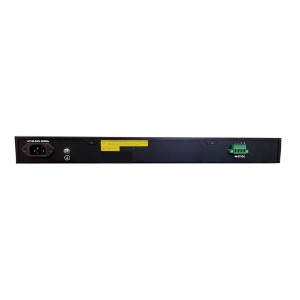

Additionally, the switch operates on dual power inputs, accepting 120/240V AC or 48-57V DC, with the DC input serving as either a primary or backup power source. With a total PoE output of 400W, it ensures reliable power for connected devices.

Advanced Management and Security Features

When it comes to management, this switch offers exceptional flexibility. Users can control PoE ports via an intuitive user interface or the console port, with access provided through web browsers, CLI, TELNET, SSH, or SNMP. Furthermore, advanced security protocols, including SSH, safeguard the command interface for secure operations.

To enhance reliability, key features such as PoE Watchdog automatically detect and restart unresponsive devices, while Q-PoE (Quick PoE) powers devices instantly upon startup, eliminating delays caused by boot sequences.

Enhanced Layer 3 Functionality

Equipped with Layer 3 functionality, the TP-SW16GBT/AT/PSV-U not only enhances performance but also strengthens security and network management through features like VLAN, Port Mirroring, Port Isolation, IGMP Snooping, LLDP, Storm Control, Access Control Lists (ACL), and detailed PoE management.

Other key capabilities include:

• RIP, OSPF, DHCP, Spanning Tree, Jumbo Frames, and Ring Topology support.
• Network distances up to 100m with Category 5 or higher Ethernet cables.
• Optical ranges of up to 120km on fiber ports.

Moreover, this industrial-grade switch is built for durability. It includes shielded, grounded RJ45 connectors and surge protection on all ports. Thanks to its wide operating temperature range, it ensures reliable performance in demanding outdoor and industrial environments.

Features

• PoE Switch
• Industrial Strength (-30C to +65C Operating Temperature)
• 10/100/1000 Gigabit Ethernet and 2.5G Fiber
• 120/240VAC and 57VDC Redundant Power
• Ultimate Flexibility for Broadband and Security Integrators
• Port 1-4 802.3bt 90W or Passive 54V 30W PoE
• Port 5-16 802.3at 30W or Passive 24V 15W PoE
• Port 17-20 1.0/2.5Gb SFP Single/Multimode Fiber ports
• L3 Manageable via Console Port or IP or OOB Port
• Surge Protected Inputs, Thermostatically Controlled Cooling Fans
• Rack Mount, Wall Mount or Desktop
• RS485 Interface with 24VDC 0.25A Output
• Simple TyconOS™ User Interface with Advanced Mode

Applications

• Outdoor Network Installations
• Off-Grid Systems
• Camera and Wireless Radios
• PoE Lighting Applications
• Factory Floor Networks
