TP-DC-1256GD-BT
TP-DC-1256GD-BT picture 3

Tycon Power Systems

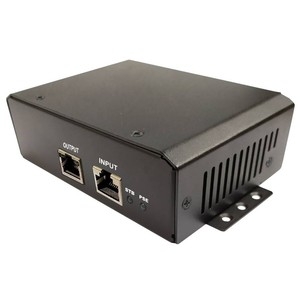

TYCON POWER SYSTEMS TP-DC-1256GD-BT 10-60VDC IN 56VDC OUT 70W



Product Highlights
  • • DC to DC Converter
  • • 10VDC to 60VDC Input Voltage
  • • 56VDC 802.3bt PoE Output
  • • Up to 70W High Power Output
  • • Dual DC Inputs
  • Model#: TP-DC-1256GD-BT

    Sku: IT6204



    MSRP: $299.99

    In Stock

    Your Price: $299.99






    MODEL: TP-DC-1256GD-BT

    The 5 Gigabit compatible TP-DC-1256GD-BT are very high power DC to DC converters / PoE inserters designed for the latest 802.3bt PoE standard. The unique PoE inserter supplies 56VDC Class 8 802.3bt PoE power on all 8 Ethernet wires (4 Pair). They support data throughput rates to 5Gigabit. They are backward compatible with 802.3at devices.

    The wide input voltage range (10VDC to 60VDC) makes these units universal in battery-powered applications. This flexibility ensures they can be used in various scenarios, including remote and mobile installations. The units’ input/output is isolated, so they work seamlessly in either a negative ground or positive ground system, adding to their versatility.

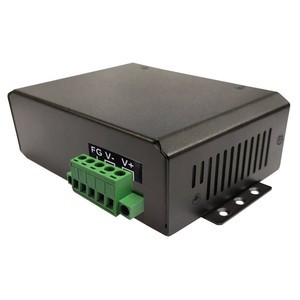

    The TP-DC-1256GD-BT features a locking DC wire terminal connector with two DC inputs for connecting 2 power sources, such as a primary and backup power source. This redundancy ensures continuous operation even if one power source fails. The units also incorporate various protections for low voltage, surge, short circuit, and overload, providing robust and reliable performance.

    Constructed with a durable metal housing, the TP-DC-1256GD-BT is designed to withstand harsh environments. It comes complete with a DIN Rail mounting kit for easy installation on a standard DIN rail, making it suitable for industrial applications. Its compact dimensions and lightweight design facilitate integration into existing systems without significant modifications.

    Ideal for use in high-demand network environments, these converters ensure reliable power delivery and data transmission, supporting modern, high-bandwidth applications. Whether deployed in telecommunications, industrial automation, or remote monitoring systems, the TP-DC-1256GD-BT offers exceptional performance and reliability.

    Features – DC to DC Converter

    • DC to DC Converter
    • Input Voltage 10VDC to 60VDC
    • 8 wire (4 Pair) 56VDC 802.3bt PoE Output
    • High Power Output to 70W
    • Dual DC Inputs for Connecting 2 Power Sources
    • 5 Gigabit Data Throughput
    • Low Voltage Disconnect Feature
    • Short Circuit, Over Current and Reverse/Over Voltage Protection
    • Industrial Temperature Range to 70C

    Applications

    • 12VDC / 24VDC / 48VDC Remote Power Systems
    • 48VDC or -48VDC Remote Power Systems (Isolated In/Out)
    • 802.3bt Compatible Devices
    • 802.3bt Compatible High Power Cameras and Radio’s

    Specifications TP-DC-1256GD-BT

    Input Voltage +/- 10VDC to 60VDC
    DC Input Connector Removeable Screw Type Compression Wire Terminal, 5 Pin (12 AWG Max)
    POE Specification 802.3bt Class 8 ( 8 Wire , 4 Pair ) 3456V+, 1278V-
    LED Definition RJ45 Output Connector: Left LED: Green = Pins 1,2,3,6 are Powered Right LED: Green = Pins 4,5,7,8 are Powered

    Main LED: STB LED: RED = PoE Output is OFF PSE LED: GREEN = PoE Output is ON
    Output Voltage (+/-2.5%) 56VDC
    Data in & Data/POE Output Connector RJ45 (Shielded)
    Data Rate Up to 5 Gigabit
    Output Current (max) 1.25A
    Output Power (max) 70W
    Self-Consumption Power 2W
    Low Voltage Protection ~8-9VDC Unit will power down to conserve battery
    Other protections Overcurrent (110% of rated), Short Circuit, Reverse Polarity, Surge Protection
    Efficiency 85% Min (10VDC to 60VDC Input) (Full Load)
    Line Regulation, Ripple, Noise 1%
    Load Regulation 5%
    EMC Standards EN55032/55035
    Safety Standards EN62368-1
    Operating Temperature -40 to +70°C (-40 to +158°F)
    Operating Humidity (RH) 5% - 90%
    MTBF (Mean Time Between Failure) 102,277 Hours
    Storage Temperature -40 to +85°C (-40 to +185°F)
    Dimensions (LxWxH) 86 x 139 x 40mm (3.4 x 5.5 x 1.57”)
    Weight 550g (19.4oz)

    Datasheet

    PDF File TYCON POWER SYSTEMS TP-DC-1256GD-BT 10-60VDC IN 56VDC OUT 70W
