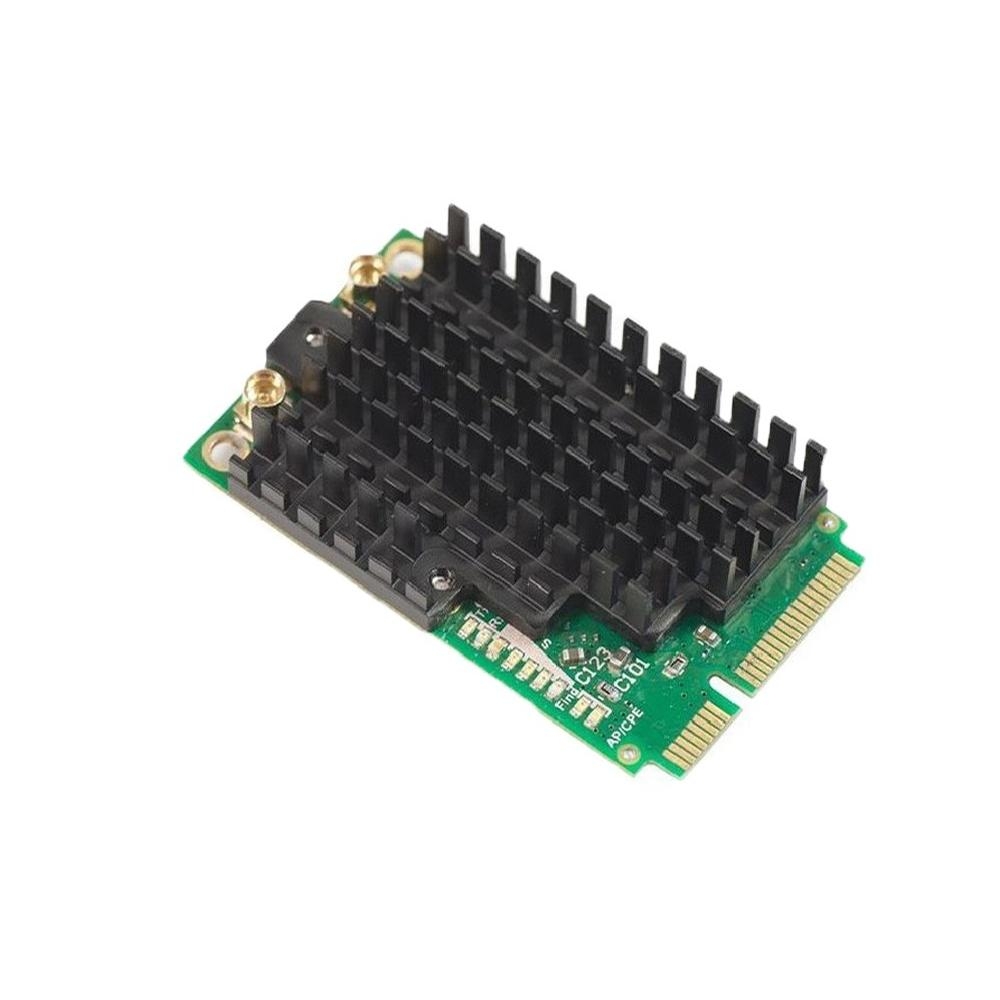

MikroTik R11e-2HPnD 2.4GHz HP miniPCI-e 802.11bgn 2x2 Card


Product Highlights
  • High Power 30 dBm
  • 802.11b/g/n 2.4 GHz
  • miniPCI-e Card
  • (2)MMCX Connectors

    • Model#: R11e-2HPnD

    Sku: IT6173



    MSRP: $49.99


    Out of stock

    Your Price: $49.99


    MOEL: R11e-2HPnD

    2Ghz miniPCI-express, 802.11b/g/n dual chain, 2x MMCX

    R11e-2HPnD is our new 802.11b/g/n Dual Chain high power miniPCI-e card, operating in full 2192-2732 MHz frequency. Ideally suited for the new RB912 series (Specific frequency range can be limited by country regulations), RB800 or our new miniPCIe adapters - RB14e/RB14eU

    Unit is equipped with two MMCX connectors

    Specifications R11e-2HPnD

    Chipset AR9582
    Frequency range 2312-2732 MHz
    Standards 802.11b/g/n
    Max output power 1000mW
    Format miniPCIe
    Dimensions 51x30x13mm
    Connectors 2x MMCX
    Features 9 LED indicators, ESD protection
    Temperature Operating -40C to +65C
    MAX power consumption 5W
    TX/RX at MCS0 30dBm / -96dBm
    TX/RX at MCS7 24dBm / -76dBm
    TX/RX at 6Mbit 30dBm / -96dBm
    TX/RX at 54Mbit 25dBm / -80dBm

    Datasheet

    PDF File MikroTik R11e-2HPnD 2.4GHz HP miniPCI-e 802.11bgn 2x2 Card
