MikroTik RBcAPL-2nD cAP Lite 2.4Ghz AP with RouterOS L4, indoor case
Model#: RBcAPL-2nD
Sku: IT6167
MSRP: $39.99
In Stock
Your Price: $39.99
MODEL: RBcAPL-2nD
2.4Ghz AP CAP lite with RouterOS L4, indoor case

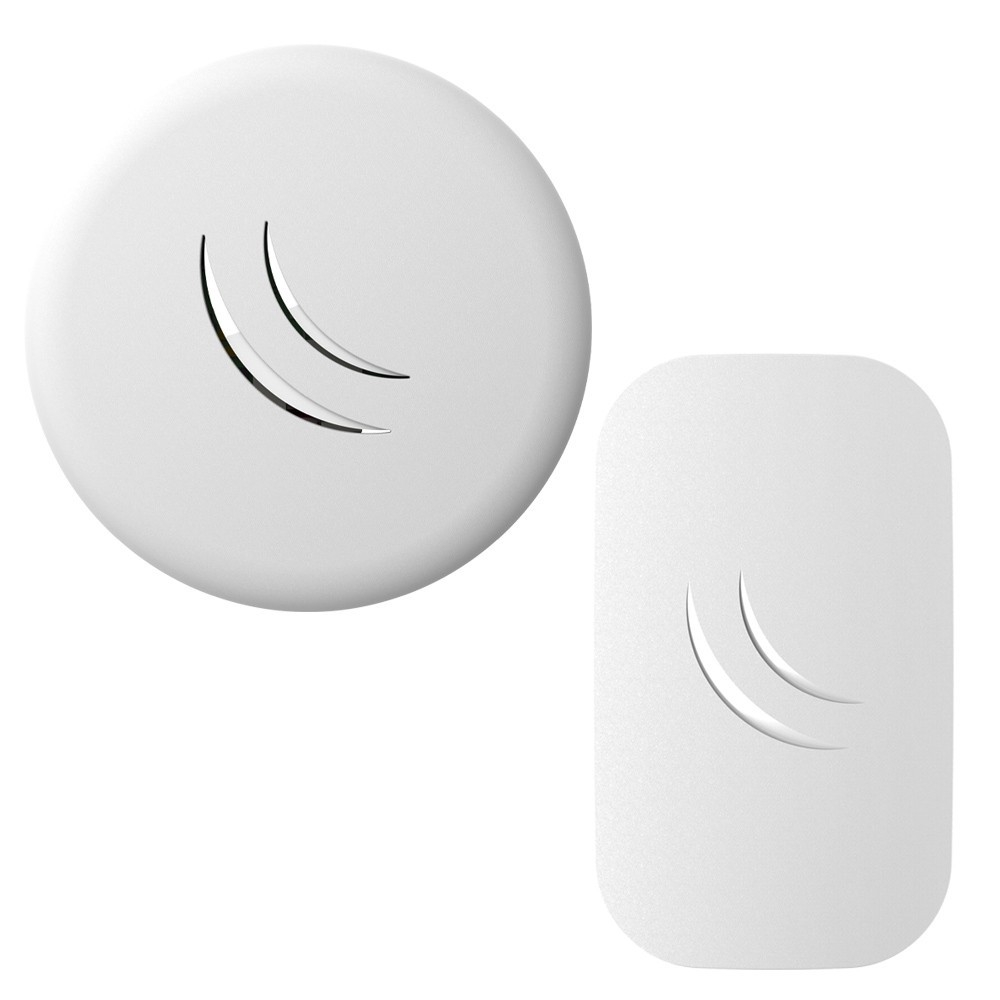

The cAP lite is a tiny access point device, perfect for public locations and hospitality businesses like hotels, airports, shopping malls etc. Included with the product are two different casings, which can easily be swapped out, or, if you really like to fit the design with the environment, we are providing 3D printer friendly design files.
The cAP lite supports 802.11b/g/n and can be powered by power over ethernet. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location. The cAP lite can also be used as a stand alone access point with the full potential of RouterOS.
Specifications RBcAPL-2nD
| Product code | RBcAPL-2nD |
| CPU | QCA9533 |
| CPU nominal frequency | 650 MHz |
| CPU core count | 1 |
| Size of RAM | 64 MB |
| 10/100 Ethernet ports | 1 |
| Wireless | Built-in 2.4 GHz 802.11b/g/n, dual-chain |
| Antenna gain | 1.5 dBi |
| Antenna beam width | 360° |
| Wireless chip model | QCA9533 |
| PoE in | Yes |
| Supported input voltage | 5 V - 60 V (jack, 802.3af/at or passive PoE) |
| Operating temperature | -40°C .. +70°C tested |
| Dimensions | Wall case: 88 x 52 x 20 mm Ceiling case: ?88 mm x 20 mm |
| License level | 4 |
| Operating System | RouterOS |
| Max Power consumption | 4 W |
Wireless Specifications
| RATE | Tx (dBm) | Rx (dBm) |
|---|---|---|
| 1MBit/s | 22 | -96 |
| 11MBit/s | 22 | -89 |
| 6MBit/s | 20 | -93 |
| 54MBit/s | 18 | -74 |
| MCS0 | 20 | -93 |
| MCS7 | 16 | -71 |
