Ubiquiti Wave-LR UISP Wave Long-Range - International Version
Model#: WAVE-LR
Sku: IT5125
Out of stock
Your Price: N/A
MODEL: WAVE-LR - INTERNATIONAL VERSION

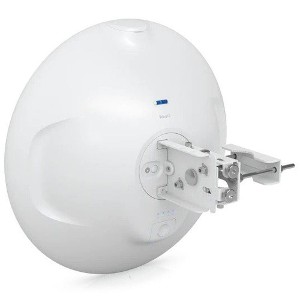

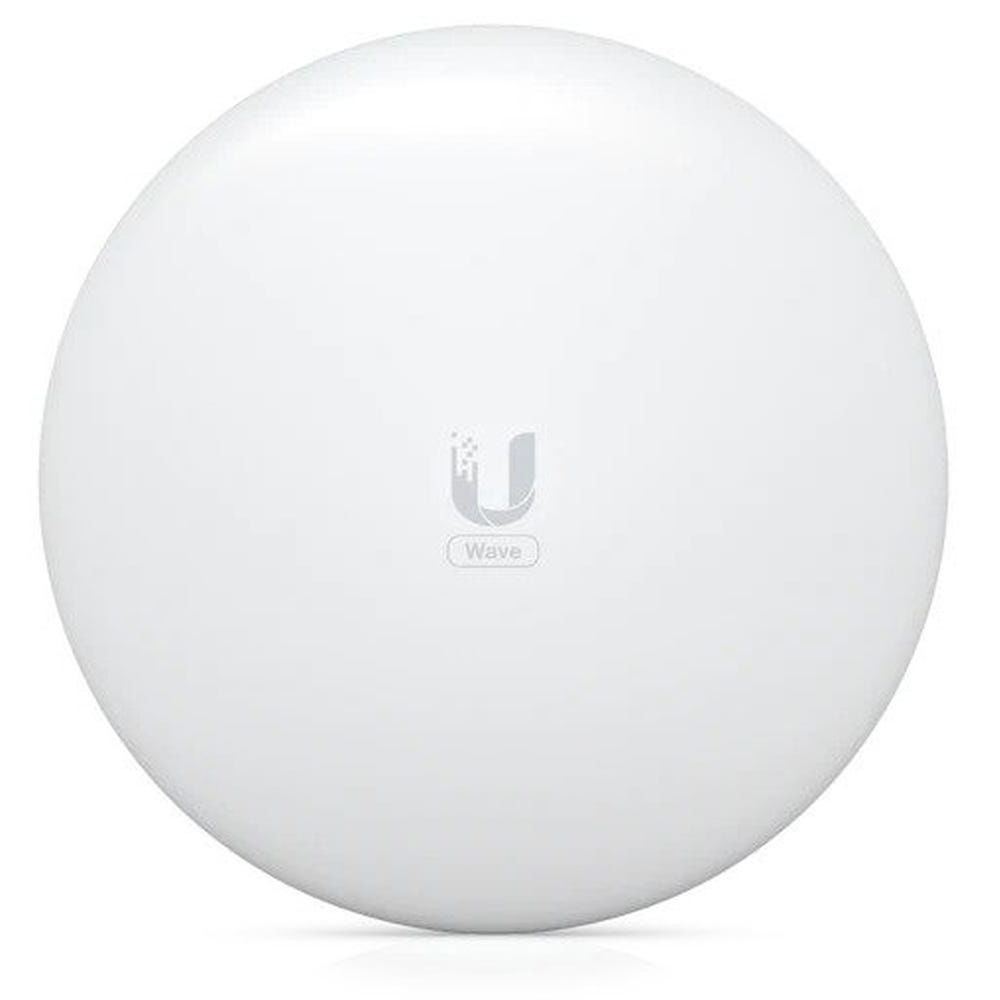

Ubiquiti Networks Wave-LR
UISP Wave Long-Range 60 GHz PtMP station
Can connect to a Wave AP and deliver 2 Gbps total throughput (1 Gbps duplex). The Wave Long-Range is equipped with a high-performance 5GHz backup radio to ensure uninterrupted connection and a Bluetooth radio to simplify setup via the UISP® Mobile app.
Specifications Wave-LR
| Dimensions | Ø424.4 x 166.2 mm (Ø16.7 x 6.5") |
| Weight | Without mount: 2.59 kg (5.7 lb) With mount: 3.79 kg (8.4 lb) |
| Enclosure material | UV stabilized plastic |
| Mount material | Galvanized steel |
| Pole mount diameter | 25 to 76.2 mm (1 to 3") on pipe outer diameter |
| Wind loading | 286 N at 200 km/h (64.3 lbf at 125 mph) |
| Weatherproong | IPX6 |
| Processor | Dual ARM® Cortex -A53 cores at 1GHz |
| Memory | DDR3L 512MB |
| Networking interface | (1) GbE RJ45 port |
| Max. power consumption | 18W |
| Power method | 48VDC passive PoE 4-pairs (1, 2+; 3, 6-) (4,5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-) 24VDC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) |
| Power supply | 48VDC, 0.65A gigabit PoE adapter (included) Can be powered by a UISP Router or UISP Switch |
| Button | Factory reset |
| LEDs | Power, Ethernet, GPS, link |
| Operating temperature | -40 to 60° C (-40 to 140° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certications | FCC, IC, CE |
| Software | |
| OS | airOS |
| Operating mode | PtMP station |
| Ubiquiti specic features | Integrated 60 GHz radio, discovery protocol, Wave technology |
| Services | UISP, ping watchdog, NTP client, SNMP |
| Tools | Antenna alignment, discovery utility, ping, trace route, speed test |
| Network | Bridge/Router mode |
| Software management | Bluetooth managementfor easy setup over UISP app WEB UI |
| Minimum software requirements | Any modern web browser/iOS or Android based smartphone |
