Ubiquiti Wave-AP-Micro UISP Wave Access Point Micro - INTERNATIONAL VERSION
Product Highlights
Model#: WAVE-AP-MICRO
Sku: IT5086
MSRP: $559.99
Out of stock
Your Price: $559.99
MODEL: WAVE-AP-MICRO - INTERNATIONAL VERSION

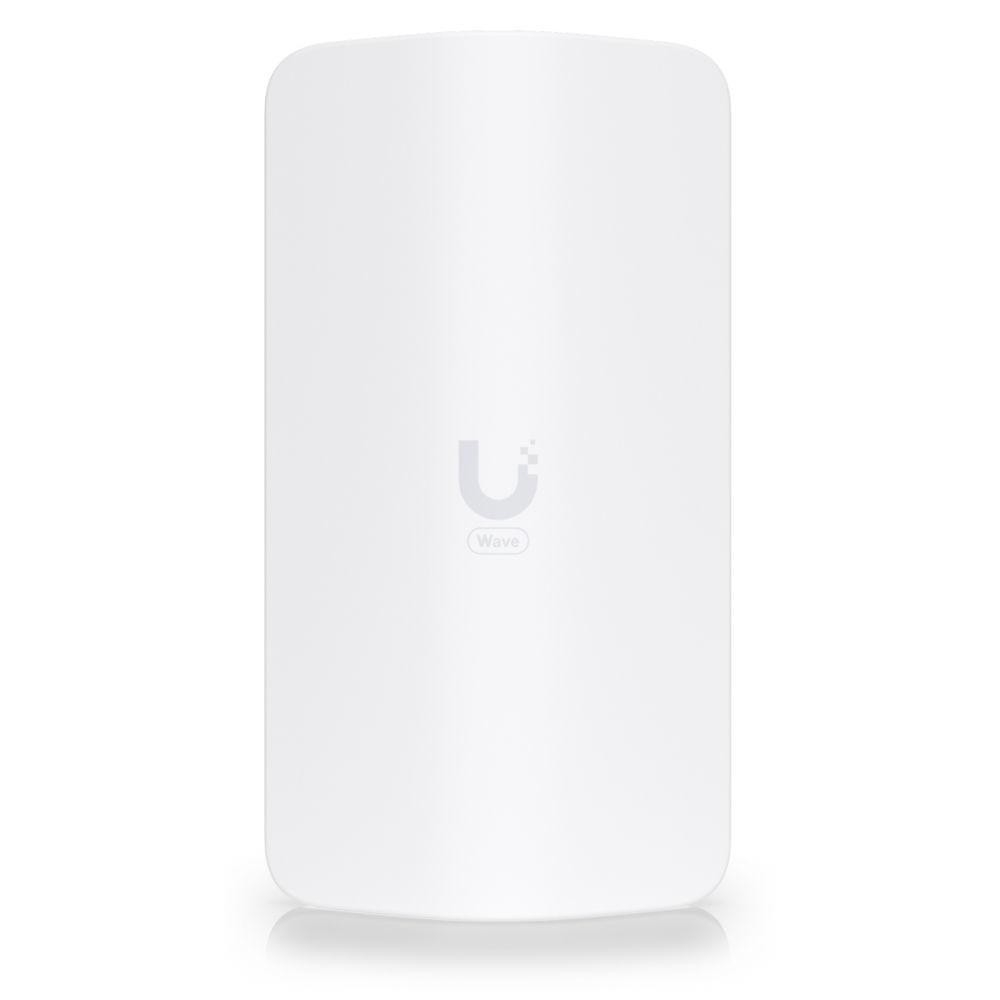

Ubiquiti Networks Wave AP Micro
Wide-coverage 60 GHz PtMP access point powered by Wave Technology.
-
• 60 GHz 5 Gbps max. throughput (2.5 Gbps duplex) main radio
- • 90° sector coverage
- • 5 GHz 800+ Mbps weather-resilient backup radio
- • (1) 2.5 GbE WAN port
- • 15 client capacity:
Specifications Wave-AP-Micro
| Dimensions | 284 x 156 x 76 mm (11.2 x 6.1 x 3") |
| Weight | 1.3 kg (2.87 lb) |
| Enclosure materials | Aluminum alloy, UV stabilized polycarbonate |
| Mount materials | Stainless steel, UV stabilized polycarbonate |
| Pole mount diameter | 35 to 60 mm (1.4 to 2.4") on pipe outer diameter |
| Wind loading | 87 N at 200 km/h (20 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Processor | Quad-core ARM® Cortex®-A53 at 1.4 GHz |
| Memory | DDR3L 512 MB |
| Networking interface | (1) 1/2.5 GbE RJ45 port |
| Max. power consumption | 24W |
| Power method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only |
| Power supply | 48V DC, 0.65A, 2.5 GbE PoE adapter (included) |
| Supported voltage range | 44–54V DC 22–27V DC |
| GPS | Yes |
| Button | Factory reset |
| LEDs | Power, Ethernet, GPS, Link |
| Operating temperature | -40 to 60° C (-40 to 140° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| Operating mode | PtMP access point |
| Ubiquiti specific features | Wave AI, discovery protocol |
| Services | UISP, ping watchdog, NTP client, SNMP |
| Tools | Antenna alignment, discovery utility, ping, trace route, speed test |
| Network | Bridge mode |
| Application requirements | UISP web: Version 2.2.11 and later UISP iOS™: Version 2.25.1 and later UISP Android™: Version 2.27.5 and later |
| System | |
| Total throughput | 5 Gbps (2.5 Gbps duplex) |
| Supported clients count | 15 |
| Max. range | Connecting to a Wave Long-Range: up to 6 km Connecting to a Wave Nano: up to 4 km |
| Encryption | WPA2-PSK (AES) |
| RF | |
| Operating frequency* | 57–71 GHz *Depends on regulatory region. |
| Channel bandwidth | 2160, 1080 MHz |
| Operating channels* | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depends on regulatory region. |
| Modulation | 16QAM, QPSK |
| Antenna gain | 20 dBi |
| Polarization | Vertically linear |
| Beamwidth | Azimuth: 3 dB 90° Elevation: 3 dB 7° |
| Electrical downtilt | 0° |
| Back-Up RF | |
| WiFi standard | 802.11ax (WiFi 6) |
| Operating frequency* US/CA | U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz |
| Worldwide | 5150 - 5875 MHz *Depends on regulatory region. |
| Channel bandwidth | 20, 40, 80 MHz |
| Modulation | BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6) |
| Antenna gain | 13.5 dBi |
| Polarization | Dual-linear |
| Beamwidth | Azimuth: 6 dB 90° Elevation: 6 dB 25° |
| Cross-pol isolation | 10 dB |
| Electric downtilt | 0° |
| LEDs | |
| Power | Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress |
| Ethernet | Flashing blue: Ethernet traffic detected |
| GPS | Blue: receiving at least(4) GPS satellite signal |
| Link | Blue: 60 GHz link White: 5 GHz link |
