Ubiquiti Networks UISP-Dish
Point-to-point (PtP) dish antenna that covers a wide operating frequency range (5.15 - 6.875 GHz).

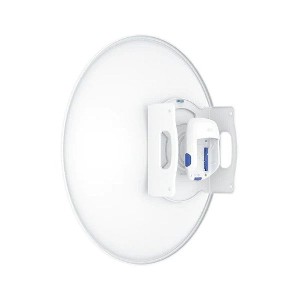

The UISP® Dish is a high-gain PtP antenna that provides ample coverage by utilizing a wide operating frequency range. With the included WaveGuide adapter, this antenna can be easily attached to an airFiber® 5XHD Radio (AF 5XHD) or airMAX® Rocket Prism® AC 5 GHz Radio (RP 5AC) to amplify their signal. The UISP Dish also has a latch on each side for secure, snap-in radio connection.
Features:
- Frequency range: 5.15 - 6.875 GHz
- 30+ km PtP link range

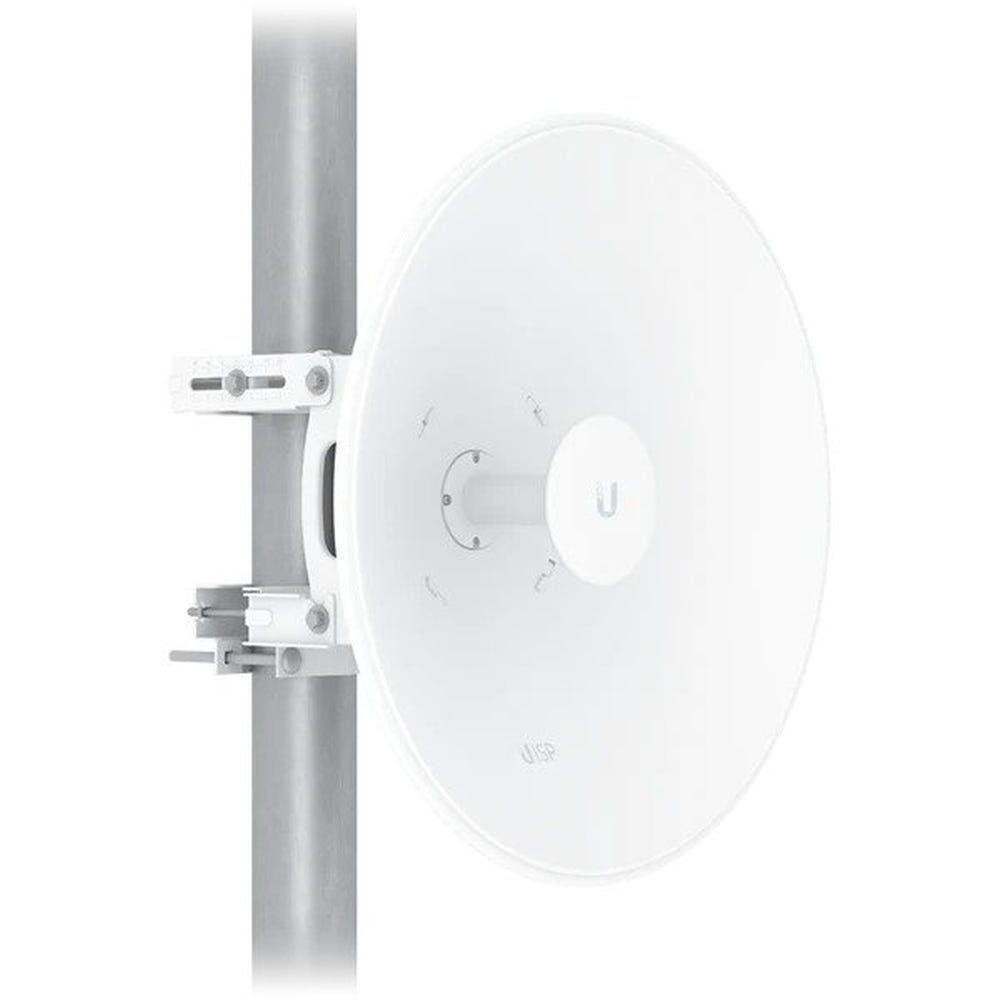

- Precision mounting bracket for easy installation and alignment
- Two side latches for secure, snap-in radio connection
Specifications UISP-Dish
| Dimensions | Ø 650 x 200 mm (Ø 25.6 x 7.9") |
| Weight | Device: 4.54 kg (10 lb) Mount: 3.1 kg (6.8 lb) |
| Enclosure materials | Powder-coated galvanized steel, UV stabilized polycarbonate, aluminum alloy |
| Wind survivability | Up to 200 km/h (124 mph) |
| Wind loading | 860 N at 200 km/h |
| Mounting | Alignment mounting kit (included) |
| Mechanical adjustment | ±15° elevation |
| Pole compatibility | Ø40 to 90mm (Ø1.57 to 3.5") |
| Weatherproofing | IPX6 |
| Hardware | |
| Frequency range | 5.15 to 6.875 GHz |
| Gain | 30 dBi |
| Beamwidth | Azimuth: 5 to 6° (3 dB) / 6.5 to 8° (6 dB) |
| Elevation | 5 to 6° (3 dB) / 6.5 to 8° (6 dB) |
| Electrical downtilt | 0° |
| Maximum VSWR | 2:1 |
| Polarization | Dual-linear |
| Cross-pol isolation | 20 dB |
