U7-PRO-MAX-US
U7-PRO-MAX-US picture 3

Ubiquiti


Ubiquiti U7-PRO-MAX-US UniFi WiFi 7 AP with 8 Spatial Streams 6GHz



Product Highlights
  • WiFi 7 with 6 GHz support
  • 8 spatial streams
  • Real-time spectral analysis for enhanced channel selection*
  • 160 m² (1,750 ft²) coverage
  • Powered using PoE+
  • Model#: U7-PRO-MAX-US

    Sku: IT5016



    MSRP: $319.99

    In Stock

    Your Price: $319.99






    MODEL: U7-PRO-MAX-US

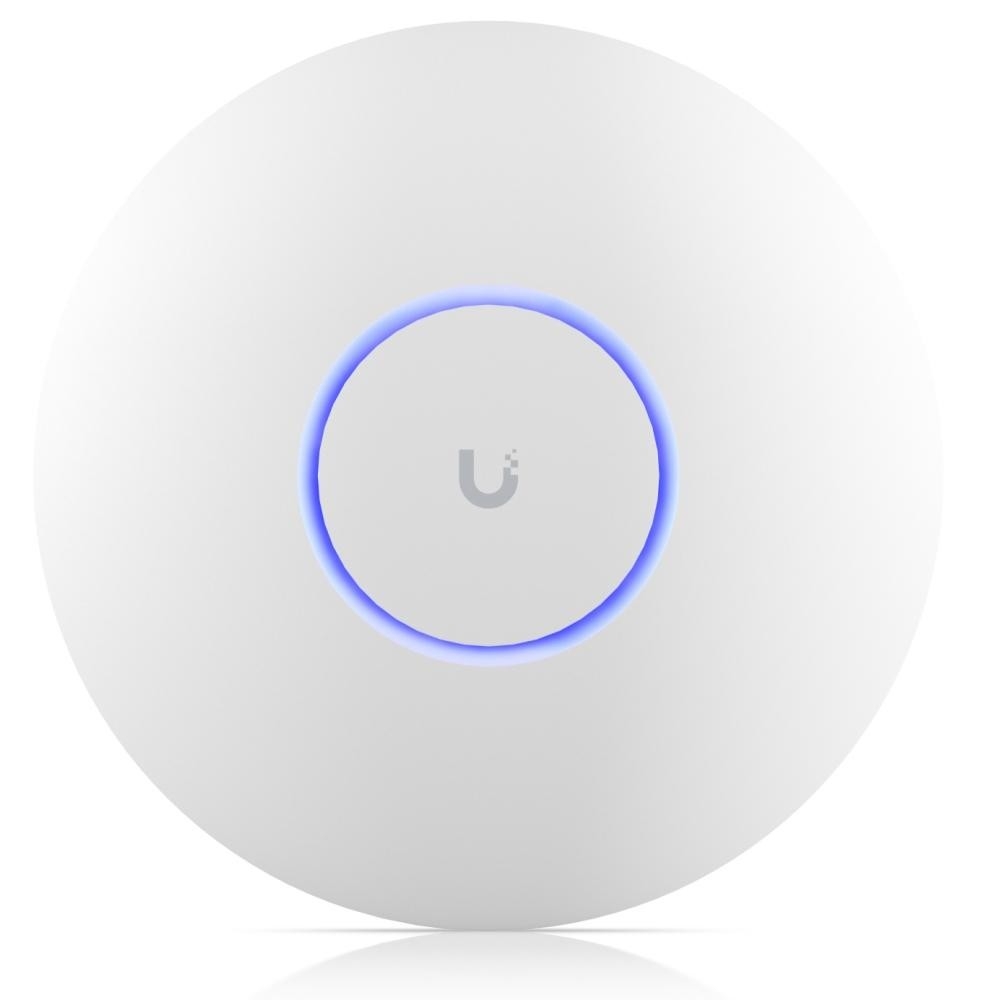

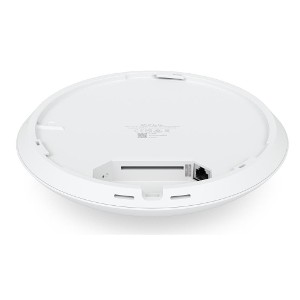

    Ubiquiti Networks U7-Pro-Max

    UniFi WiFi 7 AP with 8 Spatial Streams 6GHz

    Ceiling-mounted WiFi 7 AP with 8 spatial streams, 6 GHz support, and a dedicated spectral scanning engine for interference-free WiFi in demanding, large-scale environments.



    Features:

    • WiFi 7 with 6 GHz support
    • 8 spatial streams
    • Real-time spectral analysis for enhanced channel selection*
    • 160 m² (1,750 ft²) coverage
    • 500+ connected devices
    • Powered using PoE+
    • 2.5 GbE uplink

    Specifications U7-Pro-Max

    Mechanical
    Dimensions Ø206 x 46 mm (Ø8.1 x 1.8")
    Weight 680 g (1.5 lb)
    Enclosure material Polycarbonate, aluminum
    Mount material Stainless steel (SUS304), galvanized steel (SGCC)
    Hardware
    Networking interface (1) 1/2.5 GbE RJ45 port
    Management interface Ethernet
    Power method PoE+
    Power supply UniFi PoE switch
    Supported voltage range 44—57V DC
    Max. power consumption 22W
    Max. TX power
    2.4 GHz
    5 GHz
    6 GHz
    23 dBm
    29 dBm
    23 dBm
    MIMO
    2.4 GHz
    5 GHz
    6 GHz
    2 x 2
    4 x 4
    2 x 2
    Throughput rate
    2.4 GHz
    5 GHz
    6 GHz
    688 Mbps
    8648 Mbps
    5765 Mbps
    Antenna gain
    2.4 GHz
    5 GHz
    6 GHz
    4 dBi
    6 dBi
    5.9 dBi
    LEDs White/blue
    Button Factory reset
    Mounting Wall, ceiling (Included)
    Ambient operating temperature -30 to 60° C (-22 to 140° F)
    Ambient operating humidity 5 to 95% noncondensing
    Certifications CE, FCC, IC
    Software
    WiFi standards 802.11a/b/g/n/ac/ax/be
    Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
    BSSID 8 per radio
    VLAN 802.1Q
    Advanced QoS Per-user rate limiting
    Guest traffic isolation Supported
    Concurrent clients 500+
    Supported Data Rates
    802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    802.11b 1, 2, 5.5, 11 Mbps
    802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
    802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
    802.11ax (WiFi 6/6E) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
    802.11be (WiFi 7)
    5 GHz
    6 GHz
    7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
    7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
    Application Requirements
    UniFi Network Version 8.2.93 and later
