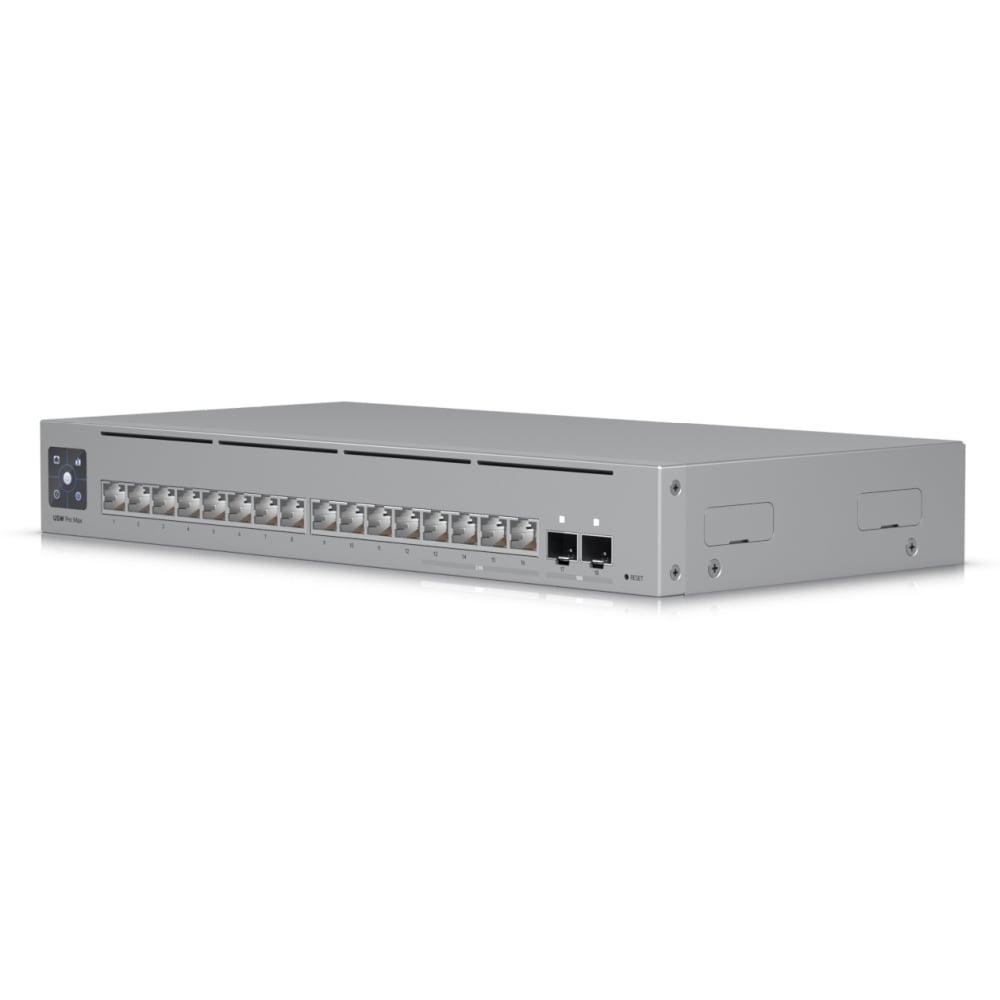

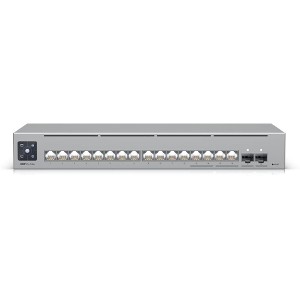

Ubiquiti USW-PRO-MAX-16 UNIFI SWITCH PRO MAX 16
Product Highlights
Model#: USW-PRO-MAX-16
Sku: IT4994
MSRP: $333.99
In Stock
Your Price: $333.99
MODEL: USW-PRO-MAX-16
16-port, Layer 3 Etherlighting Switch with 2.5 GbE
Features:
- Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
- (4) 2.5 GbE RJ45 ports
- (12) GbE RJ45 ports
- (2) 10G SFP+ ports
- Versatile desktop, wall, and rack** mounting
- Silent, fanless cooling system
Specifications USW-Pro-Max-16
| Dimensions | 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7") |
| Port Layout | |
| 1 GbE RJ45 | 12 (1G/100M/10M) |
| 2.5 GbE RJ45 | 4 (2.5G/1G/100M/10M) |
| 10G SFP+ | 2 |
| Layer 3 | Yes |
| Form Factor | Rack mount (1U), desktop, wall |
| Etherlighting™ | Yes |
| Performance | |
| Switching Capacity | 84 Gbps |
| Total Non-Blocking Throughput | 42 Gbps |
| Forwarding Rate | 62 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| L3 Table Size | |
| ARP Entries | 6,000 |
| IPv4 Routes | 512 |
| Packet Buffer Size | 1.5 MB |
| Layer 3 Features | |
| DHCP Server (Local Networks) | Yes |
| DHCP Relay | Yes |
| Inter-VLAN Routing (Local Networks) | Yes |
| Static Routing (Local Networks) | Yes |
| Layer 2 Features | |
| LACP Port Aggregation | Yes |
| STP & RSTP | Yes |
| QoS (DSCP) | Yes |
| Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) | Yes |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) | Yes |
| IGMP Snooping | Yes |
| 802.1X Control | Yes |
| MAC-Based ACLs & Device Isolation | Yes |
| DHCP Snooping & Guarding | Yes |
| Egress Rate Limit | Yes |
| Flow Control | Yes |
| Storm Control | Yes |
| Multicast & Broadcast Rate Limiting | Yes |
| MAC Address Blocking | Yes |
| IP-Based ACLs & Network Isolation | Yes |
| MAC-Based Port Restriction | Yes |
| Port Isolation | Yes |
| Port Mirroring | Yes |
| Jumbo Frames | Yes |
| LLDP-MED | Yes |
| Voice VLAN | Yes |
| Loop Protection | Yes |
| Hardware | |
| Max. Power Consumption | 25W |
| Power Method | AC/DC Adapter (included) |
| Power Input Method | USB Type-C, 5V DC, 5A |
| Power Supply | AC/DC, external, 25W |
| Supported Voltage Range | 4.8—5.2V DC/USB |
| Management | Ethernet AR |
| Heat Dissipation (Excluding PoE Output) | 85.3 BTU/hr |
| Weight | 1.95 kg (4.3 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Etherlighting™ | |
| Ethernet | Yes |
| SFP+ | Yes |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
