Ubiquiti Networks USW-PRO-8-POE Unifi Switch Pro 8 POE

Model#: USW-PRO-8-POE

Sku: IT4983

MSRP: $335.00

In Stock

Your Price: $335.00

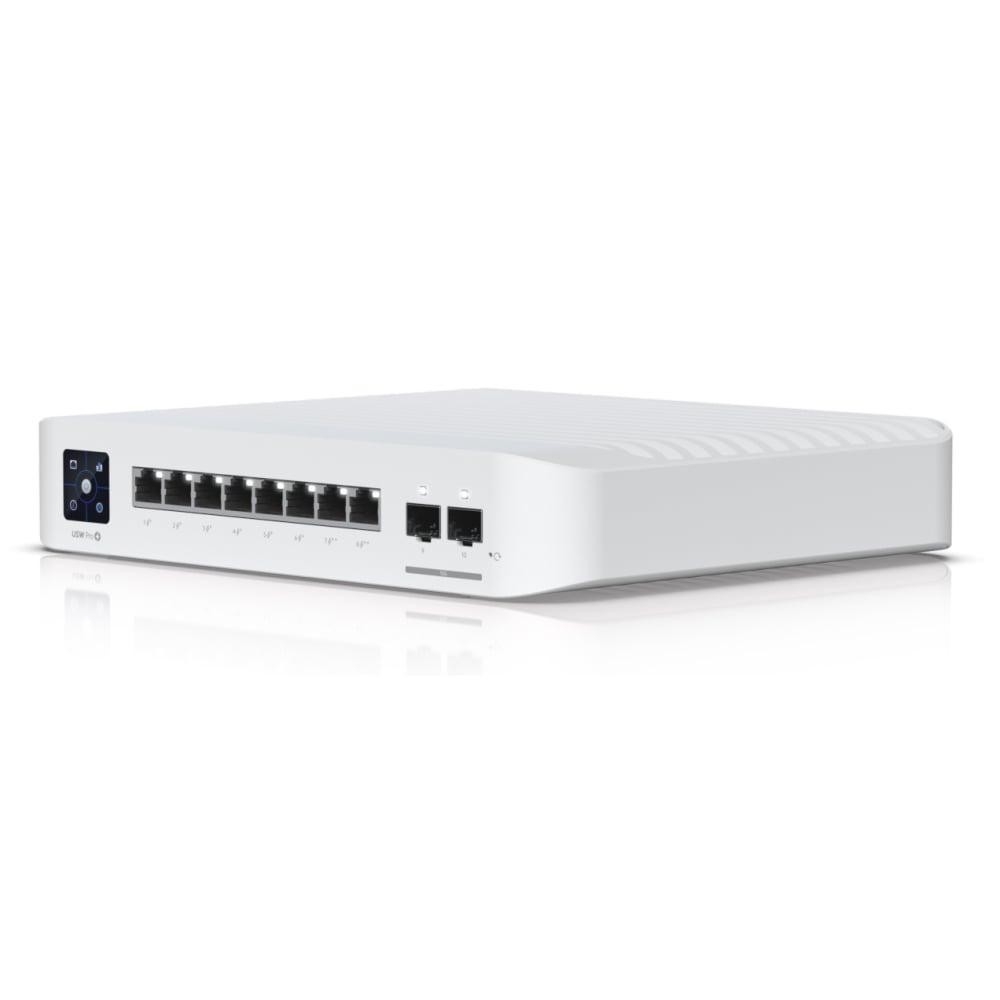

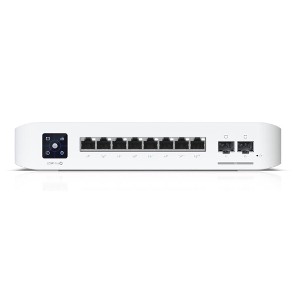

UniFi Switch Pro 8-port L3 Managed PoE++ Switch (120W)

The Ubiquiti UniFi USW-Pro-8-POE is a configurable Gigabit Layer 3 switch with auto-sensing 802.3at PoE+ and 802.3bt PoE++. In addition to 6 LAN ports with PoE+ and 2 LAN ports with PoE++, the switch offers 2 SFP+ ports for 10Gbps uplinking over fiber optic. Can be managed via UniFi Controller software.

This switch provides connected network equipment in addition to a data connection, also 802.3at PoE+ via 6 LAN ports and 802.3bt PoE++ via 2 LAN ports. For example, connect access points, IP cameras and VoIP telephones to the managed 8-port switch and provide these devices with power and data at the same time. In addition to the 8 Ethernet ports, the switch has 2 SFP+ ports with 10Gbps uplinking.

Ubiquiti UniFi Network Controller software

With Ubiquiti UniFi Network Controller software you can easily manage and configure the USW-Pro-8-POE switch. For example, read the status per port or set any VLANs. The software also makes it possible to access multiple switches, so you can manage switches from different locations from one central point. The devices are clearly displayed and you can perform software updates or adjust configurations. You don't have to pay anything for the UniFi Controller software and no licenses are required.



  • An 8-port, Layer 3 switch with PoE+ and PoE++ output.
  • (6) GbE PoE+ ports
  • (2) GbE PoE++ ports
  • (2) 10G SFP+ ports
  • 120W total PoE availability
  • Managed switch, management via UniFi Network Controller
  • Total PoE budget: 120W
  • Switching capacity: 56 Gbps
  • 1.3 " LCM touchscreen
  • Layer 3 functions


Dimensions 200 x 248 x 44 mm (7.9 x 9.8 x 1.7")
Weight 2.1 kg (4.6 lb)
Enclosure materials Plastic, metal
Mount material Plastic
Management interface Ethernet In-Band
Networking interface (8) GbE RJ45 ports
(2) 10 Gbps SFP+ ports
PoE interface (6) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(2) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput 28 Gbps
Switching capacity 56 Gbps
Power method Universal input, 100—240V AC, max. 2A
Power supply AC/DC, internal
Supported voltage range 100—240V AC
Max. power consumption 30W (Excluding PoE output)
Total available PoE 120W
Max. PoE wattage per port by PSE PoE: 15W
PoE+: 30W
PoE++: 60W
Voltage range PoE mode PoE: 44—57V
PoE+: 50—57V
PoE++: 50—57V
LCM display (1) 1.3" touchscreen
LEDs RJ45 ports: link/activity
Button Factory reset
Operating temperature -5 to 45° C (23 to 113° F)
Operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Application Requirements
UniFi Network Version 7.5.176 and later
