UA-G2-PRO

Ubiquiti

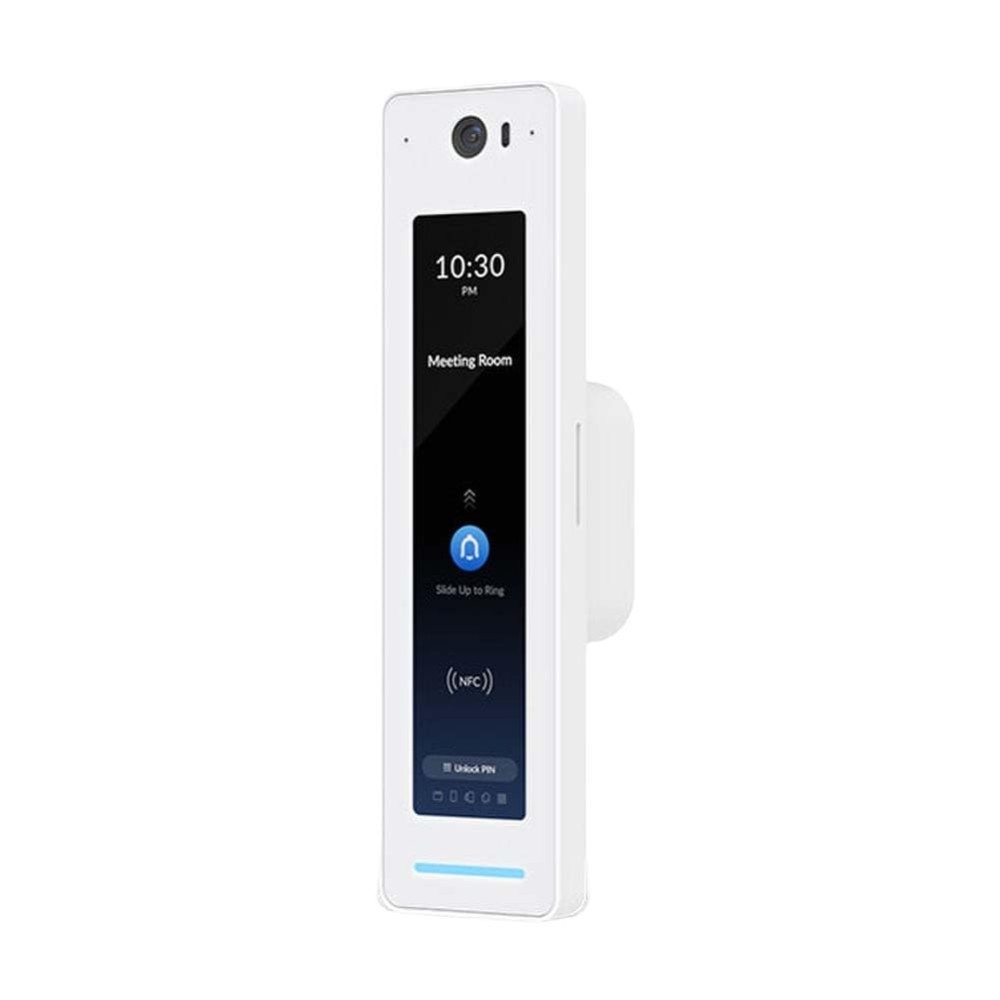

Ubiquiti Networks UA-G2-Pro UniFi Access Reader G2 Pro


Model#: UA-G2-PRO

Sku: IT4964



MSRP: $429.99

In Stock

Your Price: $429.99






MODEL: UA-G2-PRO

UniFi Access Reader G2

Compact, second-generation NFC card reader and request-to-exit device that supports hand-wave door unlocking.



Features:

  • Unlock using an NFC card or UniFi Identity mobile app
  • Additional handwave unlock functionality
  • Entry and exit greeting messages
  • Connects to UniFi Access Hub using PoE
  • IP55 weather resistance (-30 to 45° C)

Specifications

Weight 2.9 lbs, volume 0
Dimensions 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
Enclosure material Polycarbonate, glass
Mounting In wall, gang box
Weatherproofing IP55
Hardware
Networking interface (1) 10/100 MbE RJ45 port
Connectivity BLE 4.1
Power method PoE
Supported voltage range 48V DC
Max. power consumption 5W
ESD/EMP protection Air: ±15kV, contact: ±8kV
Sensors Proximity sensor
Speaker (1) 8 ohm, 0.7W
LEDs R/G/B/W
Button (1) Factory-reset
NFC frequency 13.56 MHz
NFC read range < 30 mm
NFC standards ISO 14443A, 14443B, 15693
NFC technology NFC Tag 1,2,3,4,5
MIFARE Classic
MIFAREPlus
MIFARE Ultralight
MIFARE DESFire
Operating temperature -30 to 45° C (-22 to 113° F)
Operating humidity 5 to 90% noncondensing
Certifications CE, FCC, IC
Software
Management application UniFi Access: Version 1.5.9 and later

Datasheet

PDF File Ubiquiti Networks UA-G2-Pro UniFi Access Reader G2 Pro
