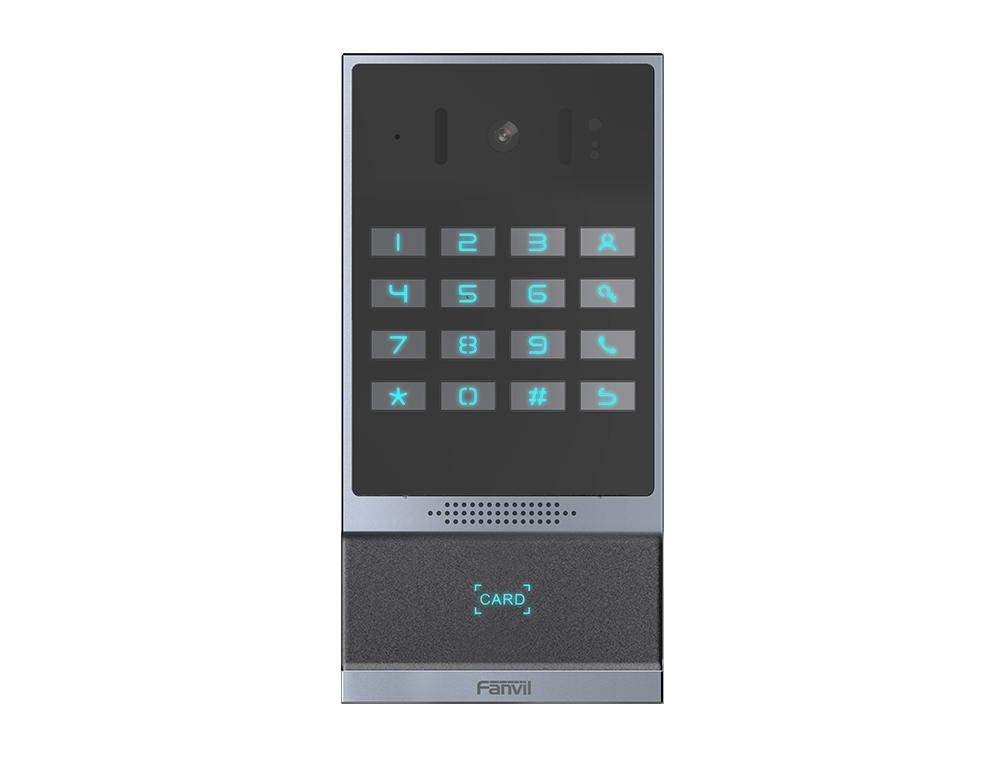

Fanvil i64 Video Door Phone with lighting numeric keypad PoE support

Fanvil i64 Video Door Phone with lighting numeric keypad PoE support

Model#: i64

Sku: IT4956

MSRP: $209.99

In Stock

Your Price: $209.99

MODEL: i64

Based on SIP and ONVIF protocols, Fanvil i64 is a video door phone that integrates powerful functionalities of access control, intercom, and security protection. Featuring an aluminum alloy design and a lighting numeric keypad, Fanvil i64 delivers a high-quality robust appearance. With high protection level IP66 and IK07, it is waterproof, dustproof and anti-collision in most outdoor environments. Fanvil i64 allows users to make audio/video calls via a speed-dial button and a 2 Mega-pixel camera and achieve access control by different modes. With rich input and output interfaces, Fanvil i64 is easy to link with other security devices and customize into various solutions in apartments, commercial buildings, communities and industrial parks.

Highlights

With high protection level of IP66 and IK07, wide temperature range from -40º to 70º, it can work perfectly in most outdoor environments
Support to open the door with password, RFID/IC cards, NFC, indoor switch, remote DTMF, Timed open door
Aluminum alloy design and a numeric keypad
Built-in 2 Mega-pixel wide-angle camera: 120º(H), 60º(V) with infrared night-vision feature
Fitted with a tamper switch that detects unauthorized opening of the device itself
Compatible with SIP and ONVIF protocols
Built-in 3 short-in detect ports and 2 short-out control ports, can be integrated with induction loop antenna
Built-in maximum 128GB capacity TF card slot for image storage HD voice speech quality with built-in 2.5W speaker and Acoustic Echo Canceller

Technical Description

Generic
- 2 SIP lines
- Video intercom
- IP address announcement in English
- Programmable DSS key
- Wiegand port: Support
- RS485 port: Support
- Open the door operation: DTMF, password, RFID card, NFC,Indoor Switch, Timed open door
- door control in and out
- Switch signal input and output
- Line-out for induction loop antenna: Support
- Support TF card
- PoE enabled
- RFID cards (support 10,000)
- Door open records (support 200,000)
Device Functions
- Auto-answering
- Programmable DSS keys
- Through button or web page volume adjustment
- Network time synchronization
- Time Plan (task management)
- Dynamic multicast function
- SIP call multicast function
- HTTP API
- Action URL / Active URI
Call Functions
- Call out / answer / reject
- Call waiting
- Intercom, Multicast
- Speed dial
- Anonymous call (Hide caller ID)
Audio
- Narrowband codec: G.711A/U, G.729A/B,iLBC,G.723.1,G.726-32K
- Wideband codec: G.722, Opus
- Full-duplex hands-free speakerphone with AEC
- DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)
Video
- Sensor: 1/2.9” color CMOS
- Pixels: 2 Mega
- Video coding: H.264
- Motion detection
- Resolution:
  - Main stream 1080P@30fps
  - Sub stream VGA@30fps
- High intensity IR LEDs for picture lighting during dark hours with internal light sensor
- Viewing angle:
  - Diagonal: 141°
  - Horizontal: 120°
  - Vertical: 60°
- Minimum illumination: 0.1Lux
Network
- Physical: 10/100 Mbps Ethernet
- IP mode:IPv4/IPv6/IPv4&IPv6
- IP configuration: Static IP / DHCP / PPPoE
- VPN: L2TP / OpenVPN
- VLAN
Protocols
- SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
- RTP/RTCP/SRTP
- STUN
- DHCP
- IPv6
- PPPoE
- L2TP
- OpenVPN
- SNTP
- FTP/TFTP
- HTTP/HTTPS
- TR-069
Deployment & Management
- Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIPPNP/TR-069
- Web management portal
- Web-based packet dump
- Configuration export / import
- Firmware upgrade
- Syslog
Physical Specifications
- Keypad: 16 keys,including
  - 12 number keys
  - 4 function keys (Management Center /Password Mode/ dial /Backspace)
- RJ45 port x1: connect the network
  - PoE enabled
- Short-in detect port x 3
  - Port: Terminal socket
- Short-out control port x2 (built-in relay)
  - Relay: MAX DC30V / 2A, AC125V / 0.5A
  - Port: Terminal socket
- Tamper switch x1
- TF card slot x1: connect TF card,up to 128GB
- RF Card Reader:125KHz&13.56MHz
- RS485: Support
- Wiegand Port: In/Out configurable, Wiegand in by default
- Line-out port x1: for induction loop antenna loop
- DC port x1: DC power input
  - DC power input: DC12V/1A
  - Port: Terminal socket
- PoE level: 802.3af Class 3
- Power Consumption (PoE):1.64~6.57W
- Power Consumption (Adapter):1.58~6.11W
- Protection level: IP66 and IK07
- Housing material: Aluminum
- Installation:
  - Wall-mounted
  - Flush-mounted (Need to purchase separately, model:EX102)
- Working temperature: -20? ~ 50?
- Storage temperature: - 40? ~ 70?
- Working humidity: 10%~95%

Datasheet
