USW-PRO-MAX-48-POE
USW-PRO-MAX-48-POE picture 3 USW-PRO-MAX-48-POE picture 4

Ubiquiti


Ubiquiti Networks USW-PRO-MAX-48-POE unifi Switch Pro Max 48 ports POE


Product Highlights
  • Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network
  • (16) 2.5 GbE ports including (8) PoE+ and (8) PoE++
  • (32) GbE ports including (24) PoE+ and (8) PoE++
  • (4) 10G SFP+ ports
  • DC power backup ready

    • Model#: USW-PRO-MAX-48-POE

    Sku: IT4940



    MSRP: $1,340.00

    In Stock

    Your Price: $1,340.00






    MODEL: USW-PRO-MAX-48-POE

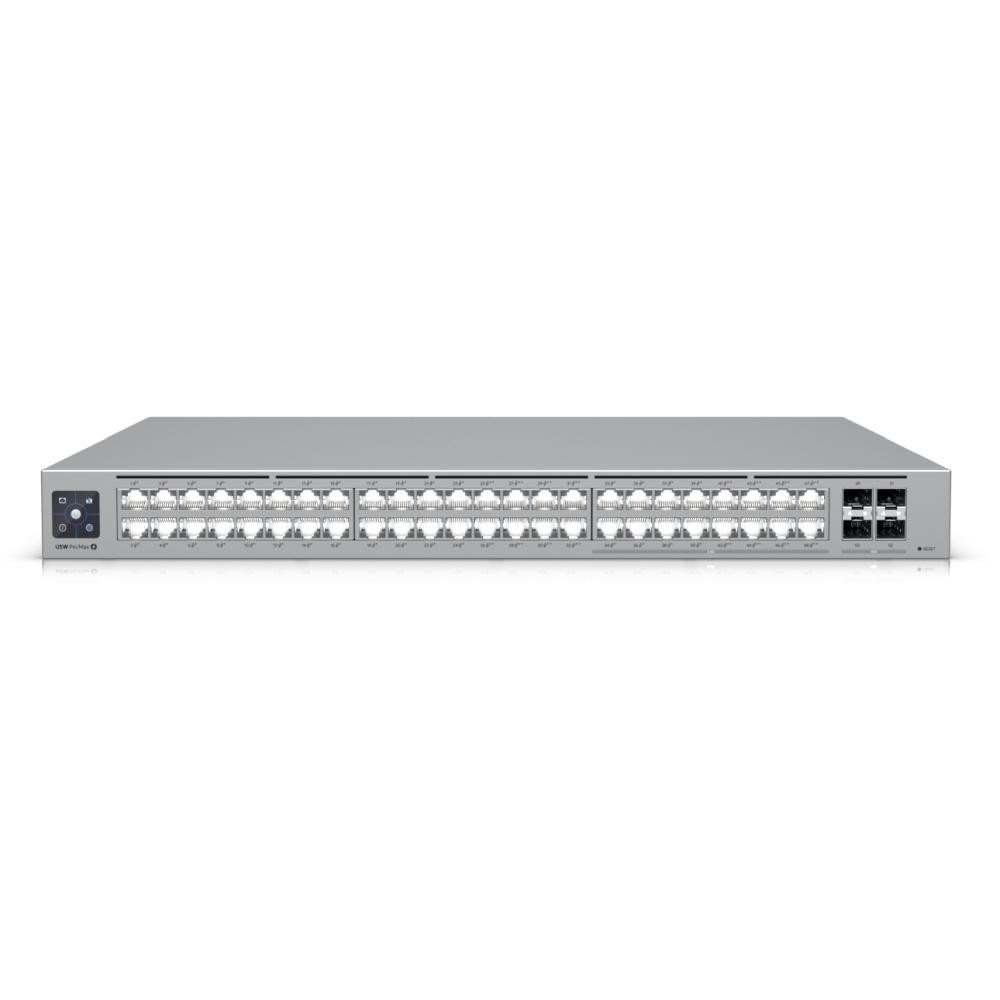

    Ubiquiti Networks USW-Pro-Max-48-POE

    A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output.



    Features:

    • Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
    • (16) 2.5 GbE ports including (8) PoE+ and (8) PoE++
    • (32) GbE ports including (24) PoE+ and (8) PoE++
    • (4) 10G SFP+ ports
    • DC power backup ready
    • 720W total PoE availability
    • Managed with UniFi Network 8.0.24 and later
    • *Pair with UniFi Etherlighting Patch Cables for optimal brightness.

    Specifications

    Dimensions 442.4 x 399.6 x 43.7 mm (17.4 x 15.7 x 1.7")
    Weight Without mounting brackets: 6.2 kg (13.7 lb)
    With mounting brackets: 6.3 kg (13.9 lb)
    Enclosure material SGCC steel
    Hardware
    Management interface Ethernet In-Band
    Networking interface (32) GbE RJ45 ports
    (16) 1/2.5 GbE RJ45 ports
    (4) 10G SFP+ ports
    PoE interface (32) PoE/PoE+ (Pins 1, 2+; 3, 6-)
    (16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
    Total non-blocking throughput 112 Gbps
    Switching capacity 224 Gbps
    Power method Universal input, 100—240V AC, 50/60 Hz USP RPS DC input
    Power supply AC/DC, internal, 820W
    Supported voltage range 100—240V AC
    Max. power consumption 100W (Excluding PoE output)
    Total available PoE 720W
    Max. PoE wattage per port by PSE PoE: 15.4W
    PoE+: 30W
    PoE++: 60W
    Voltage range PoE mode PoE: 44—57V
    PoE+: 50—57V
    LCM display (1) 1.3" touchscreen
    Button Factory reset
    Operating temperature -5 to 40° C (23 to 104° F)
    Operating humidity 10 to 90% noncondensing
    Certifications CE, FCC, IC
    Etherlighting™
    Ethernet Locating
    Speed/link
    Native VLAN/network
    SFP+ Locating
    Speed/link
    Native VLAN/network
    System Status
    RPS Status
    Application Requirements
    UniFi Network Version 8.0.24 and later
