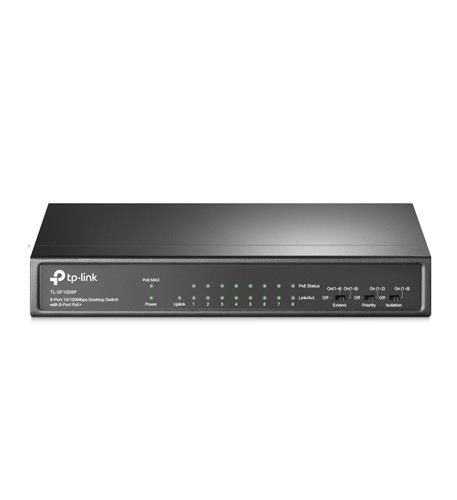

TP Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
Product Highlights
Model#: TL-SF1009P
Sku: IT4889
Out of stock
Your Price: N/A
SKU: TL-SF1009P
9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
TL-SF1009P is an unmanaged switch with 9 10/100Mbps ports that requires no configuration and provides 8 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Power Over Ethernet
8 of the 9 Auto-Negotiation RJ45 ports (port 1 to port 8) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).
Overload Arrangement
TL-SF1009P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is ≥ 65 W*, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Intelligent Power Management
Priority (port 1 = port 2 = port 3 > port 4): This function will help protect the system when the system power is overloaded. For example, port 1, 2 and 4 is using 20 W (maximum power per port is 30 W); the system power is 60 W in total. If there is an additional PD inserted to port 3 with 20 W, and then the system will cut off the power of port 4 because of the overloaded power, this means port 1, 2, and 3 will use 20 W, no power will be supplied to port 4.
Highlight Performance
- Up to 250 m PoE power supply and data transmission under Extend Mode**.
- Priority Mode ensures high priority of port 1–2 to guarantee the quality of sensitive application.
- Isolation Mode easily divides traffic for port 1–8 to avoid snooping and tampering, which improves LAN security and performance.
TL-SF1009P is easy to install and use. It requires no configuration and installation. With desktop and wall mountable design, outstanding performance and quality, the TP-Link 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ TL-SF1009P is a great selection for expanding your network.
SPECIFICATIONS
Specifications TL-SF1009P
| HARDWARE | |
| Interface | • 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports) • AUTO Negotiation • AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter (Output: 53.5VDC / 1.31A) |
| Packet Forwarding Rate | 1.3392 Mpps |
| PoE Ports (RJ45) | • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8 • Power Supply: 65 W |
| Backbound Bandwidth | 1.8 Gbps |
| Mac Address Table | 2K |
| Jumbo Frame | 2 KB |
| Switching Capacity | 1.8 Gbps |
| Dimensions ( W x D x H ) | 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm) |
| Max Power Consumption | • 3.6 (220/50 Hz. no PD connected) • 77.08 (220/50 Hz. with 65 W PD connected) |
| Max Heat Dissipation | • 12.28 BTU/h (no PD connected) • 262.84 BTU/h (with 65 W PD connected) |
| SOFTWARE | |
| Transmission Method | Store-And-Forward |
| Advanced Functions | • Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission) • Priority Mode Button (Ports 1–2) • Isolation Mode Button (Ports 1–8) • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Environment | • Operating Temperature: 0–40 ? (32–104 ?) • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
