EAP235-Wall

TP-Link

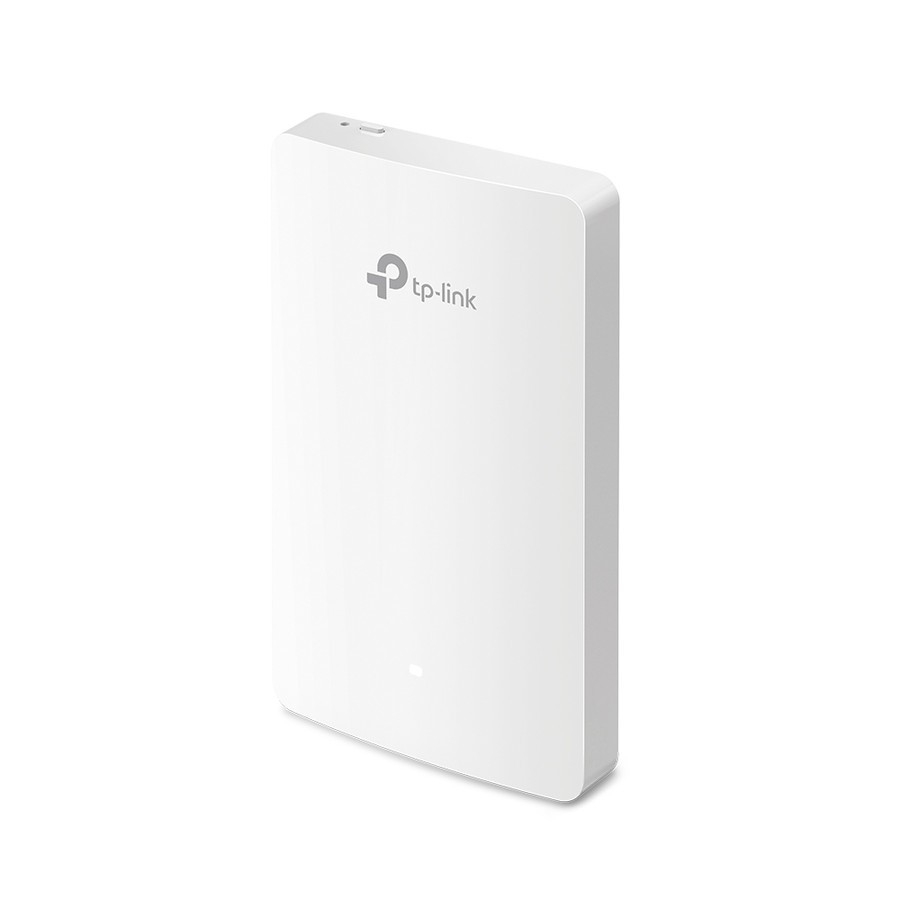

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point


Product Highlights
  • Omada SDN Ready: Ready for Omada SDN controller for centralized management and monitoring.
  • Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds.
  • Four Gigabit Ports: 4 Gigabit Ethernet ports, one uplink and three access ports. PoE pass-through is available on one of the access port providing power for desk phones, cameras or other PoE devices.
  • Centralized Management: Cloud access and Omada app for mobility and easy management.
  • Elegant Appearance: Ultra slimmest and conspicuous design blends the access point into the walls of hotel rooms, hospitals, offices, and dormitories.

    • Model#: EAP235-Wall

    Sku: IT4884



    MSRP: $79.99


    Out of stock

    Your Price: $79.99


    SKU: EAP235-Wall

    Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point

    Dedicated Complete, Private Wi-Fi Network in Each Room

    An EAP in each room allows guests to enjoy their own private Wi-Fi network that’s fast, delivering a strong signal, and providing corner to corner coverage.

    Absolute Thinnest, Inconspicuous Design

    The thinnest wall plate AP available—only 15 mm—featuring a sleek, minimalist appearance. Designed to blend in with the décor of hotel rooms, hospitals, offices and school dormitories, to deliver powerful Wi-Fi without clashing with the room.

    Effortless Deployment with PoE Powered

    With 802.3af/802.3at Power over Ethernet supported there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go.

    Quick, Simplified Installation

    EAP235-Wall is easy to install, so extra cost, time, or professional knowledge are completely unnecessary.

    Full Gigabit Ports to Bridge Network

    Equipped with four Gigabit data ports (1*uplink + 3*downlink), one downlink port offering PoE pass-through, to connect multiple devices to your gigabit network. Wired devices like VoIP phones can be powered with no need for extra electrical cables.

    Omada SDN—Smarter Cloud Solution for Business Networking

    Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

    Hassle-Free Centralized Cloud Management:

    100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.

    SPECIFICATIONS

    Specifications EAP235-Wall

    HARDWARE FEATURES
    Interface Uplink port: One 10/100/1000 Mbps Ethernet Port, accepts 802.3af or 802.3at PoE Access ports: Three 10/100/1000 Mbps Ethernet Ports with one
    Physical Security Lock Yes
    Button Reset
    Power Supply 802.3af/802.3at PoE
    Power Consumption 9.8 watts 24.4 watts with 13w PoE output
    Dimensions 5.6 × 3.4 × 0.8 in. 143 × 86 × 20 mm
    Antenna 2.4 GHz: 2× 4 dBi 5 GHz: 2× 4 dBi
    Mounting Wall Plate Mounting
    WIRELESS FEATURES
    Wireless Standards IEEE 802.11a/b/g/n/ac
    Frequency 2.4 GHz and 5 GHz
    Signal Rate 5 GHz: Up to 867 Mbps 2.4 GHz: Up to 300 Mbps
    Wireless Functions 16 SSIDs (Up to 8 SSIDs on each band) Enable/ disable SSID broadcast Automatic channel assignment Transmit power control (adjustable in 1 dBm step) QoS (WMM) Band steering Beamforming Load balance Rate limit Scheduled reboot Wireless scheduled on/off Wireless Statistics based on SSID, access point, or client
    Wireless Security Captive portal authentication Access control list Wireless MAC address filtering Wireless isolation between clients SSID to VLAN Mapping LAN port-based VLAN Rogue AP detection 802.1X EAP support 64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise
    Transmission Power ≤21 dBm (2.4 GHz) ≤21 dBm (5 GHz)
    MANAGEMENT
    Omada App Yes
    Centralized Management Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller
    Cloud Access Yes
    Email Alerts Yes
    LED ON/OFF Control Yes
    Management MAC Access Control Yes
    SNMP v1, v2c
    System Logging Local/Remote Syslog Local/ remote syslog
    SSH Yes
    Web-based Management HTTP/ HTTPS
    L3 Management Yes
    Multi-site Management Yes
    Management VLAN Yes
    OTHERS
    Certification FCC, RoHS
    Package Contents Omada AC1200 Wireless Gigabit Wall Plate Access Point EAP235-Wall Installation guide Mounting screw
    Environment Operating temperature: 0–40 ? (32–104 ?) Storage temperature: -40–70 ? (-40–158 ?) Operating humidity: 10–90% RH non-condensing Storage humidity: 5–90% RH non-condensing

    Datasheet

    PDF File TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point
