Ubiquiti Networks UA-LOCK-ELECTRIC Acess Eletric Lock
Product Highlights
Model#: UA-LOCK-ELECTRIC
Sku: IT4858
MSRP: $89.99
Out of stock
Your Price: $89.99
MODEL: UA-LOCK-ELECTRIC

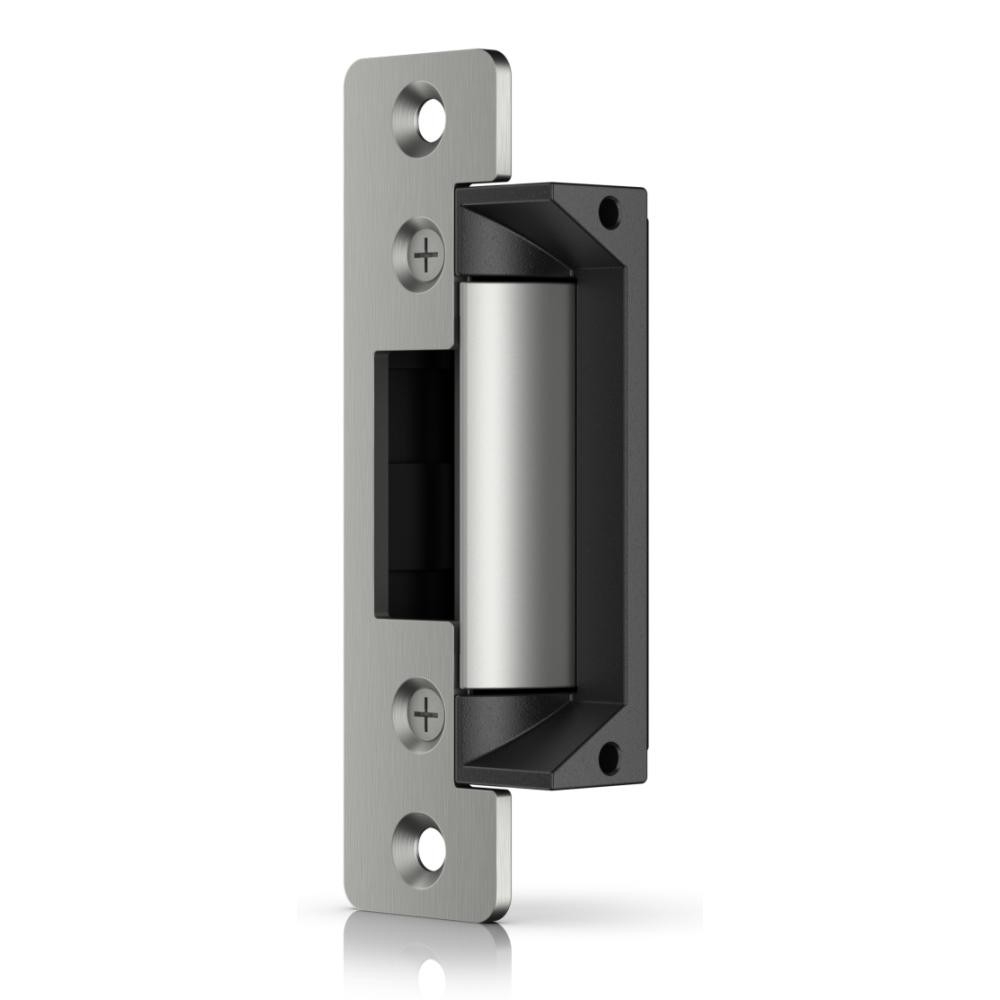

Fail-secure electric strike lock that connects to a UniFi Access Hub (UA Hub).
Features:
- Holds up to 1,200 kg (2,645 lb)
- Can be installed on an aluminum, steel, or wooden door frame
- ANSI-compliant design
SPECIFICATIONS UA-LOCK-ELECTRIC
| Weight | 2 lbs, volume 0 |
| Dimensions |
Lock body: 80 x 40 x 35 mm (3.15 x 1.57 x 1.38") Short front plate: 124 x 32 x 3 mm (4.88 x 1.26 x 0.12") Long front plate: 202 x 36 x 3 mm (7.95 x 1.42 x 0.12") |
| Weight |
Lock body: 185 g (6.5 oz) Short front plate: 50 g (1.8 oz) Long front plate: 130 g (4.6 oz) |
| Enclosure materials |
Lock body: zinc alloy Front plate/latches: stainless steel |
| Hardware | |
| Voltage | 12VDC |
| Current power | 400mA ±10% |
| Wiring connection | Connect the two screw terminal separately to powered lock relay on UA-Hub: NO, COM |
| Lock type |
Fail secure lock Single door |
| Lock holding force | 1,200 kg (2,645 lb) |
| Suitability |
Wooden Steel Aluminum |
| Screw terminal | + and - |
| Operating temperature | -10 to 45° C (14 to 113° F) |
| Operating humidity | 5 - 90% noncondensing |
| Certifications | FCC, IC, CE |
