354134

Manhattan

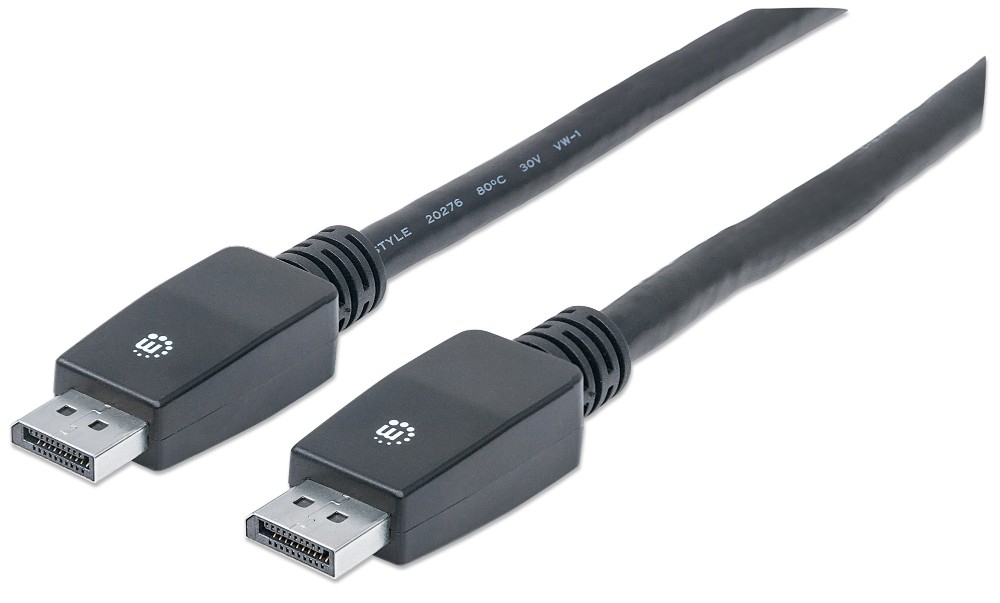

Manhattan 354134 4K@60Hz DisplayPort Monitor Cable



Product Highlights
  • DisplayPort 20-pin male to DisplayPort 20-pin male with latching connections and strain relief boots
  • Delivers high-bandwidth, 10.8 Gbps, digital audio/visual signals from source to display — up to 4Kx2K@60Hz
  • 4K, UHD resolution supports video resolution four times 1080p; up to 1080p resolution in 3D and Deep Color
  • Model#: 354134

    Sku: IT4850



    MSRP: $31.99

    In Stock

    Your Price: $25.00






    Sku:354134

    High-definition performance for personal computing

    Manhattan DisplayPort cables deliver both high-definition digital audio and video signals between desktop or notebook computers and an output device. The 20-pin connector is small and compact but offers 10.8 Gbps bandwidth, Deep Color and 24-bit, 8-channel uncompressed audio capability. It's ideal for use with DisplayPort-equipped computers, flat-panel displays, slim-profile devices and many consumer electronics including Blu-ray players and game consoles. Full foil and braided shielding, molded boots with strain relief, protective PVC jackets and gold-plated connections ensure that Manhattan DisplayPort Cables provide maximum conductivity and clear, crisp signal transmissions with reduced EMI interference and distortion.

    Features:

    • DisplayPort 20-pin male to DisplayPort 20-pin male with latching connections and strain relief boots
    • Delivers high-bandwidth, 10.8 Gbps, digital audio/visual signals from source to display — up to 4Kx2K@60Hz
    • 4K, UHD resolution supports video resolution four times 1080p; up to 1080p resolution in 3D and Deep Color
    • Dolby and DTS-HD 2/5.1/7.1/8 uncompressed surround sound audio pass-through
    • Fully shielded to reduce EMI and other interference sources
    • Supports the HDCP and DPCP content protection standards
    • Lifetime Warranty
    • Standards and Certifications
    • UL 20276
    • DisplayPort 1.1
    • ISO 9002
    • General
    • Bandwidth: 10.8 Gbps at 600 MHz
    • Meets or exceeds existing DisplayPort standards
    • Length: 10 m (33 ft.)
    • Connectors
    • DisplayPort 20-pin male with latches (2)
    • Nickel plated
    • Gold-plated contacts
    • ABS boots, built-in PVC strain relief
    • Cable
    • 24 AWG
    • Shielding: aluminum and Mylar braid
    • Withstanding voltage: 300 VDC
    • Insulation resistance: 5 MΩ
    • Contact resistance: 10 Ohms
    • Current rating: 0.5 A DC
    • Conductive resistance: 5 Ohms
    • Thermal plastic casing
    • Operating Environment
    • Operation Temperature: 0 - 50°C (32 - 122°F)
    • Storage Temperature: -25 - 85°C (-13 - 185°F)
    • Humidity (noncondensing): 0 - 96%
    • Package Contents
    • 4K@60Hz DisplayPort Monitor Cable

    Datasheet

    PDF File Manhattan 354134 4K@60Hz DisplayPort Monitor Cable
