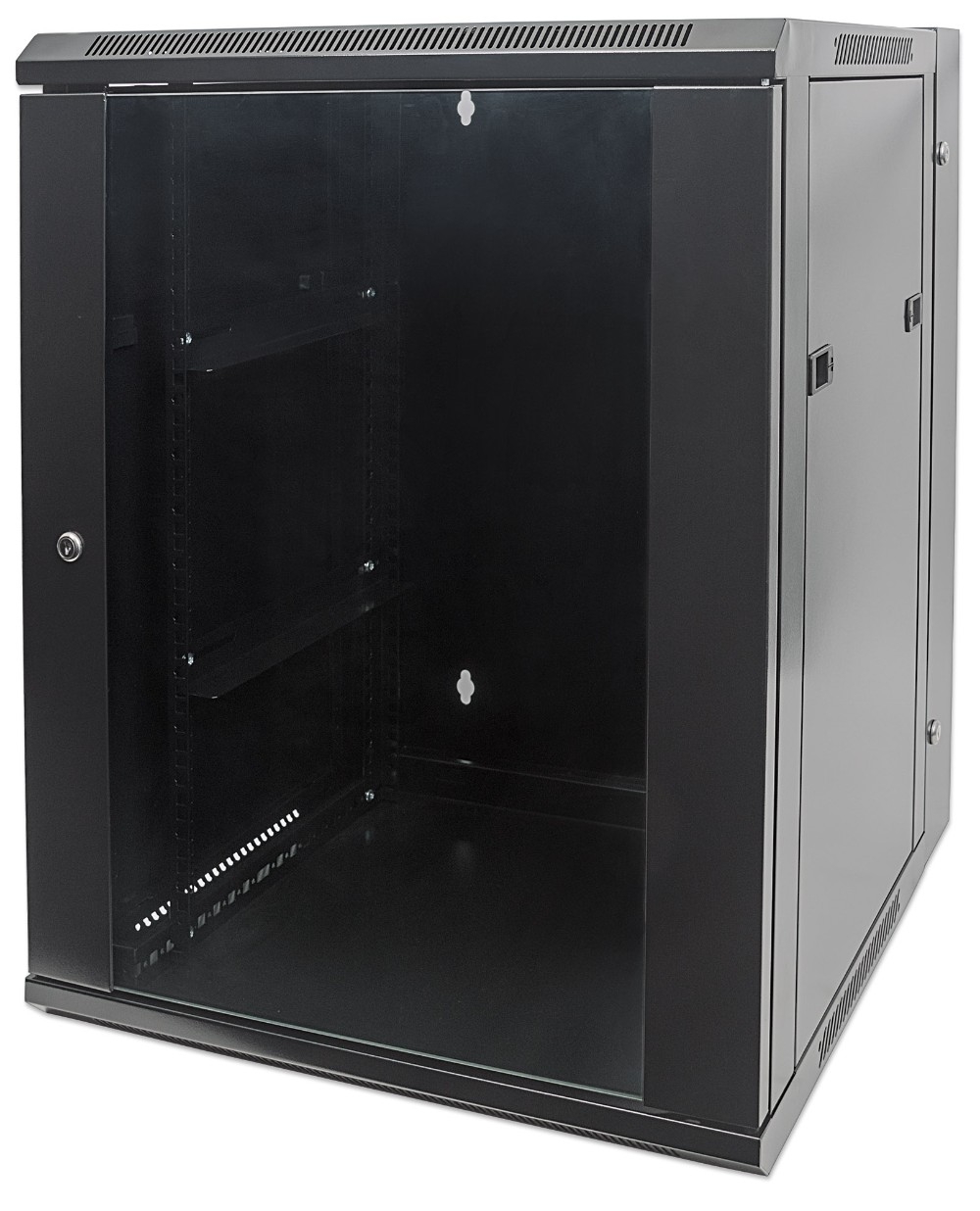

Intellinet 712019 19' Double Section Wallmount Cabinet



Product Highlights
  • Ideal for 19 inches rackmount applications
  • Maximum static load of 30 kg
  • Usable depth: 425 mm (16.73 in.)
  • Model#: 712019

    Sku: IT4811



    MSRP: $389.99


    Out of stock

    Your Price: $319.99


    Sku:712019

    Intellinet Network Solutions Double-Section wallmount cabinets offer you a flexible solution for your network installations. The tempered-glass door, easily removable side panels and cold-rolled galvanized steel are just some of the top quality workmanship and materials that are standard. These cabinets ship completely assembled for a quick and easy installation.

    Features:

    • Ideal for 19" rackmount applications
    • Maximum static load of 30 kg
    • Usable depth: 425 mm (16.73 in.)
    • Tempered-glass door can be opened more than 180°
    • Cable entry via top panel
    • Rear door for easy access to back of cabinet
    • Cold-rolled, galvanized SPCC steel with up to 1.2 mm thickness
    • Reversible Front door
    • Easily removable side panels
    • Ships assembled
    • Three-Year Warranty
    • General
    • 19"
    • Height: 15U
    • Color: Black RAL9005
    • Complies with: ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7
    • Physical
    • 770 (h) x 600 (w) x 550 (d) mm
    • 30.3 (h) x 23.6 (w) x 21.7 (d) in.
    • Usable depth: 425 mm (16.73 in.)
    • Maximum static load: 30 kg (66 lbs.)
    • Package Contents
    • Double section wall mount
    • Installation hardware including tool, 20x M6 Sets and 6x Keys

    Datasheet

    PDF File Intellinet 712019 19' Double Section Wallmount Cabinet
