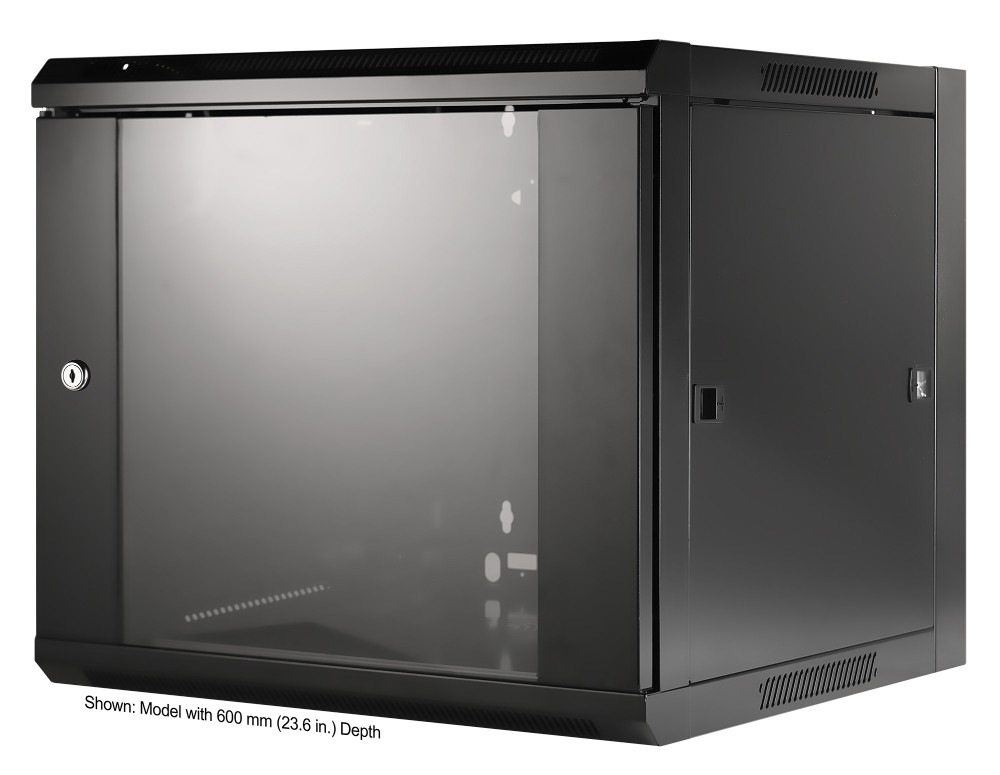

Intellinet 711777 19' Wallmount Cabinet



Product Highlights
  • Ideal for 19 inches rackmount applications
  • Maximum static load of 60 kg
  • Usable depth: 270 mm (10.63 in.) to 350 mm (13.78 in.)
  • Model#: 711777

    Sku: IT4806



    MSRP: $287.99

    In Stock

    Your Price: $229.99






    Sku:711777

    Intellinet Network Solutions wallmount cabinets offer you a flexible and comprehensive solution for your network installations. Top quality materials and workmanship include cold-rolled, galvanized steel frame and a tempered-glass door; while the flat-pack (unassembled) shipping* saves you space and money.

    *Completely assembled versions are available in certain countries.

    Features:

    • Ideal for 19" rackmount applications
    • Maximum static load of 60 kg
    • Usable depth: 270 mm (10.63 in.) to 350 mm (13.78 in.)
    • Tempered-glass door can be opened more than 180°
    • Cable entry via rear or top panel
    • Cold-rolled, galvanized SPCC steel with up to 1.2 mm thickness
    • Reversible Front door
    • Easily removable side panels
    • Ships flatpacked
    • Three-Year Warranty
    • General
    • 19"
    • Height: 9U
    • Color: Black RAL9005
    • Complies with: ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7
    • Dimensions
    • 500 (h) x 570 (w) x 450 (d) mm
    • 19.7 (h) x 22.4 (w) x 17.7 (d) in.
    • Usable depth: 270 mm (10.63 in.) to 350 mm (13.78 in.)
    • Package Contents
    • 2 depth-adjustable mounting rails
    • Installation hardware including tool, 10x M6 Sets and 2x Keys
    • There is a 2-piece set of spare rails available for this product by the model number shown:
    • #712446
