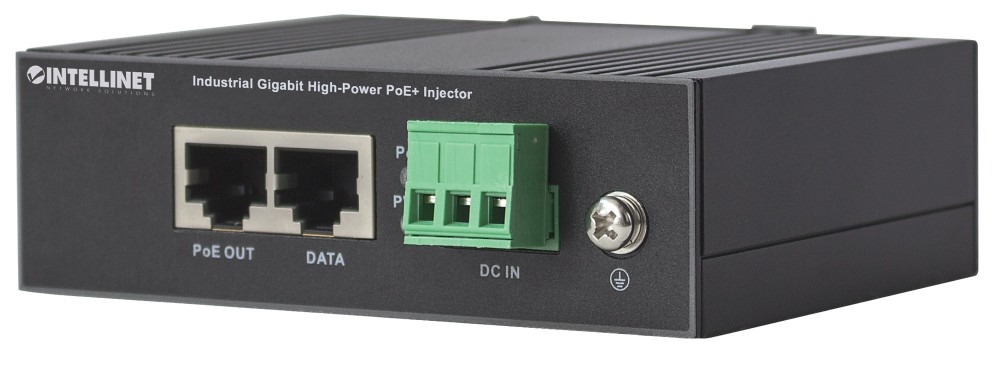

Intellinet 561365 Industrial Gigabit High-Power PoE+ Injector



Product Highlights
  • Full IEEE802.3af, IEEE802.3at compliance
  • Up to 30 W of power on two pairs
  • Auto-detection of any IEEE802.3af or IEEE802.3at powered device (PD)
  • Model#: 561365

    Sku: IT4784



    MSRP: $112.99

    In Stock

    Your Price: $89.99






    Sku:561365

    Get power and data over your existing LAN cable.

    The Intellinet Network Solutions Industrial Gigabit High-Power PoE+ Injector connects your IEEE 802.3af/at-compliant products to a non-PoE LAN switch port. The injector can be used to connect a wireless access point, IP phone, network camera or any IEEE 802.3af/at-powered device (PD) to a switch. The device has an output power rating of up to 30 watts, enough for most of the common PoE devices.

    Reduce Wiring Costs

    This smart solution avoids the need to run AC power lines for your wireless access point, network camera or IP phone. Simply connect the PoE Injector to the LAN switch port, and use the existing LAN cabling to deliver DC power as well as transfer data.

    • Standards
    • IEEE 802.3af (Power over Ethernet)
    • IEEE 802.3at (High-Power PoE+ Power over Ethernet)
    • IEEE 802.3 (10Base-T Ethernet)
    • IEEE 802.3ab (Gigabit Ethernet)
    • IEEE 802.3u (100Base-TX Fast Ethernet)
    • General
    • Media support:
    • - 100Base-TX UTP/STP RJ45, 8 pin - 1000Base-T UTP/STP RJ45, 8 pin
    • Ports:
    • - One RJ45 1000 Mbps input port - One RJ45 1000 Mbps data and power output port - One DC input (terminal block)
    • Compatibility with:
    • - All IEEE 802.3at- and IEEE 802.3af-compliant PoE devicesCertifications:
    • FCC Class A Part 15B
    • CE
    • - EMI EN 55022 EN 61000-3-2 EN 61000-3-3 - EMS EN 61000-4-2 (ESD) EN 61000-4-3 (RS) EN 61000-4-4 (EFT) EN 61000-4-5 (Surge) EN 61000-4-6 (CS) EN 61000-4-8 (PFMF) - IEC 60068-2-32 (Free fall) 60068-2-27 (Shock) 60068-2-6 (Vibration)Power Pin Assignment
    • 3/6(+), 1/2(-)
    • MODE A power delivery (supplies power as end-span)
    • LED
    • PoE, Power
    • Power
    • DC input voltage: 45 – 56 V
    • DC 42 – 54 V (based on power input)
    • Environmental
    • Metal housing IP30
    • Dimensions: 78 (L) x 32 (W) x 103 (H) [mm] / 3.07 (L) x 1.26 (W) x 4.06 (H) [in]
    • Weight: 295 g (0.65 lbs.)
    • Operating temperature: -40 – 75°C (-40 – 167°F)
    • Operating humidity: 5 – 95% RH, non-condensing
    • Storage temperature: -40 – 85°C (-40 – 185°F)
    • Package Contents
    • Industrial Gigabit High-Power PoE+ Injector
    • User manual
