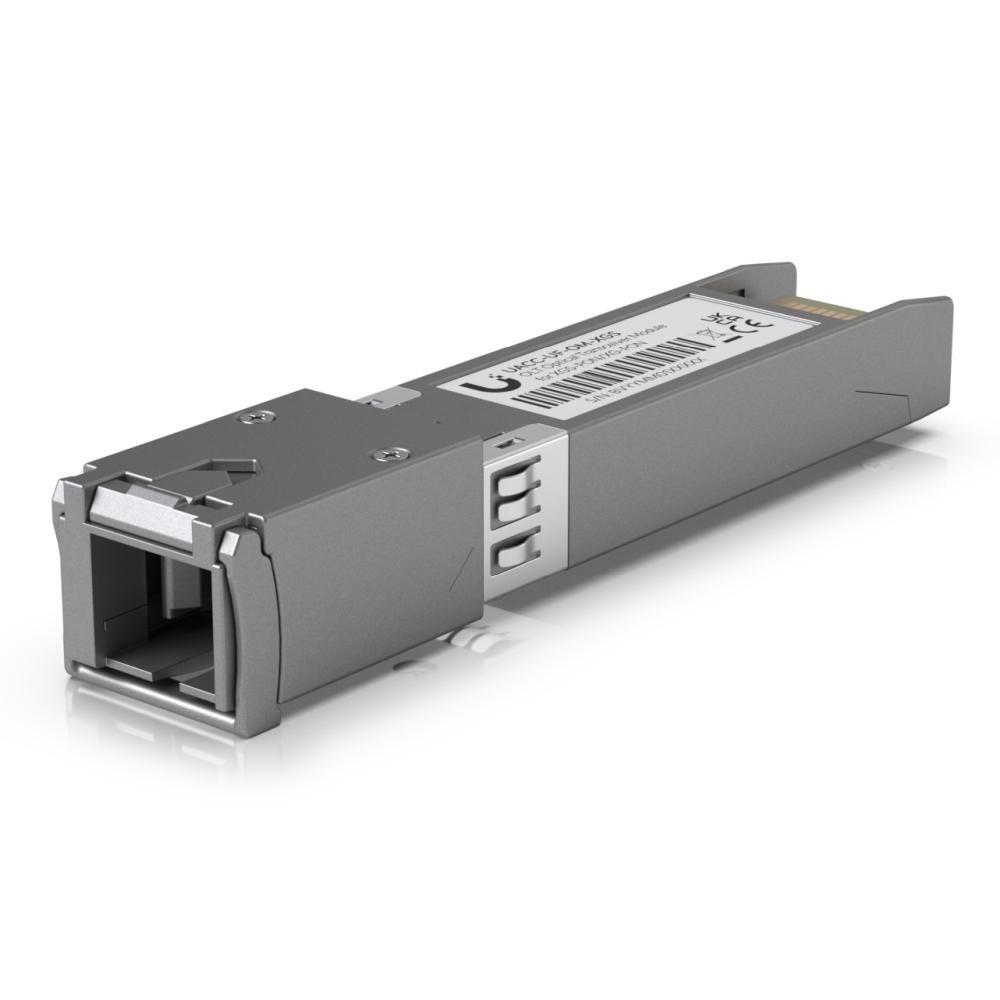

Ubiquiti Networks UISP Fiber XGS/XG Optical Transceiver
Product Highlights
Model#: UACC-UF-OM-XGS
Sku: IT4748
Out of stock
Your Price: N/A
MODEL: UACC-UF-OM-XGS
UISP Fiber XGS/XG Optical Transceiver
10 Gbps optical transceiver module designed for the UISP Fiber OLT XGS.
Note: *Fiber cable is not included.
Specifications UACC-UF-OM-XGS
| Supported media | Single-mode fiber |
| Connector type | (1) SC/UPC |
| TX wavelength | 1,577nm |
| RX wavelength | 1,270nm |
| TX power range | +4 to +7 dBm |
| RX power range | -9 to -26 dBm |
| Downlink data rate | 10 Gbps |
| Uplink data rate | 10 Gbps (XGS) / 2.5 Gbps (XG) |
| Max. power consumption | 2.6W |
| Max. cable distance | 20 km |
| Operating temperature | 0 to 70° C (32 to 158° F) |
| Storage temperature | -40 to 85° C (-40 to 185° F) |
| Packaging | Single pack |
| WARNING | CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 - Do not look into the ends of the fiber/optical cable or the SFP module while the converters are powered |
Datasheet
