UF-Instant

Ubiquiti

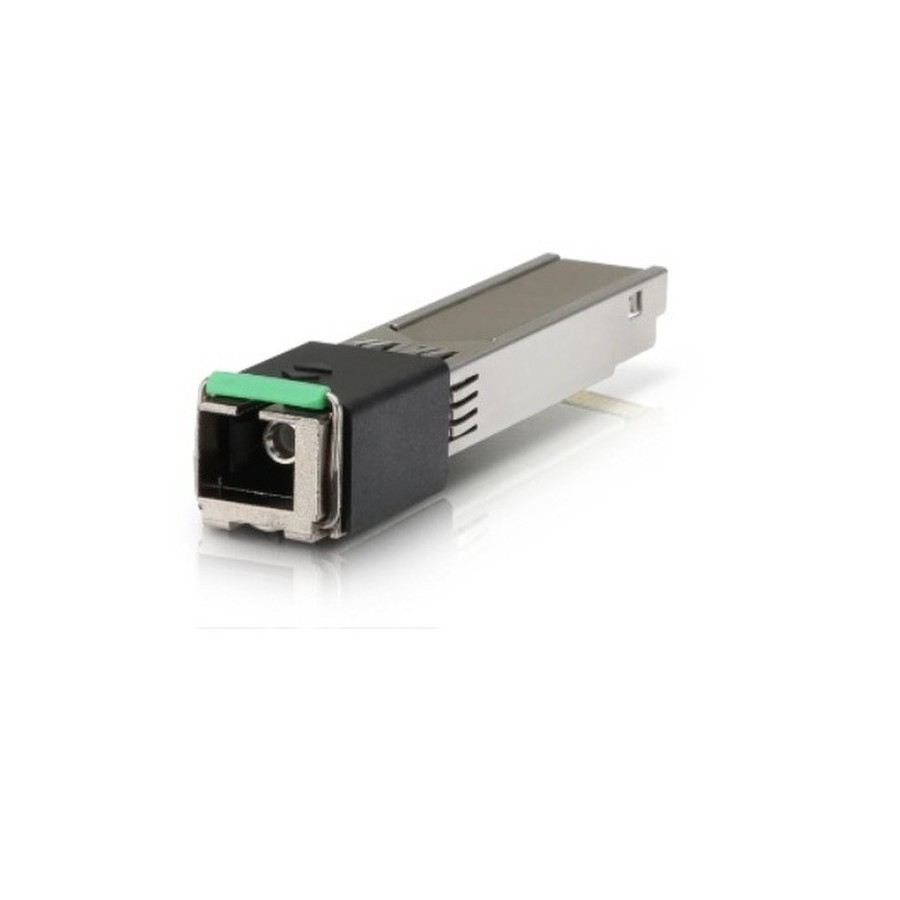

Ubiquiti Networks UFiber Instant Optical Transceiver


Product Highlights
  • High-Performance GPON CPE
  • Up to 2.4 Gbps Downstream and 1.2 Gbps Upstream GPON structure
  • Supports up to 20 km GPON Links
  • Powerful Layer 2/3 Management Features
  • (1) GPON WAN Port, SC/APC

    • Model#: UF-Instant

    Sku: IT4747



    MSRP: $45.00

    In Stock

    Your Price: $45.00






    MODEL: UF-Instant

    Ubiquiti Networks UF-Instant

    UFiber Instant Optical Transceiver

    Gigabit Passive Optical Network CPE, The UFiber Instant is a high-performance GPON CPE in the form factor of an SFP module. It features an SGMII Ethernet LAN port and is powered by SFP.

    Specifications UF-Instant

    Dimensions 69.46 x 13.70 x 11.30 mm
    (2.74 x 0.54 x 0.45")
    Weight 30 g (0.96 oz)
    Networking Interfaces (1) SC/APC, GPON WAN (1) SGMII Ethernet LAN
    Networking Interface Speeds
    GPON WAN, ITU G.984 2.488 Gbps Downstream
    1.244 Gbps Upstream
    GbE LAN 1 Gbps
    Management Interface In-Band Ethernet
    PON
    Normal Optical Power Range TX (Class B+): 1.5 to 5 dBm
    RX: -28 to -8 dBm
    Power Method SFP
    Power Supply 3.3V
    Max. Power Consumption 2W
    Supported Voltage Range 3.3V
    Processor Specs MIPS 100 MHz
    Memory Information 32 MB DDR
    Operating Temperature -10 to 45° C (14 to 113° F)
    Operating Humidity 10 to 90% Noncondensing
    Certifications CE, FCC, IC

    Datasheet

    PDF File Ubiquiti Networks UFiber Instant Optical Transceiver
