MODEL: UACC-CM-RJ45-1G

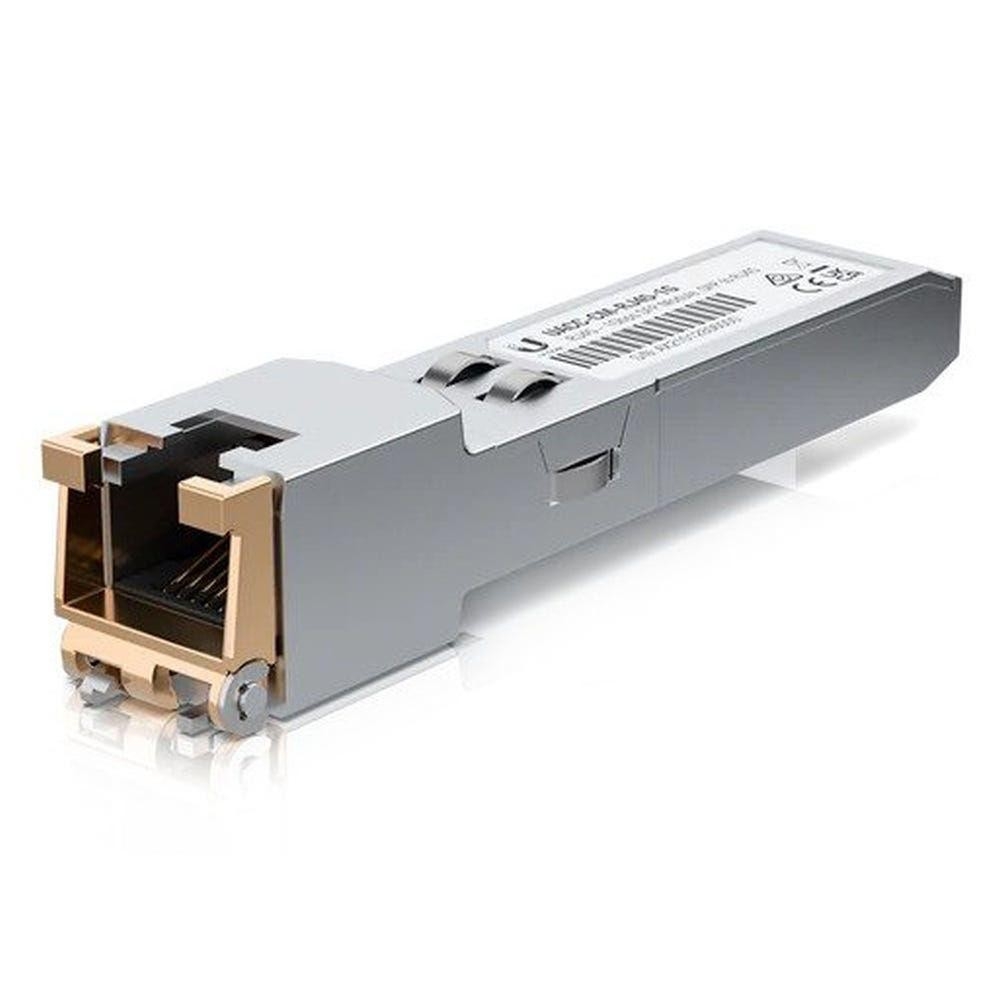

SFP+ to RJ45 transceiver module that delivers 10 Gbps speed via a converted Ethernet connection.
The 10G SFP+ to 10GbE RJ45 Module is a RJ45 transceiver that can be inserted into an SFP+ portin order to connect a copper Ethernet cable. Use this SFP+ to RJ45 module to deliver 10 Gbps speed over Ethernet connections spanning up to 30 meters.
Supported Media | Copper |
Connector Type | RJ45 |
Data Rate | 1/10 Gbps |
Max. Power Consumption | 3W |
Cable Distance | 1 Gbps (Cat 5e): 100 m, 10 Gbps (Cat 6A): 30 m |
Operating Temperature | 0 to 70° C (32 to 158° F) |
