C52iG-5HaxD2HaxD-TC

Mikrotik

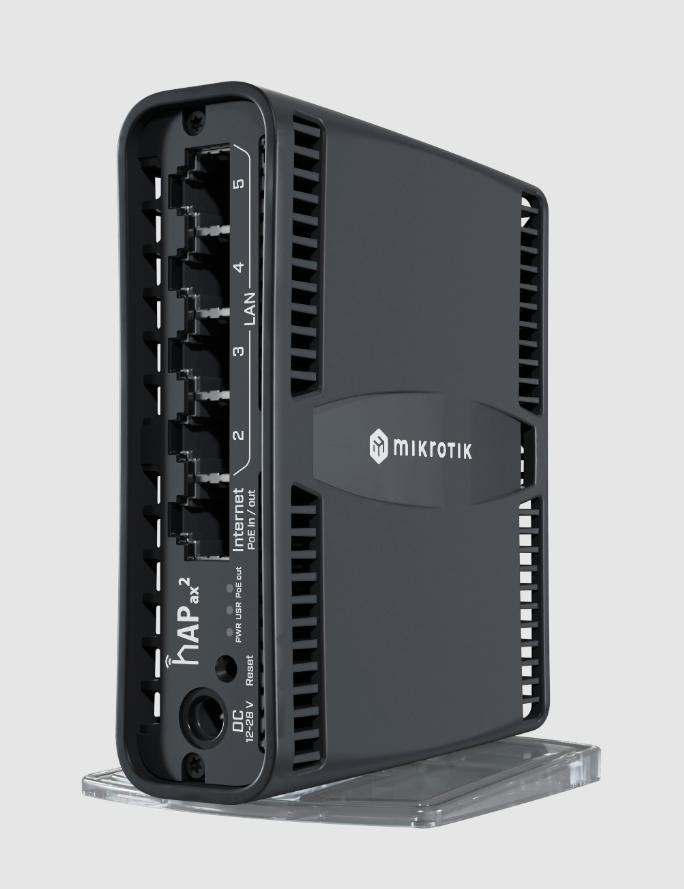

MIKROTIK C52IG-5HAXD2HAXD-TC 2.4/5GHZ HAP AX2 4/4.5DBI - INTERNATIONAL VERSION



Product Highlights
  • 802.11AX + Wave2
  • Strong Dual-Band, Dual-Chain Wireless (4-4.5 Dbi)
  • 5X Gigabit Ethernet Ports
  • WPA3
  • Different Mounting Options
  • Model#: C52iG-5HaxD2HaxD-TC

    Sku: IT4741



    MSRP: $102.00

    In Stock

    Your Price: $102.00






    MODEL: C52iG-5HaxD2HaxD-TC (INTL VERSION)

    hAP ax² (WiFi6) Quad-Core IPQ-6010 864 MHz, RAM 1GB, RouterOS, License level 4

    It’s time to supercharge your home network with the Generation 6 wireless network and our latest addition to the beloved hAP series. hAP ax² has everything you might need in a primary home access point – and more! Forget endless reviews and comparisons – this is the perfect device for 99% of homes.

    Wireless signal is now stronger than ever. Here are the two main ingredients of hAP ax’s success: a state-of-the-art dual-band, dual-chain 4-4.5 dBi radio, and the 802.11ax standard with Wave2 support. Let’s compare it to the previous generation: depending on your overall setup, that means up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum!

    Some might ask – why do we even need higher wireless speeds? Well, countless use cases have been previously impossible or difficult to pull off. For example, working with large media files over the wireless network – without the need to download and upload everything. Do you really have the time to wait? Grab a hAP ax² and save more time for the essential things in life!

    The modern quad-core CPU running at 864 MHz combined with a solid GB of RAM packs a hefty punch when it comes to heavy operations like complex firewall rules, IPsec hardware encryption, using more threads or experimenting with the most advanced RouterOS features. And with the addition of WPA3 advanced encryption support, you’re safer than ever before.

    Like the previous models, hAP ax² can be mounted vertically, horizontally, or even on the wall – without sacrificing the strong signal!

    With so many products and features on the market, even an experienced user can become confused. So it’s time for a simple truth for a simple choice: you can’t go wrong with a hAP ax² in most homes.

    SPECIFICATIONS

    Specifications

    CPU Quad-Core IPQ-6010 864 MHz
    CPU architecture ARM 64bit
    Size of RAM 1 GB
    Storage 128 MB, NAND
    Number of 1G Ethernet ports 5
    Number of 1G Ethernet ports with PoE-out 1
    Switch chip model IPQ-6010
    Wireless interface model QCN-5052
    Wireless 2.4 GHz 802.11ax dual-chain, 5 GHz 802.11 802.11ax dual-chain
    Wireless antenna max gain 2.4 GHz (4.5 dBi), 5 GHz (4 dBi)
    Dimensions 120 x 101 x 37 mm (4.72" x 3.97" x 1.45")
    Operating system RouterOS, License level 4
    Operating temperature -40°C to +50°C
    Powering
    Number of DC inputs 2 (PoE-in, DC jack)
    PoE-in input Voltage 18-28 V
    DC jack input Voltage 12-28 V
    PoE-out Passive PoE Ether1, max out per port output (input < 30 V): 600mA
    Max total out 0.6 A
    Total output power 16.8 W
    Power adapter nominal voltage 24 V
    Power adapter nominal current 1.2 A
    Max power consumption (without attachments) 12 W
    Max power consumption 27 W



    Wireless specifications
    Rate (2.4 GHz) Tx (dBm) Rx (dBm)
    1MBit/s 22 -100
    11MBit/s 22 -94
    6MBit/s 24 -96
    54MBit/s 22 -80
    MCS0 24 -96
    MCS7 21 -75
    MCS9 19 -70
    MCS11 17 -67
    Rate (5 GHz) Tx (dBm) Rx (dBm)
    6MBit/s 23 -96
    54MBit/s 20 -80
    MCS0 22 -96
    MCS7 19 -75
    MCS9 17 -70
    MCS11 15 -67

    Datasheet

    PDF File MIKROTIK C52IG-5HAXD2HAXD-TC 2.4/5GHZ HAP AX2 4/4.5DBI - INTERNATIONAL VERSION
