ER-6P

Ubiquiti

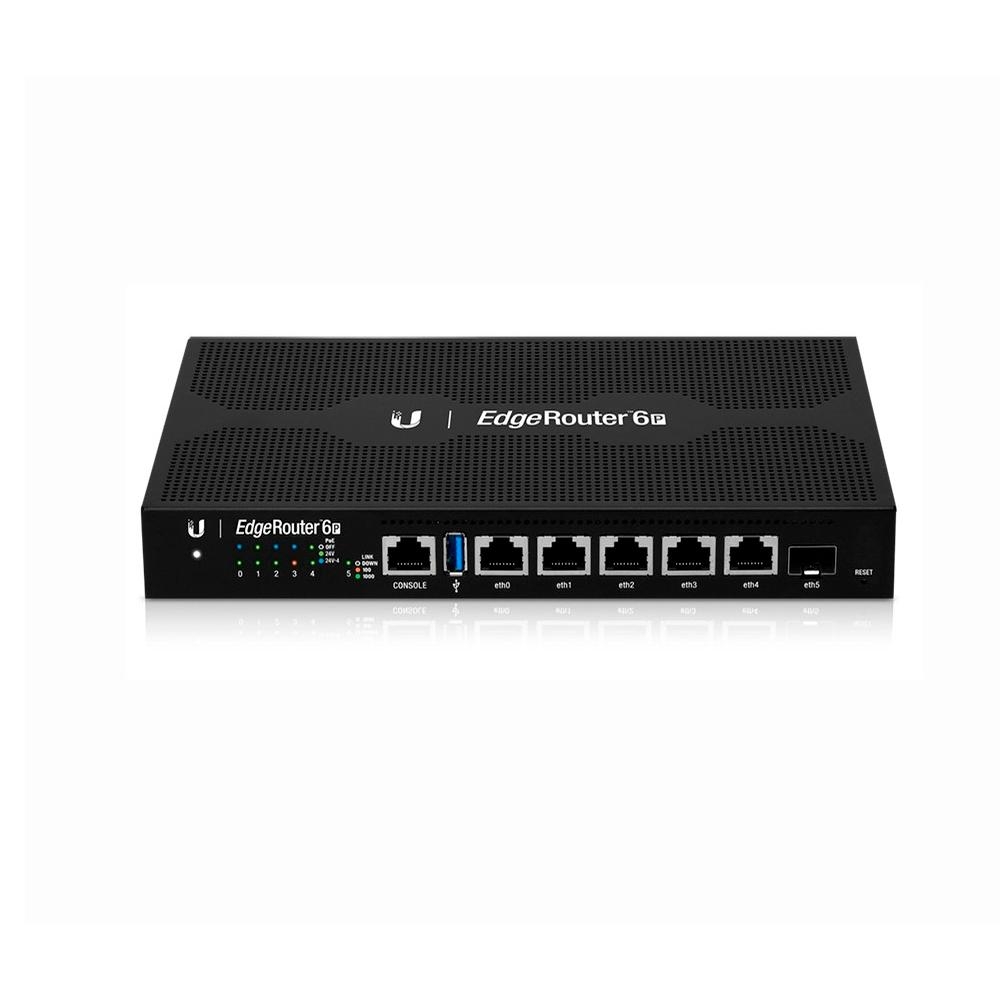

Ubiquiti ER-6P 6-Port Gigabit Router with 1 SFP Port


Product Highlights
  • 5 Gigabit RJ45 routing ports
  • PoE support on RJ45 ports: 24V 2-pair or 24V 4-pair
  • 1 Gigabit SFP port
  • 3.4 million packets per second for 64-byte packets
  • 6 Gbps for packets 256 bytes or larger in size

    • Model#: ER-6P

    Sku: IT4736



    MSRP: $279.99

    In Stock

    Your Price: $279.99






    Model: ER-6P

    Ubiquiti Networks introduces the EdgeRouter 6P, the next generation of routers for the EdgeMAX®platform. EdgeRouters combine carrier-class reliability with enterprise-level features in a compact and affordable unit.

    The EdgeRouter 6P offer Gigabit Ethernet ports and an SFP port for a fiber link. The EdgeRouter 6P also offers five configurable PoE ports to power airMAX® products.

    The EdgeRouter™ 6P delivers 3.4 million packets per second routing performance in a compact and cost-effective unit.

    Specifications ER-6P

    Dimensions 9.02 x 5.37 x 1.22 in
    Weight 1.61lb
    Max. Power Consumption 16 W (Excludes PoE Output)
    Power External AC Power Adapter, 60W (24V,2.5A)
    Power Input 110 -240VAC
    Button Reset
    LEDs Data Ports - Speed/Link/Activity, PoE : SFP Data Port - Link/Activity
    Networking Interfaces Manangement (1) RJ45 Serial Port (6) Ethernet Ports (Defaults eth0)
    Networking (5) 10/100/1000 RJ45 Ports with PoE (1) 1 Gbps SFP Port
    Processor 4-Core 1 GHz, MIPS64
    System Memory 1 GB DDR3 RAM
    On-Board Flash Storage 4 GB eMMC, 8 MB SPI NOR
    Rack-Mountable Yes
    Operating Temerpature -10 to 50degC (14 to 122degF)
    Operating Humidity 10 - 90% Noncondensing
    Certifications CE, FCC, IC
    PoE with 24VDC Power Adapter
    PoE Interfaces (5) 24V Passive PoE Ports, 2-pair (4, 5+; 7, 8-) and 4-pair
    Passive PoE Max. Wattage Per Port 24W (24V/1A, 4-pair)
    Voltage Range Passive PoE 24V

    Datasheet

    PDF File Ubiquiti ER-6P 6-Port Gigabit Router with 1 SFP Port
