RBwAPR-2nD&R11e-LR2

Mikrotik


MIKROTIK RBWAPR-2ND&R11E-LR2 2.4GHZ WAP LR2 KIT


Model#: RBwAPR-2nD&R11e-LR2

Sku: IT4713



MSRP: $151.00

In Stock

Your Price: $151.00






MODEL: RBwAPR-2nD&R11e-LR2

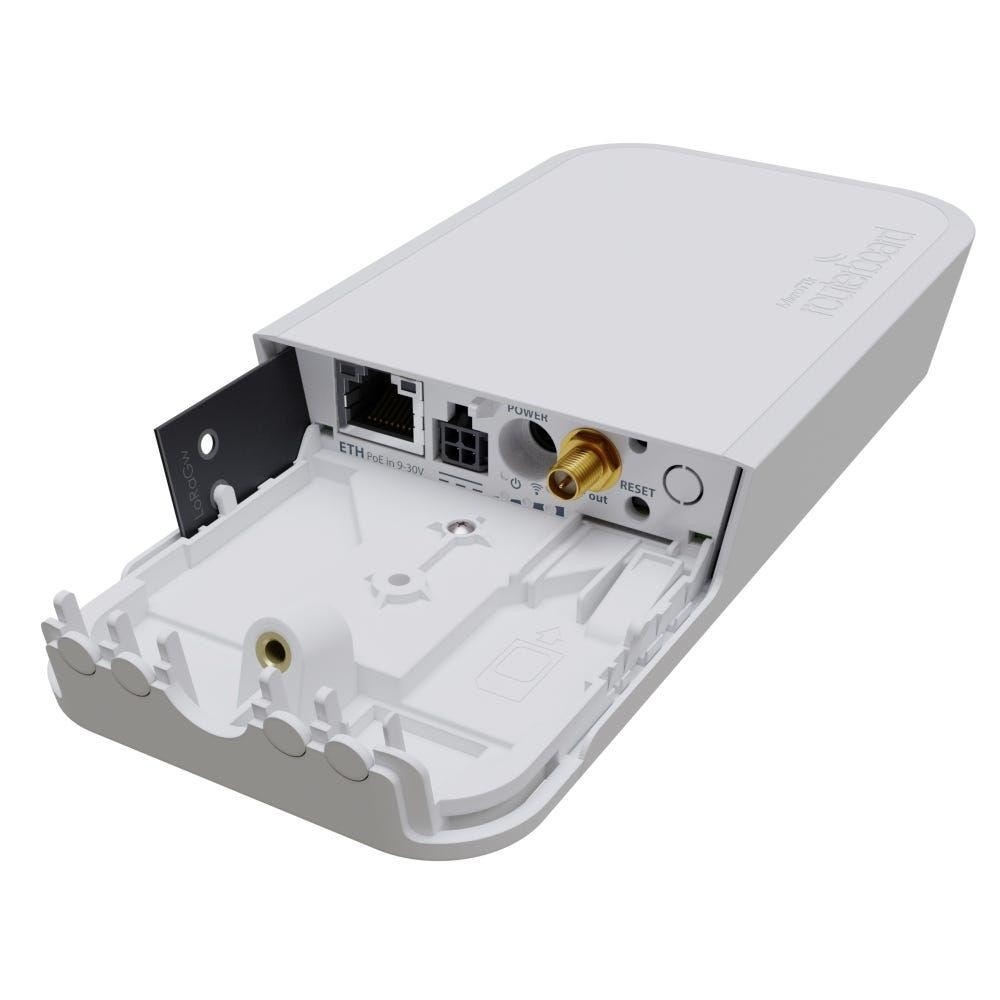

MikroTik RouterBOARD RBwAPR-2nD&R11e-LR2

wAP LR2 kit 2.4Ghz WLAN with 650 MHz CPU, 64MB RAM 1x 10/100 Ethernet port (PoE-in) RouterOS L4

Our newest out-of-the-box solution for LoRa® technology. Like the previous wAP LR kits, it contains a pre-installed UDP packet forwarder to any public or private LoRa® servers and an outdoor weatherproof wireless access point with 2.4 GHz WLAN interface and Ethernet port with PoE-in that could be used as a backend.

Here’s the difference: this device works with the 2.4 GHz frequency for LoRa® as well. That means significantly higher bandwidth, higher data rate, and less air time. And because of the Chirp modulation technology, it doesn’t interfere with the 2.4 GHz WLAN signal! A perfect solution for industrial setups with a high density of sensors.

There is a built-in 2 dBi WLAN / 4.7 dBi LoRa® antenna, but you can add an external antenna for extra coverage. We suggest using the TOF-2400-8V-4 Omni antenna for best results.

We’ve decided to keep the classic wAP form-factor that has been tested in many other MikroTik products – it can deliver excellent and stable performance in almost any weather conditions. Functional and non-intrusive design, astonishing durability, and great value remain at the core of this design.

The whole IoT community is exploring the 2.4 GHz LoRa® possibilities – join them and be among the first ones to benefit from the increased data rates.

SPECIFICATIONS

Specifications RBwAPR-2nD&R11e-LR2

Architecture MIPSBE
CPU QCA9531
CPU core count 1
RouterOS license 4
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40°C to 60°C
Powering
Number of DC inputs 3 (Automotive, DC jack, PoE-IN)
DC jack input Voltage 9-30 V
Automotive input Voltage 9-30 V
Max power consumption 8 W
FAN count Passive
PoE in Passive PoE
PoE in input Voltage 9-30 V
Wireless
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2
Wireless 2.4 GHz chip model QCA9531
Wireless 2.4 GHz generation Wi-Fi 4
Ethernet
10/100 Ethernet ports 1
Peripherals
Number of SIM slots 1 Modem (Mini SIM)
MiniPCI-e slots 1
Other
PCB temperature monitor Yes
Voltage Monitor Yes
Certification & Approvals
Certification CE, EAC, ROHS



Wireless Spec
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 22 -96
11MBit/s 22 -89
6MBit/s 20 -93
54MBit/s 18 -74
MCS0 20 -93
MCS7 16 -71
