POE-SPLT-4824AC-GBT

Tycon Power Systems

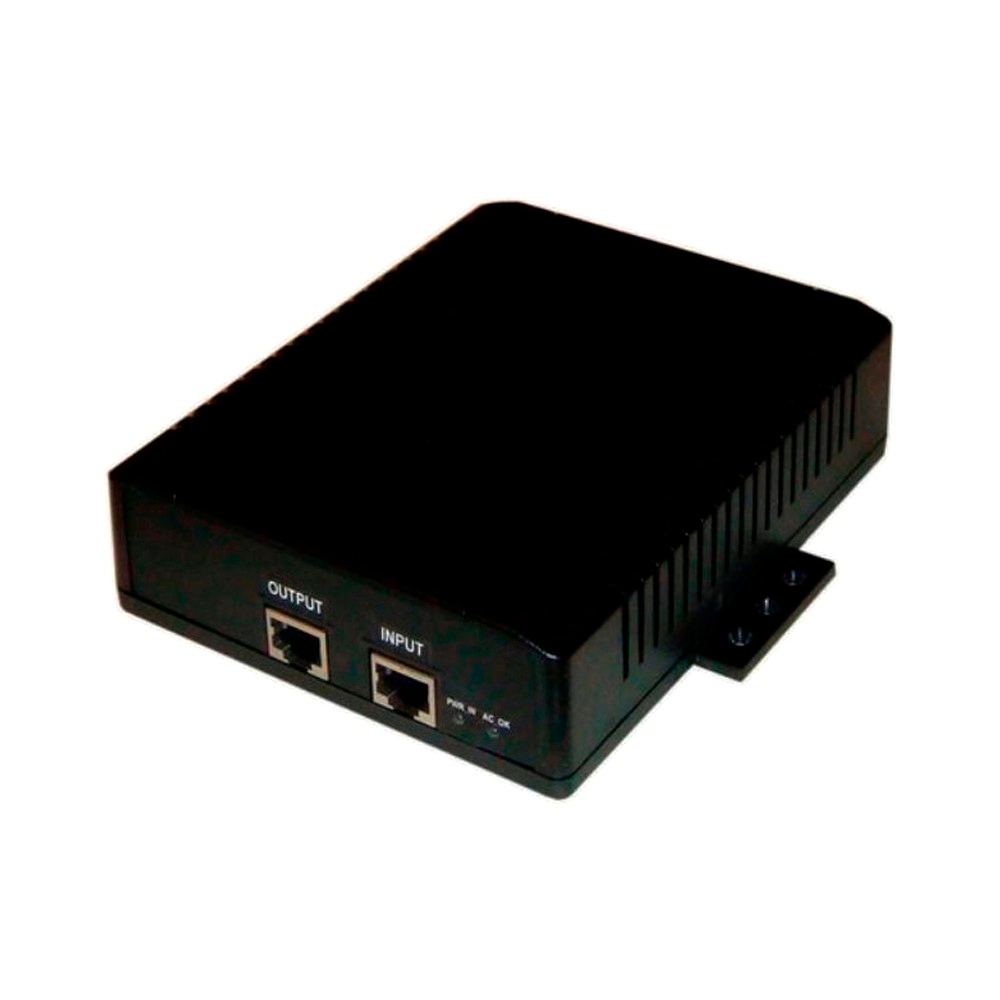

Tycon Power Systems POE-SPLT-4824AC-GBT 48VDC 802.3bt PoE 80W Gigabit



Product Highlights
  • • PoE Splitter
  • • Converts 802.3at/bt Input
  • • 24VAC 80W output
  • • High Temperature Operation
  • • DIN Rail Mounting
  • Model#: POE-SPLT-4824AC-GBT

    Sku: IT4684



    MSRP: $159.99

    In Stock

    Your Price: $159.99






    MODEL: POE-SPLT-4824AC-GBT

    The POE-SPLT-4824AC-GBT Active Splitters from Tycon Systems® offer a unique and high-performance Power over Ethernet (PoE) solution. They convert a DC PoE input voltage into a regulated 24VAC output, which is provided through a wire terminal connector that accepts up to 12AWG wire. Additionally, these splitters support Gigabit Ethernet, ensuring high-speed performance. Their isolated inputs and outputs maintain the safety and integrity of connected devices.

    Moreover, the POE-SPLT-4824AC-GBT features robust protection against surges, short circuits, overloads, and overvoltage, safeguarding your equipment and ensuring long-term performance. This splitter requires a 4-pair PoE input; otherwise, it limits the output to 40W.

    Furthermore, the unit includes LED indicators that display which pairs are powered. For example, a flashing LED indicates that only 2 pairs are powered, offering quick and easy status monitoring. This active splitter is ideal for applications requiring stable and regulated 24VAC power delivery, along with the high-speed performance of Gigabit Ethernet.

    In addition to these features, the compact design of the POE-SPLT-4824AC-GBT ensures easy installation and integration into existing systems. Its user-friendly setup reduces downtime, making it perfect for both commercial and industrial environments. Whether you’re powering remote devices or supporting high-speed data transmission, this splitter provides a reliable and efficient solution. With its advanced protection features and versatile compatibility, the POE-SPLT-4824AC-GBT is an excellent choice for ensuring consistent and stable power delivery across your network.

    Features

    • PoE Splitter
    • Converts 802.3at/bt PoE input to 24VAC 80W output
    • Runs cameras and other high power 24VAC devices from 48VDC PoE and battery systems
    • Short Circuit, Over Current and Over Voltage Protection
    • High Temperature Operation, DIN Rail Mounting

    Specifications POE-SPLT-4824AC-GBT

    Output Voltage 24VAC
    Output Current 3.34A @24VAC
    Output Power 80W with 4 pair PoE input
    Output Connector Wire Terminal (12AWG)
    Load Regulation 5%
    Line Regulation 1%
    POE Input (RJ45) 802.3bt or passive PoE 40 - 60VDC (4 pairs)
    Ethernet Speed 10/100/1000MB
    Efficiency 85% Min
    EMC Standards FCC Class B NE55022 Class B, CE
    Isolation Voltage 1500VDC
    Isolation Resistance 100M Ohms Minimum
    Operating Temperature -40 to +70°C (-40 to +158°F)
    Operating Humidity (RH) 5% - 90% non condensing
    Storage Temperature -40 to +85°C (-40 to +185°F)
    Dimensions (LxWxH) 150 x 140 x 40mm (5.9 x 5.5 x 1.6”)
    Weight 350g (12oz)

    Datasheet

    PDF File Tycon Power Systems POE-SPLT-4824AC-GBT 48VDC 802.3bt PoE 80W Gigabit
