MODEL: EZBR-DUAL-AC+

The EZ-Bridge® Dual AC+ is a dual radio, high power 27dBm (500mW), outdoor wireless bridge system operating in the 2.4GHz and 5GHz unlicensed frequency spectrum providing 5GHz throughput up to 900 Mb/sec. It complies with the 802.11a/b/g/n/ac standards to insure interoperability. The EZ-Bridge® Dual AC+ creates a 5GHz transparent wireless bridge between two networks up to 3 miles apart with good line of sight and provides a 2.4GHz access point at each side of the wireless link. This dual radio configuration gives full data bandwidth (300Mbps) on the 2.4GHz access points to support multiple wireless devices on both sides of the link. It supports VOIP, VPN, multiple MAC addresses and DHCP across the wireless link. It is the perfect plug and play solution for connecting the networks in two or more buildings, internet access sharing, remote video surveillance or remote network access. Multiple EZ-Bridge® Dual AC+ units can be connected in a mesh configuration to allow interconnecting more than two sites.

With its password verification, MAC address authentication, SSID suppression and advanced WPA encryption, the system provides strong wireless data security.

Installation is a snap because of the plug and play features which have been built into the system. Just install the antennas and plug in the PoE power inserters. The units will automatically find their peer and create a secure wireless network link. If changes to the pre-configured settings are desired, they can be easily done thru the built-in web interface from any point on either side of the network. There are no drivers or software that needs to be loaded to the computer.

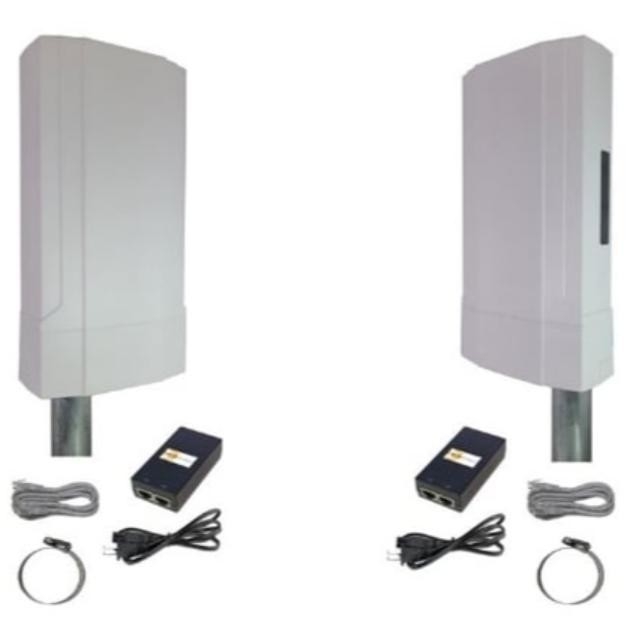

The EZ-Bridge® Dual AC+ comes complete with all the electronics that are needed for a point to point wireless network bridge installation; including 2 powerful 802.11a/b/g/n/ac MIMO antennas, Stainless Steel hose clamp for 1-2” pole (or wall mounting), 48V PoE (Power over Ethernet) power inserters with auto-ranging 120/240VAC input, and one 3ft Cat5 Ethernet patch cable. Customer to supply CAT5/6 cabling between the PoE inserter and the antenna.
