U6+-US
U6+-US picture 3

Ubiquiti

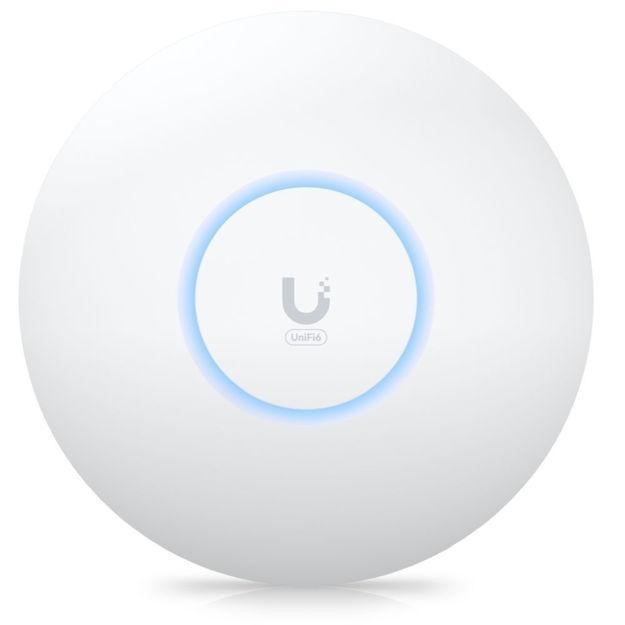

Ubiquiti Networks access point U6+-US UNIFI AP 6+ US



Product Highlights
  • 140 m² (1,500 ft²) coverage
  • 300+ connected devices
  • WiFi6 (2x2 MIMO)
  • Powered using PoE
  • Model#: U6+-US

    Sku: IT4602



    MSRP: $155.00

    In Stock

    Your Price: $155.00






    SKU: U6+-US

    A compact access point improving upon the U6 Lite by bringing higher performance and dual-band WiFi6 support. Ideal for small and medium-sized businesses.

    140 m² (1,500 ft²) coverage

    300+ connected devices

    WiFi6 (2x2 MIMO)

    Powered using PoE

    Dimensions Ø160 x 33 mm (Ø6.3 x 1.3")
    Weight Without mount: 338 g (0.75 lb)
    With mount: 413 g (0.91 lb)
    Enclosure materials Polycarbonate, aluminum
    Mount materials ABS, SGCC steel
    Hardware

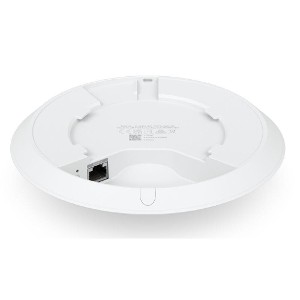

    Networking interface (1) GbE RJ45 port
    Management interface Ethernet
    Power method PoE
    Supported voltage range 44–57V DC
    Max. power consumption 9W
    Max. TX power
    2.4 GHz
    5 GHz

    23 dBm
    23 dBm
    MIMO
    2.4 GHz
    5 GHz

    2 x 2
    2 x 2
    Throughput rate
    2.4 GHz
    5 GHz

    573.5 Mbps
    2402 Mbps
    Antenna gain
    2.4 GHz
    5 GHz

    3dBi
    5.4 dBi
    Button Factory reset
    LEDs White/blue
    Operating temperature -30 to 60° C (-22 to 140° F)
    Operating humidity 5 to 95% noncondensing
    Certifications CE, FCC, IC
    Software
    WiFi standards 802.11a/b/g
    WiFi 4/WiFi 5/WiFi 6
    Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
    BSSID 8 per radio
    VLAN 802.1Q
    Advanced QoS Per-user rate limiting
    Guest traffic isolation Supported
    Zero-wait DFS Yes*
    *Supported with upcoming firmware versions.
    Concurrent clients 300+
    Software
    Management application UniFi Network: Version 7.3.76 and later
