Ubiquiti Networks U-Cable-C6-CMR UniFi Cable Cat6 CMR 23AWG 1000ft

Model#: U-Cable-C6-CMR

Sku: IT4535

MSRP: $225.00

In Stock

Your Price: $225.00

SKU: U-Cable-C6-CMR

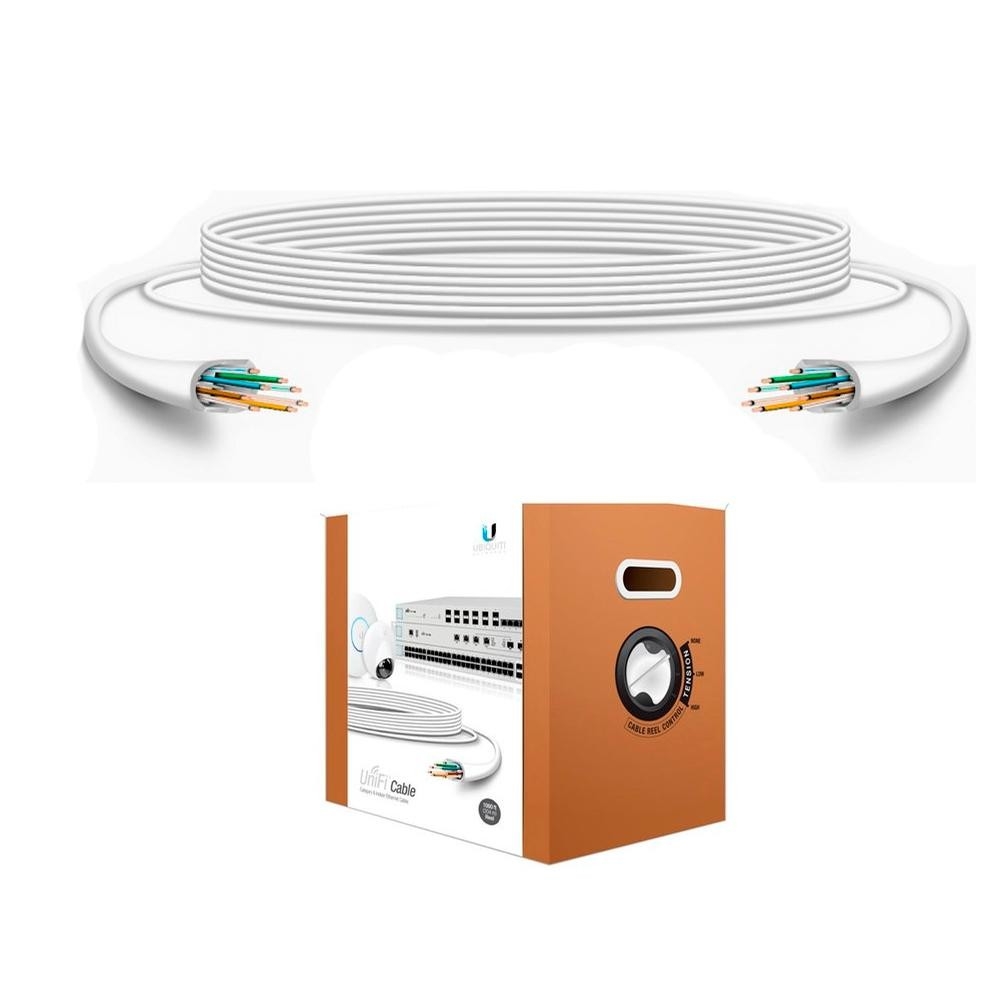

UniFi Indoor Cable Cat6 CMR/CMP

Category 6 Ethernet cable for high-speed deployments located in environments that require plenum-rated cabling

The U-Cable-C6-CMR/CMP is a Category 6 UTP (Unshielded Twisted Pair) cabling that supports speeds of up to 1Gbps. It uses 23 AWG solid copper conductor pairs and an anti-crosstalk divider, which improves pair isolation.

CMP (Communications Multipurpose cable, Plenum) cabling is for use in plenum areas where air is typically circulated in a building. Cables for these areas must adhere to strict manufacturing requirements, ensuring that they can be used in these spaces.

CMR (Communications Multipurpose cable, Riser) cabling is ame-retardant and can be run vertically between oors in non-plenum areas. U-Cable-C6-CMR is CMR re-rated (also called riser-rated), making it suitable for inwall and riser cabling applications.

We recommend using Category 6 Ethernet connectors to optimize performance and accommodate the size of the 23 AWG conductors.



  • Category 6 Unshielded Twisted Pair (UTP) cable
  • Communications Multipurpose Cable, Plenum (CMP)-rated, fire-resistant jacket
  • 1,000 ft (305 m)
  • 23 AWG solid copper conductor pair
  • Anti-crosstalk divider
  • For 1000BASE-T Ethernet applications

Specifications U-Cable-C6-CMP

Box Dimensions 474 x 346 x 458 mm (18.7 x 13.6 x 18")
Box Weight 14.75 kg (32.52 lb)
Cable Length 305 m (1000 ft)
Cable Color White
Cable Type Category 6
Shielding Type UTP
Flame Rating CMP
Conductor Wire Gauge 23 AWG
Conductor Type Solid Bare Copper
Jacket Material Low Smoke Flame Retardant PVC
Jacket Diameter 5.6 ± 0.2 mm
Bend Radius Min. 22.4 mm
Pulling Tension Max. 110 N
Storage Temperature -20 to 75°C (-4 to 167°F)
Installation Temperature 0 to 60°C (32 to 140°F)
Operation Temperature -20 to 60°C (-4 to 60°F)
Anti-Crosstalk Divider Yes
Ripcord Yes
Data Rate 10/100/1000 Base-T
Reference Bandwith Up to 600 MHz
Standards Electrical Transmission:
ANSI/TIA-568-C.2 (2009)
ISO/IEC 11801 (Edition 2.2)
IEC 61156-5 (Edition 2.1)
Flame Test NFPA 262 (CMP)
Material and Construction UL 444
CSA 22.2 NO.214
EU Directive 2011/65/EU (RoHS2)
EU Directive 2006/95/EC (LVD)
