CRS504-4XQ-IN

Mikrotik

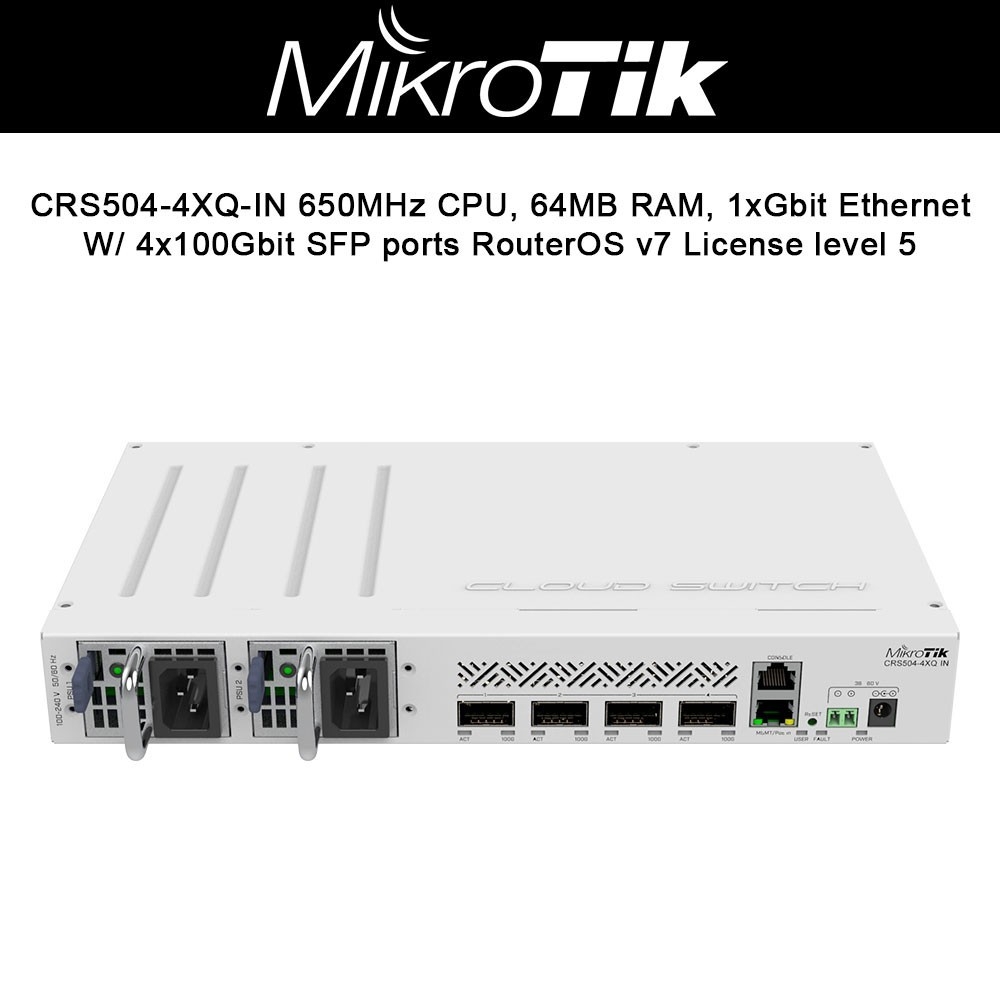

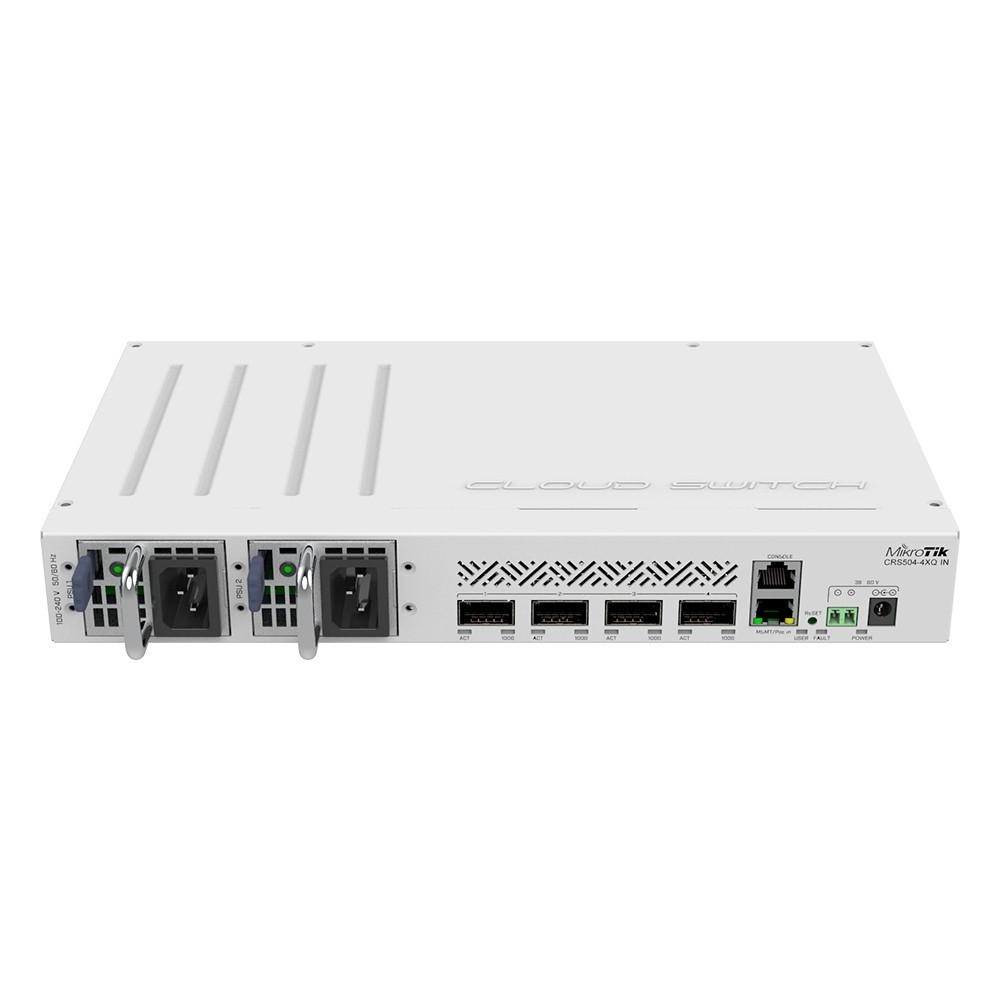

MikroTik CRS504-4XQ-IN Cloud Router Switch 650MHz 4xQSFP28



Product Highlights
  • 16x25 Gigabit Marvell Prestera Switch Chip
  • Multiple Powering Options: PoE-In, DC Jack, 2-PIN Terminal
  • Dual Hot-Swap Power Supplies
  • Compatible with 40G, 25G, 10G, and 1G Fiber Connections
  • 4x 100 Gigabit QSFP28 Ports
  • Model#: CRS504-4XQ-IN

    Sku: IT4306



    MSRP: $809.99

    In Stock

    Your Price: $809.99






    MODEL: CRS504-4XQ-IN

    There are four 100 Gigabit QSFP28 ports. Use them to connect other 100 Gigabit devices or grab a breakout cable to connect multiple 25 Gigabit devices: each port is connected to four 25 Gigabit lines, allowing you to connect 16 x 25 Gigabit devices. In fact, you can mix and match all kinds of connections this way: 100 Gigabits on one port, 40 Gigabits on the other, 4x25 Gigabits on the third, and maybe even some 10G or 1G cables on the fourth. Obviously, there is an Ethernet port for management purposes as well.

    We’ve been using this switch for quite some time now in the Genomics Data Network project. A high-capacity data network for our local scientists working on ground-breaking cancer treatments. Genome data can take up a lot of space, so you need exceptionally fast connections there. Also, with these devices, Latvia became the first Baltic country to establish a 100 Gigabit connection to the pan-European research network.

    Product code CRS504-4XQ-IN
    Architecture MIPSBE
    CPU QCA9531
    CPU core count 1
    CPU nominal frequency 650 MHz
    Dimensions 320 x 185 x 44 mm
    RouterOS license 5
    Operating System
    Size of RAM 64 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature

    -40°C to 70°C

    Number of AC inputs 2
    AC input range 100-240
    Number of DC inputs 3 (DC jack, PoE-IN, 2-pin terminal)
    DC jack input Voltage 36-57 V
    2-pin terminal input Voltage 36-57 V
    Frequency (Hz) 47-63
    Max power consumption 41 W
    Max power consumption without attachments 25 W
    Cooling type 2
    PoE in 802.3 bt
    PoE in input Voltage 43-57 V

    Datasheet

    PDF File MikroTik CRS504-4XQ-IN Cloud Router Switch 650MHz 4xQSFP28
