MikroTik RBSXTR&R11e-4G SXT 4G kit with enclosure RouterOS L3

Model#: RBSXTR&R11e-4G

Sku: IT4296

MSRP: $159.99

In Stock

Your Price: $159.99

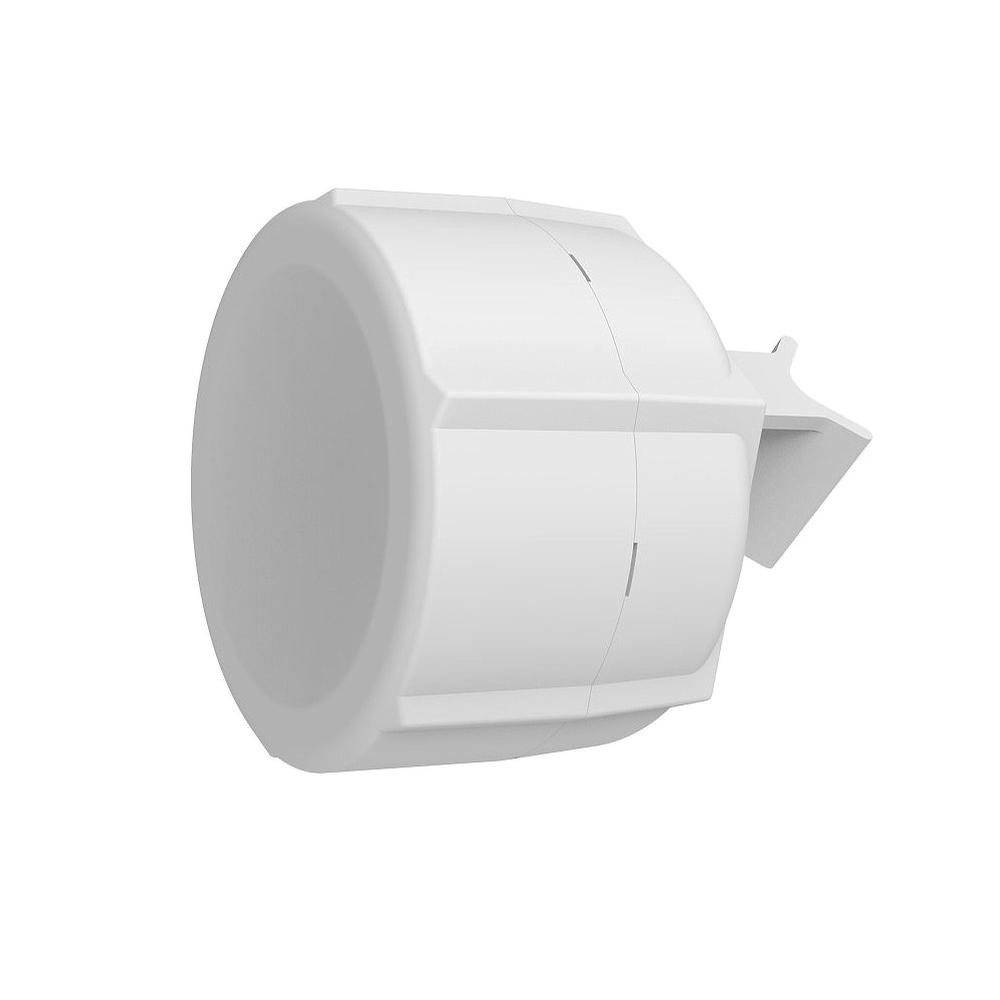

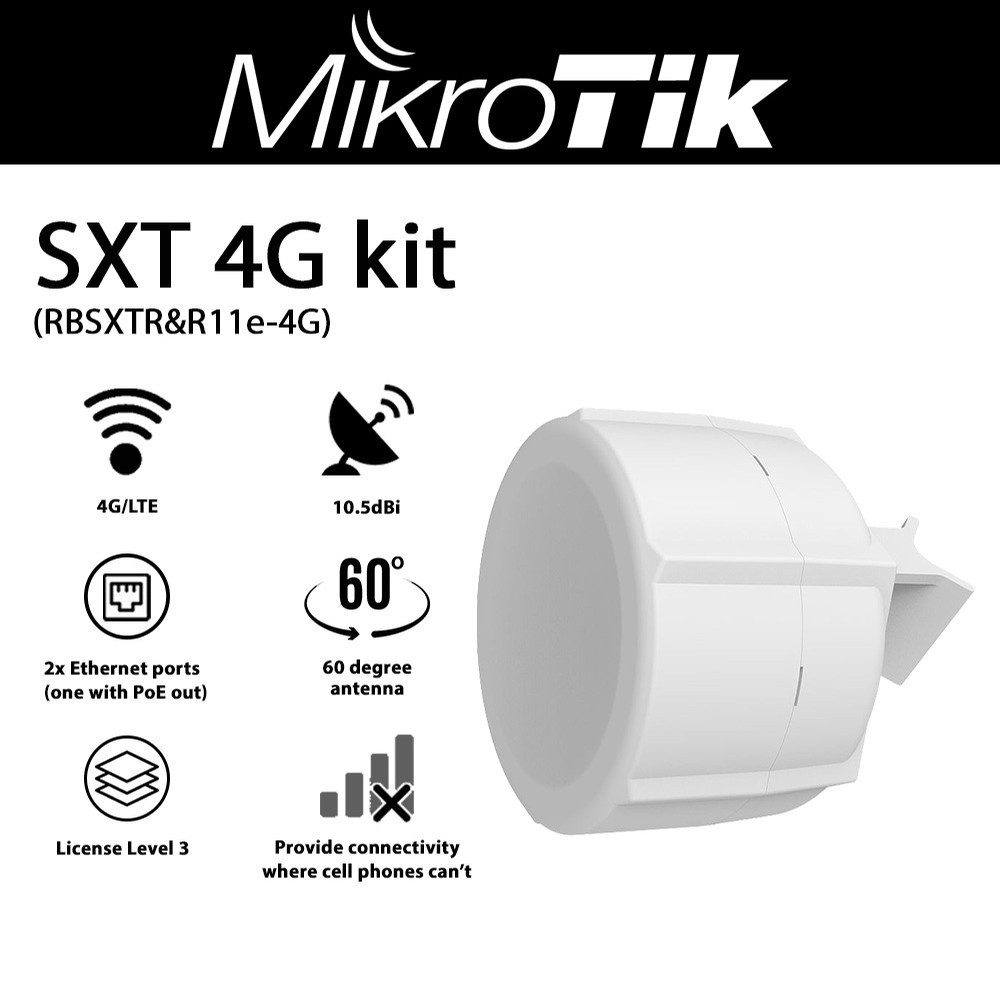

MikroTik SXT 4G kit with enclosure RouterOS L3

SXT 4G kit (RBSXTR&R11e-4G) includes LTE modem that supports LTE FDD bands 3 (1800MHz), 7 (2600MHz), 20 (800MHz) and 31 (450MHz), as well as LTE TDD bands 41n (2500MHz), 42 (3500MHz) and 43 (3700MHz).

The SXT LTE kit is a device for remote locations that are within cellular network coverage. However, due to it’s professional LTE chip design and high gain antenna, it can provide connectivity for your building even where cell phones can’t.

In comparison with our first generation model RBSXTLTE3-7, the SXT LTE kit is powered by faster CPU and supports not only LTE with more speeds, but also 2G (international model only) and 3G, as well as much wider band range. The unit is equipped with two Ethernet ports (the second port has PoE-out functionality), so you can use it to power up another device. Unit is shipped with a 24 V power supply, but can support full range 18-57 V and is 802.3af/at compliant.

The device has a built in high quality Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink, as well as two Micro SIM slots for backup link.

  • 10/100 Ethernet ports    2
  • Architecture    MIPSBE
  • CPU    QCA9531
  • CPU core count    1
  • CPU nominal frequency    650 MHz
  • Dimensions    140 x 140 x 103 mm
  • LTE Category    4 (150Mbps Downlink, 50Mbps Uplink)
  • LTE FDD bands    3 (1800MHz) / 7 (2600MHz) / 20 (800MHz) / 31 (450MHz)
  • LTE TDD bands    41n (2500MHz) / 42 (3500MHz) / 43 (3700MHz)
  • License level    3
  • Max out per port output (input < 30 V)    600 mA
  • Max out per port output (input > 30 V)    400 mA
  • Max power consumption    19 W
  • Max power consumption without attachments    6 W
  • Max total out (A)    600 mA
  • MiniPCI-e slots    1
  • Mode button    Yes
  • Number of DC inputs    1 (PoE-IN)
  • Number of SIM slots    2 Modem (Micro SIM)
  • Operating System    RouterOS
  • PoE in    802.3af/at
  • PoE in input Voltage    12-57 V
  • PoE out    Passive PoE up to 57V
  • PoE-out ports    Ether2
  • Size of RAM    64 MB
  • Storage size    16 MB
  • Storage type    FLASH
  • Tested ambient temperature    -40°C to 60°C


PDF File MikroTik RBSXTR&R11e-4G SXT 4G kit with enclosure RouterOS L3
