MikroTik Cloud Core Router CCR2004-16G-2S+PC with 16 Gigabit Ethernet ports, 2 10G SFP+ cages

Product Highlights
  • 16x Gigabit Ethernet Ports
  • Powerful Quad-Core CPU
  • 2x 10G SFP+ Cages
  • RJ-45 Console Port
  • Model#: CCR2004-16G-2S+PC

    Sku: IT4294

    MSRP: $479.99

    In Stock

    Your Price: $479.99

    SKU: CCR2004-16G-2S+PC

    Like the other models in CCR2004 series, this CCR also features the Amazon Annapurna Labs Alpine v2 CPU with 4x 64-bit ARMv8-A Cortex-A57 cores. While this CPU is running at 1.2 GHz, the router can be 3x as fast than the previous generation CCR’s. This is the silent powerhouse. Enjoy all the power of a real CCR in peace and quiet. Get rid of all the hum and buzz in your office, studio, server room or homelab without sacrificing the performance!

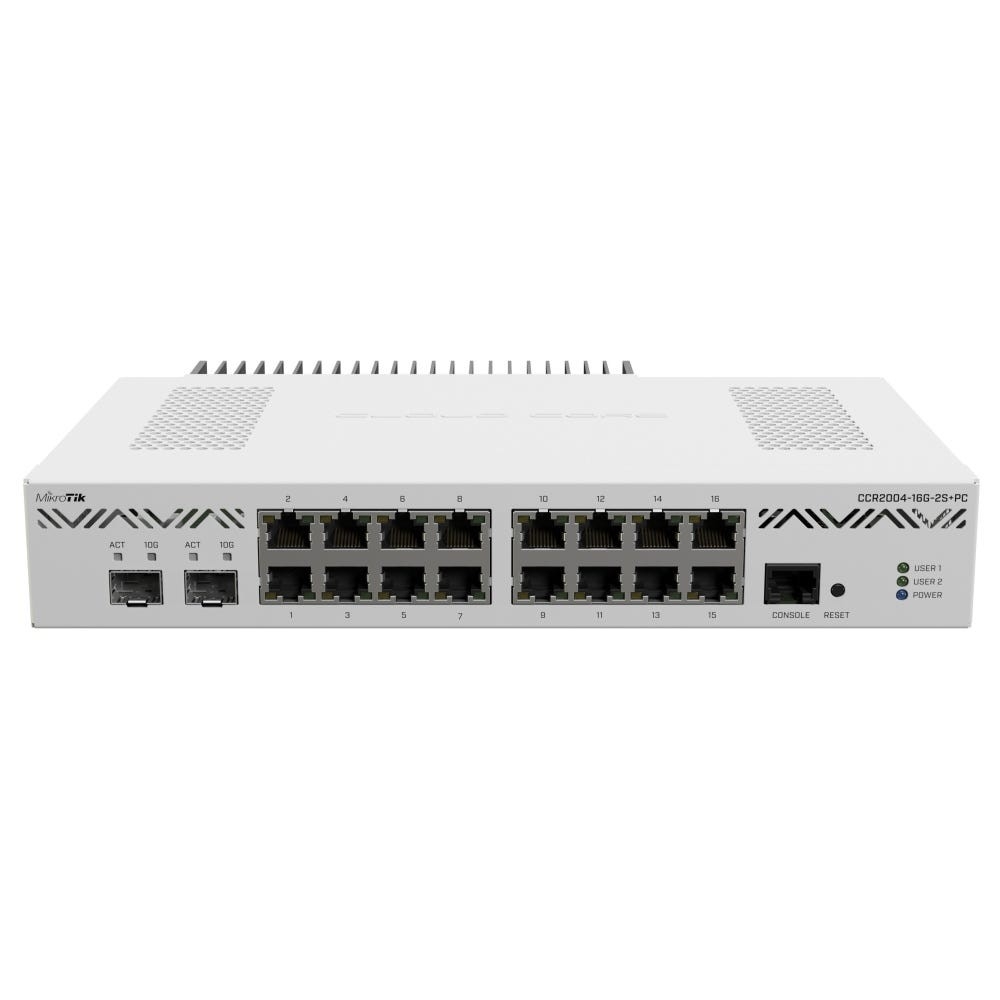

    The new router has 18 wired ports, including 16x Gigabit Ethernet ports and two 10G SFP+ cages. It also has a RJ-45 console port on the front panel.

    Each group of 8 Gigabit Ethernet ports is connected to a separate Marvell Amethyst family switch-chip. Each switch chip has a 10 Gbps full-duplex line connected to the CPU. The same goes for each SFP+ cage - a separate 10 Gbps full-duplex line. Boards come with 4GB of DDR4 RAM and 128MB of NAND storage.


    • Product code                             CCR2004-16G-2S+PC
    • CPU                                           AL32400 1.2 GHz
    • CPU architecture                       ARM 64bit
    • CPU core count                          4
    • Size of RAM                               4 GB
    • RAM type                                   DDR4
    • Storage                                      128 MB, NAND
    • Number of 1G Ethernet ports    16
    • Number of 10G SFP+ ports        2
    • Operating system                       RouterOS v7, License level 6
    • Switch chip model                      88E6191X
    • Number of Gbit ports in switch   8
    • Dimensions                                 272 x 195 x 44 mm
    • Operating temperature               -20°C to +60°C


    • Number of DC inputs                                                2
    • Supported input voltage                                           36-57 V (DC jack) 36-57 (2-pin terminal)
    • Power adapter nominal voltage                               48 V
    • Power adapter nominal current                               0.9 A
    • Max power consumption (without attachments)      30 W
    • Max power consumption                                         36 W

    Certification & Approvals

    • Certification          CE, FCC, IC


    PDF File MikroTik Cloud Core Router CCR2004-16G-2S+PC with 16 Gigabit Ethernet ports, 2 10G SFP+ cages
