MikroTik RB912UAG-5HPnD-US 5GHz 600MHz 64MB 802.11a/n mPCIe L4 US VESION
Product Highlights
Model#: RB912UAG-5HPnD-US
Sku: IT4293
MSRP: $99.99
Out of stock
Your Price: $99.99
MODEL: RB912UAG-5HPnD-US
US Version

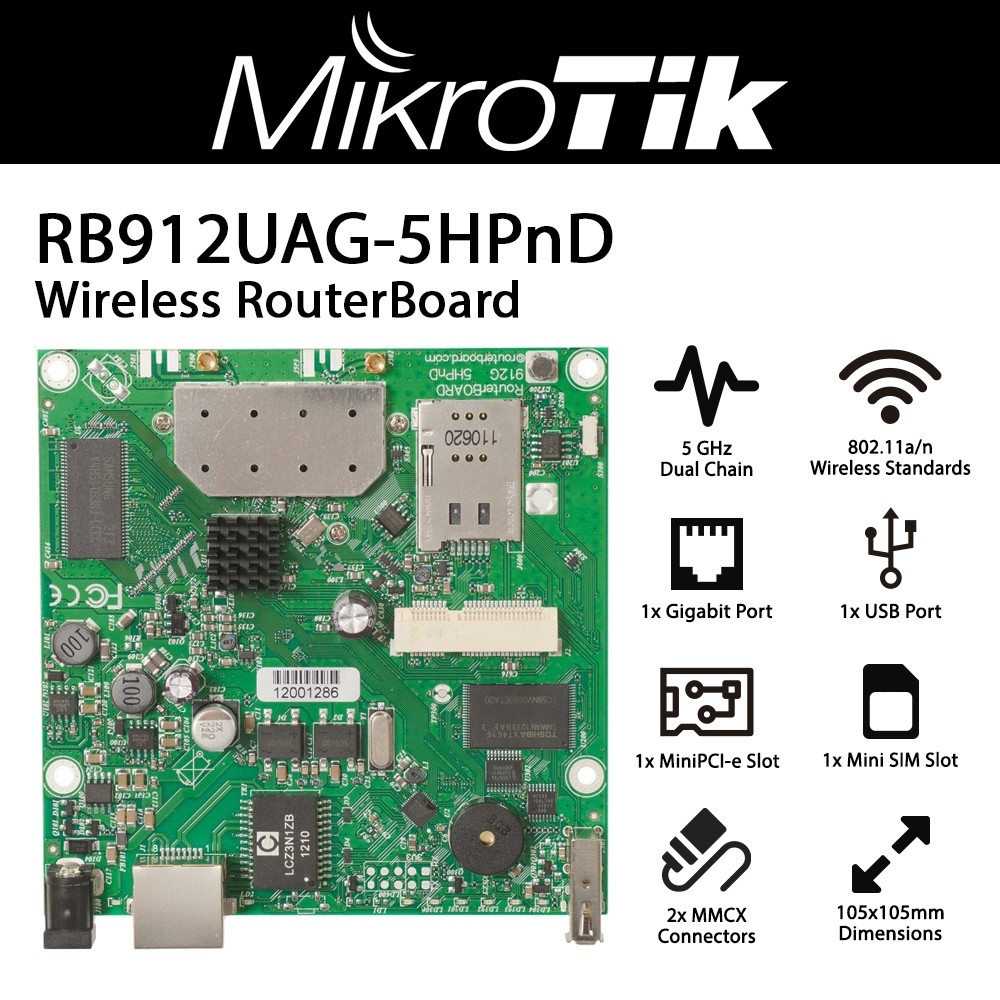

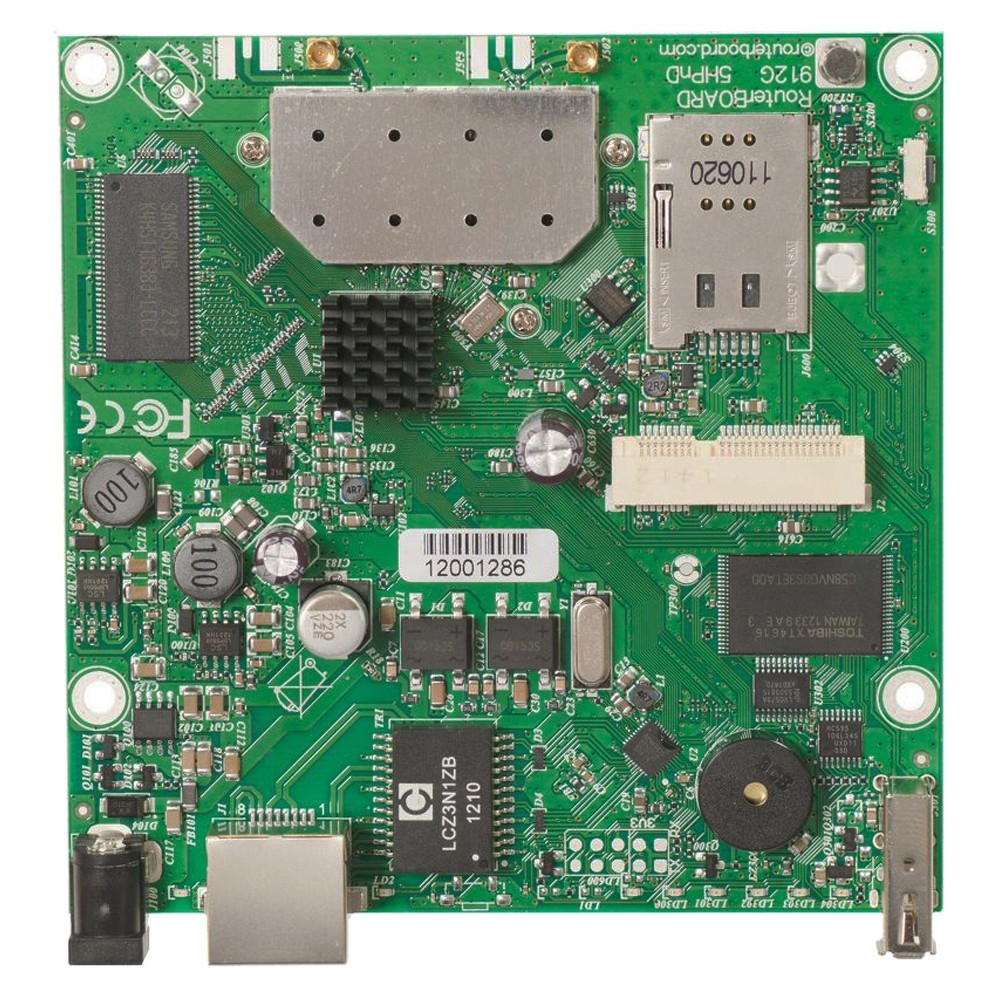

The RB912 is a small wireless router with an integrated high power wireless card and an additional miniPCIe slot for 802.11 wireless, or 3G card. The Gigabit port helps to utilize the full potential of 802.11n wireless speeds.
The integrated wireless card is capable of up to 1000mW output power. It has built in 16kV ESD protection on both the Ethernet and the MMCX ports.
- 1 Ethernet, 1 miniPCIe, USB, Additional memory, Gigabit, High power, Dual chain
- CPU Atheros AR9342 600MHz network processor
- Memory 64MB DDR2 onboard memory
- Data storage onboard NAND memory chip
- Ethernet One Gigabit port with Auto-MDI/X Wireless Built in 5GHz AR9283 802.11a/n,
Specifications
- Product code RB912UAG-5HPnD
- Architecture MIPSBE
- CPU AR9342
- CPU core count 1
- CPU nominal frequency 600 MHz
- Dimensions 105x105mm
- License level 4
- Operating System RouterOS
- Size of RAM 64 MB
- Storage size 128 MB
- Storage type NAND
- Tested ambient temperature -40°C to 70°C
Powering
- PoE in Passive PoE
- PoE in input Voltage 8-30 V
- Number of DC inputs 2 (DC jack, PoE-IN)
- DC jack input Voltage 8-30 V
- Max power consumption 12 W
- FAN count Passive
Wireless specifications
- Wireless 5 GHz Max data rate 300 Mbit/s
- Wireless 5 GHz number of chains 2
- Wireless 5 GHz standards 802.11a/n
- Wireless 5 GHz chip model AR9342
- Wireless 5 GHz generation Wi-Fi 4
Ethernet
- 10/100/1000 Ethernet ports 1
Peripherals
- Number of SIM slots 1 Modem (Mini SIM)
- MiniPCI-e slots 1
- Number of USB ports 1
- USB Power Reset Yes
- USB slot type USB type A
- Max USB current (A) 1
Other
- PCB temperature monitor Yes
- Voltage Monitor Yes
- Certification & Approvals
- Certification CE/RED, FCC, IC, EAC, ROHS
Datasheet
