RBcAPGi-5acD2nD-XL

Mikrotik


MikroTik RBcAPGi-5acD2nD-XL 2.4/5GHz cAP XL 802.11 b/g/n/a/ac INTERNATIONAL VERSION


Model#: RBcAPGi-5acD2nD-XL

Sku: IT4291

Out of stock

Your Price: N/A


MODE: RBcAPGi-5acD2nD-XL  (INTERNATIONAL VERSION)

Need a nice-looking access point that won’t get in your way? Or perhaps you’re managing the network in a crowded place and don’t want everyone to have physical access to the device? Either way – ceiling is the answer! The device itself is pretty sleek - the low profile attracts less attention than a smoke detector. Your clients, guests, or colleagues won’t even notice it. But they will definitely notice the blazing fast wireless connection all across the premises.

The new design features a larger high-gain antenna, higher sensitivity, and a built-in reflector. These improvements allow increasing the covered area by up to 100%, compared to the previous cAP models!

The dual-band, dual-chain 2.4 and 5 GHz wireless radio provides a strong coverage in 360 degrees around it, so you don’t have to worry about the placement of the device so much. Putting it on the ceiling eliminates many signal absorption problems, such as the signal being blocked by large TV sets, metal cubicle walls in open space offices, etc.

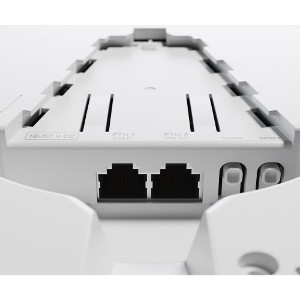

Even though the radio supports repeater mode, the two Gigabit Ethernet ports give you the ability to extend your network with cables, even if PoE power is required: the cAP XL ac supports 802.3af/ at PoE input on the first port and passive PoE output (up to 57V) on the second port.

Specifications RBcAPGi-5acD2nD-XL

CPU Quad core IPQ-4018 710 MHz
Size of RAM 128 MB
RAM type DDR3L
Storage 16 MB, Flash
Number of 1G Ethernet ports 2
Wireless 2.4 GHz, 5 GHz
Supported protocol 802.11b/g/n, 802.11a/n/ac
Antenna gain 6 dBi, 5,5 dBi
Number of chains 2
Operating system RouterOS (License level 4)
Switch chip model IPQ-4018
Dimensions 191 x 42 mm
Operating temperature -40°C to +70°C tested
Powering
PoE-in 802.3af/at
PoE-out Passive PoE up to 57V
Smart PoE Injector
Number of DC inputs 1
PoE-out ports Ether2
Supported input voltage 17-57 V
Power adapter nominal voltage 24 V
Power adapter nominal current 1.2 A
Max power consumption (without attachments) 11 W
Max power consumption 24 W
Certification & Approvals
Certification CE, FCC, IC



Wireless specifications
Rate (2.4 GHz) Tx (dBm) Receive Sensitivity
1MBit/s 26 -100
11MBit/s 26 -94
6MBit/s 26 -96
54MBit/s 23 -78
MCS0 26 -96
MCS7 22 -73
Rate (5 GHz) Tx (dBm) Receive Sensitivity
6MBit/s 26 -96
54MBit/s 21 -80
MCS0 26 -96
MCS7 20 -75
MCS9 18 -70

Datasheet

PDF File MikroTik RBcAPGi-5acD2nD-XL 2.4/5GHz cAP XL 802.11 b/g/n/a/ac INTERNATIONAL VERSION
