RBD53iG-5HacD2HnD-US

Mikrotik


MikroTik RBD53iG-5HacD2HnD-US 2.4/5GHz hAP ac3 3/5.5dBi US VERSION



Product Highlights
  • 5x Gigabit Ethernet portsv
  • Quad-core CPUv
  • PoE-in/PoE-out
  • 128 MB NAND
  • Extreme versatility with the powerful RouterOS
  • Model#: RBD53iG-5HacD2HnD-US

    Sku: IT4284



    MSRP: $129.99


    Out of stock

    Your Price: $129.99


    MODEL: RBD53iG-5HacD2HnD-US

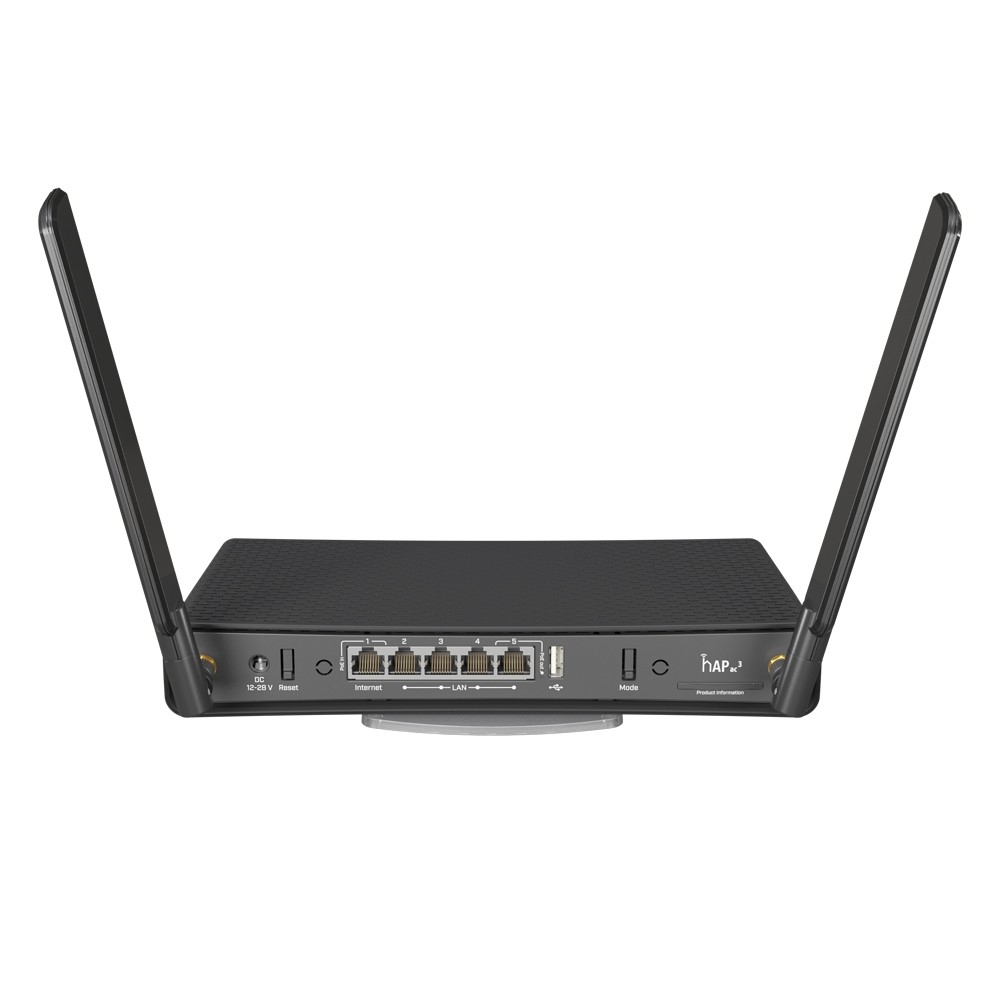

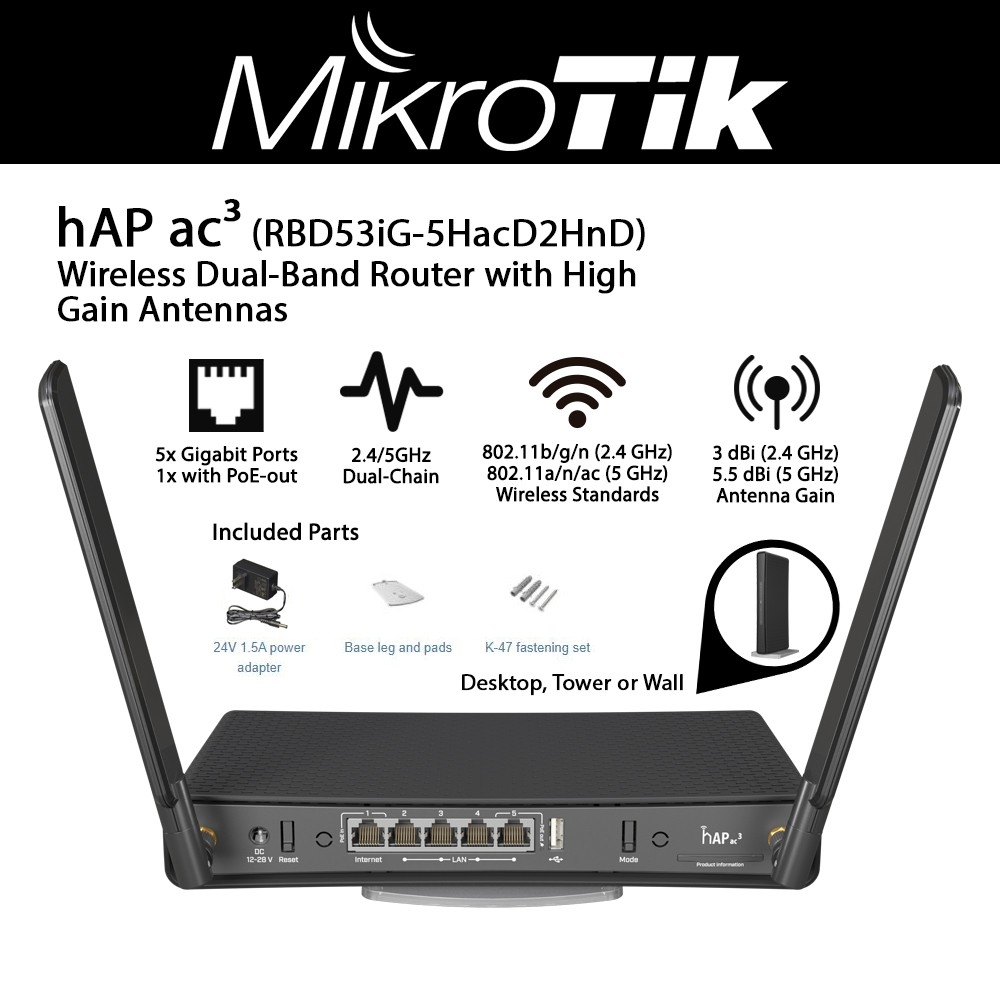

    Building upon our successful hAP heritage, the new hAP ac3 is faster and has powerful external antennas for the best WiFi coverage. In comparison with hAP ac2, hAP ac3 brings also twice as much RAM (256MB), PoE-out on port#5 and 128MB NAND for more storage.

    This Wireless Dual-band Router 5 Gigabit Ethernet ports, 256 MB of RAM and quad-core CPU, hAP ac³ can satisfy even the biggest and most demanding households. With PoE support, it can power or be powered by other devices. There is a 128 MB NAND and a full-size USB port that you can use to add extra storage. The new enclosure allows mounting the device vertically or horizontally. A wall mount set is also included.

    Reliable connection for all your devices

    Stop sharing the frequency with all your neighbors! Strong dual-chain dual-band 2.4/5 GHz wireless for concurrent coverage will solve most interference issues in a crowded environment. This is a must-have these days! You can use the 2.4 GHz channel for older devices and the 5 GHz channel for everything else, since this frequency is less cluttered.

    RouterOS – extreme versatility

    Run a secure VPN from the office directly to your home, enable parental control, Quality of Service (traffic prioritization for certain needs, such as streaming), specific firewall rules, IPsec hardware acceleration, VLAN, DHCP, e-mail or SMS notifications, and so on. With RouterOS scripting you can automate a lot:

    • modify queues based on bandwidth usage;
    • complex trigger notifications, such as “Your bandwidth has reached X for Y minutes!”
    • backups and setup of additional devices, and so much more!
    •

      Features:

    • 5x Gigabit Ethernet portsv
    • Quad-core CPUv
    • PoE-in/PoE-out
    • 128 MB NAND
    • Extreme versatility with the powerful RouterOS
    • Powerful external high gain antennas (3 – 5.5 dBi)
    • iOS/Android app for quick and easy configuration
    • Strong dual-chain dualband 2.4/5 GHz Wireless

    Specifications RBD53iG-5HacD2HnD-US

    CPU 4 core IPQ-4019 716 MHz
    Number of 1GbE ports 5
    Number of 1GbE ports with PoE-out 1
    Size of RAM 256 MB
    Size of NAND 128 MB
    Wireless 2.4 GHz 802.11 b/g/n dual-chain, 5 GHz 802.11 a/n/ac dual-chain
    Wireless regulations Specific frequency range and power will be limited by country regulations
    Wireless antenna max gain 2.4 GHz (3 dBi), 5 GHz (5.5 dBi)
    Antenna beam width 360°
    Dimensions 251 x 129 x 39 mm
    Operating system RouterOS, License level 4
    USB port 1 USB port type A
    Operating temparature -40°C to +70°C
    Powering
    PoE-in Passive PoE
    PoE-out * Passive PoE
    Supported input voltage DC jack (12 - 28 V) PoE-in (18-28 V)
    Power adapter nominal voltage 24 V
    Power adapter nominal current 1.5 A
    Max out per port output (input < 30 V) 0.5 A
    Max power consumption without attachments 12 W
    Max power consumption 30 W
    Certification & Approvals
    Certification CE, FCC, IC



    Wireless Spec
    Rate (2.4 GHz) Tx (dBm) Rx (dBm)
    1Mbit/s 25 -100
    11Mbit/s 25 -94
    6Mbit/s 26 -96
    54Mbit/s 23 -78
    MCS0 26 -96
    MCS7 22 -73
    Rate (5 GHz) Tx (dBm) Rx (dBm)
    6MBit/s 26 -96
    54MBit/s 22 -80
    MCS0 26 -96
    MCS7 21 -75
    MCS9 19 -70

    Datasheet

    PDF File MikroTik RBD53iG-5HacD2HnD-US 2.4/5GHz hAP ac3 3/5.5dBi US VERSION
