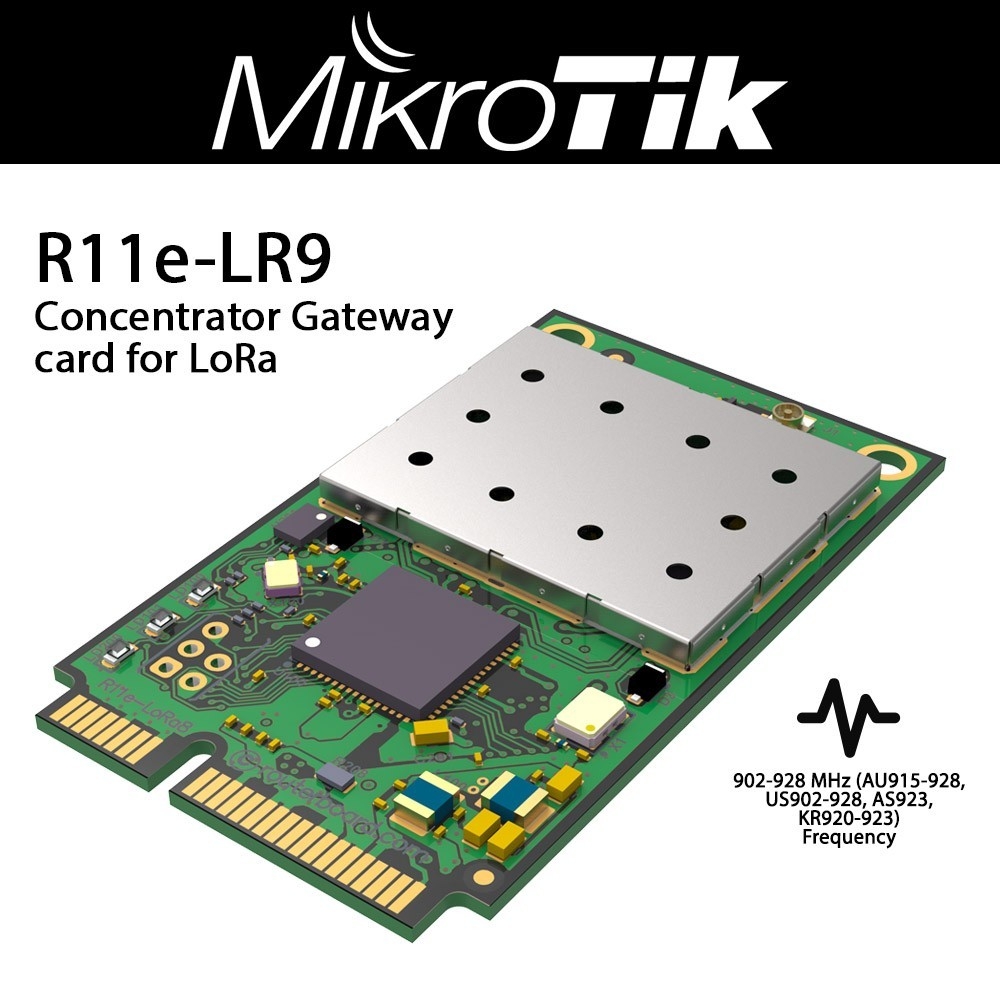

MikroTik R11e-LoRa9 902-928MHz LoRaWAN Gateway Card


Product Highlights
  • MikroTik is bringing you new, powerful products for LoRa for the fraction of the cost you would expect
  • R11e-LoRa9 is a new concentrator Gateway card for LoRa technology in mini PCIe form factor based on Semtech SX1301 chipse
  • It enables LoRa connectivity for any MikroTik product that has mPCIe slot with connected USB lines
  • With the support of 8 different channels, Listen Before Talk (LBT) and spectral scan features this product will astound you with its enticing price point
  • Operates in 902-928 MHz frequency (used in United States, Canada, Mexico, Australia, Brazil, many countries in Asia etc.)

    • Model#: R11e-LoRa9

    Sku: IT4278

    Out of stock

    Your Price: N/A


    MODEL: R11e-LoRa9

    A new LoRaWAN concentrator Gateway card in mini PCIe form factor based on Semtech SX1301 chipset. It enables LoRaWAN connectivity for any MikroTik product that has mPCIe slot with connected USB lines.

    With the support of 8 different channels, Listen Before Talk (LBT) and spectral scan features this product will astound you with its enticing price point.

    Specifications

    • Product code    R11e-LR9
    • MTBF    Approximately 100'000 hours at 25C
    • Tested ambient temperature    -40°C to 60°C

    Powering

    • Max power consumption    2 W

    Certification & Approvals

    • Certification    FCC, IC

    Interface

    • Mini-PCIe

    Supported class

    • A and C

    Frequency

    • 902-928 MHz (AU915-928, US902-928, AS923, KR920-923)

    RF Output power

    • 902-928 MHz 23 dBm

    Receive max sensitivity

    • -137 dB @ SF12

    Range

    • Up to 15 km in rural environment and up to 2 km in urban environment when using MikroTik LoRa® 6.5 dBi antenna kit (not included)

    Datasheet

    PDF File MikroTik R11e-LoRa9 902-928MHz LoRaWAN Gateway Card
