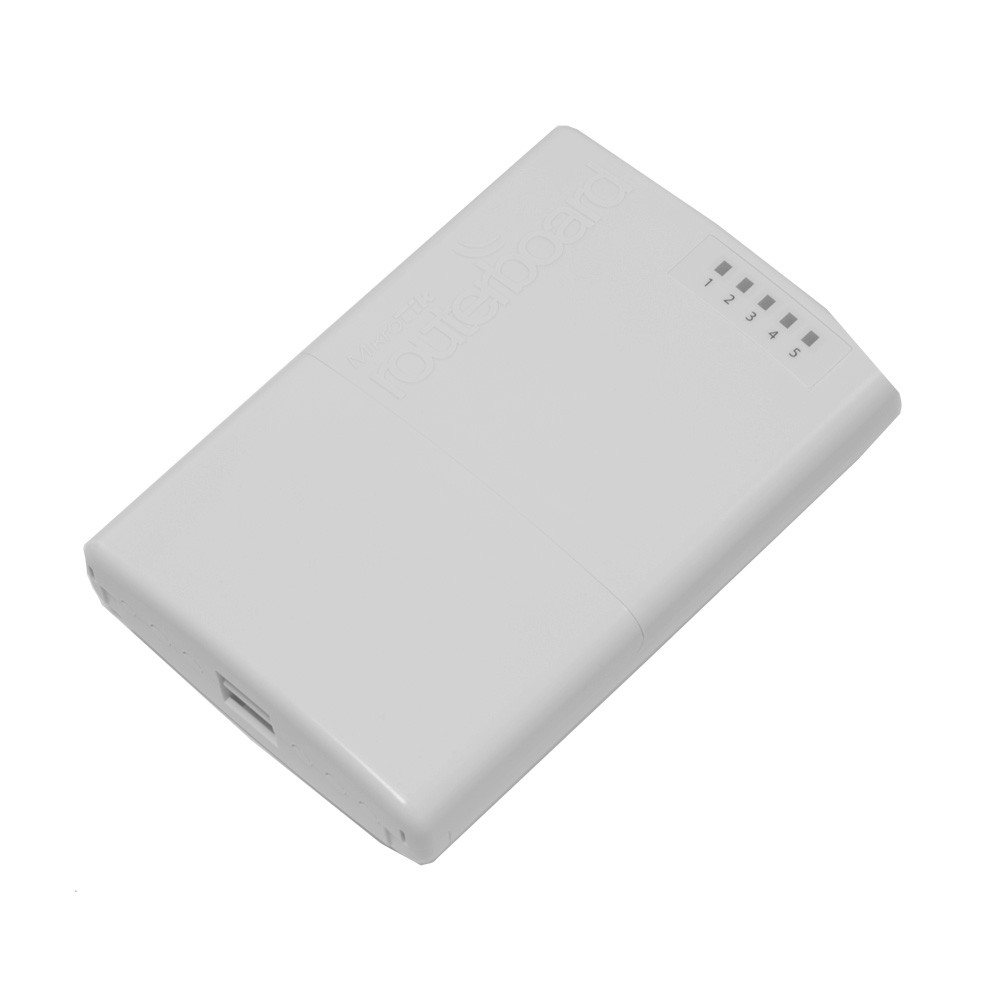

MikroTik RB750P-PBr2 PowerBox 650MHz 64MB 5xLAN Outdoor L4

Product Highlights
  • CPU: AR7241 400MHz CPU
  • Memory: 64MB 200MHz DDR RAM, 128MB NAND
  • Ethernet: 5x 10/100 Mbit/s Ethernet with Auto-MDI/X
  • Power: PoE In: 5-30V, Packaged with 24V DC 2.5A power adapter
  • OS: MikroTik RouterOS, Level 4 license (AP support)
  • Model#: RB750P-PBr2

    Sku: IT4275

    MSRP: $79.99

    In Stock

    Your Price: $79.99

    MODEL: RB750P-PBr2

    The PowerBOX is an outdoor five Ethernet port router with PoE output on four ports. You can use this device to supply power to four PoE capable devices such as our SXT or others.

    Since the device has a waterproof outdoor case, you can mount it on a tower, or in other outdoor locations.

    The unit has five shielded Ethernet ports, four of which can power other PoE capable devices with the same voltage as applied to the unit (max current out is 1A per port, max total out is 2A).

    • Architecture    MIPSBE
    • CPU    QCA9533
    • CPU core count    1
    • CPU nominal frequency    650 MHz
    • Dimensions    125x178x48mm
    • License level    4
    • Operating System    RouterOS
    • Size of RAM    64 MB
    • Storage size    16 MB
    • Storage type    FLASH
    • Tested ambient temperature    -40°C to 70°C
    • PoE in    Passive PoE
    • PoE in input Voltage    8-30 V
    • PoE out    Passive PoE
    • PoE-out ports    Ether2-Ether5
    • Number of DC inputs    2 (DC jack, PoE-IN)
    • DC jack input Voltage    8-30 V
    • Max out per port output (input < 30 V)    1 A
    • Max total out (A)    2 A
    • Max power consumption    50 W
    • Max power consumption without attachments    2 W
    • 10/100 Ethernet ports      5
    • Current Monitor    Yes
    • PCB temperature monitor    Yes
    • Voltage Monitor    Yes
    • Certification    CE/RED, EAC, ROHS


    PDF File MikroTik RB750P-PBr2 PowerBox 650MHz 64MB 5xLAN Outdoor L4
