Mikrotik CCR1036-8G-2S+ Router with 8x Gigabit ports 2x SFP+ Cages and 1x Serial Console Port

Product Highlights
  • Fastest router has now become even better - the new CCR1036-8G-2S+ now has two SFP+ ports for 10G interface support (SFP+ module available separately)
  • It uses the same 36 core Tilera CPU as our other CCR1036 model, and delivers the same performance

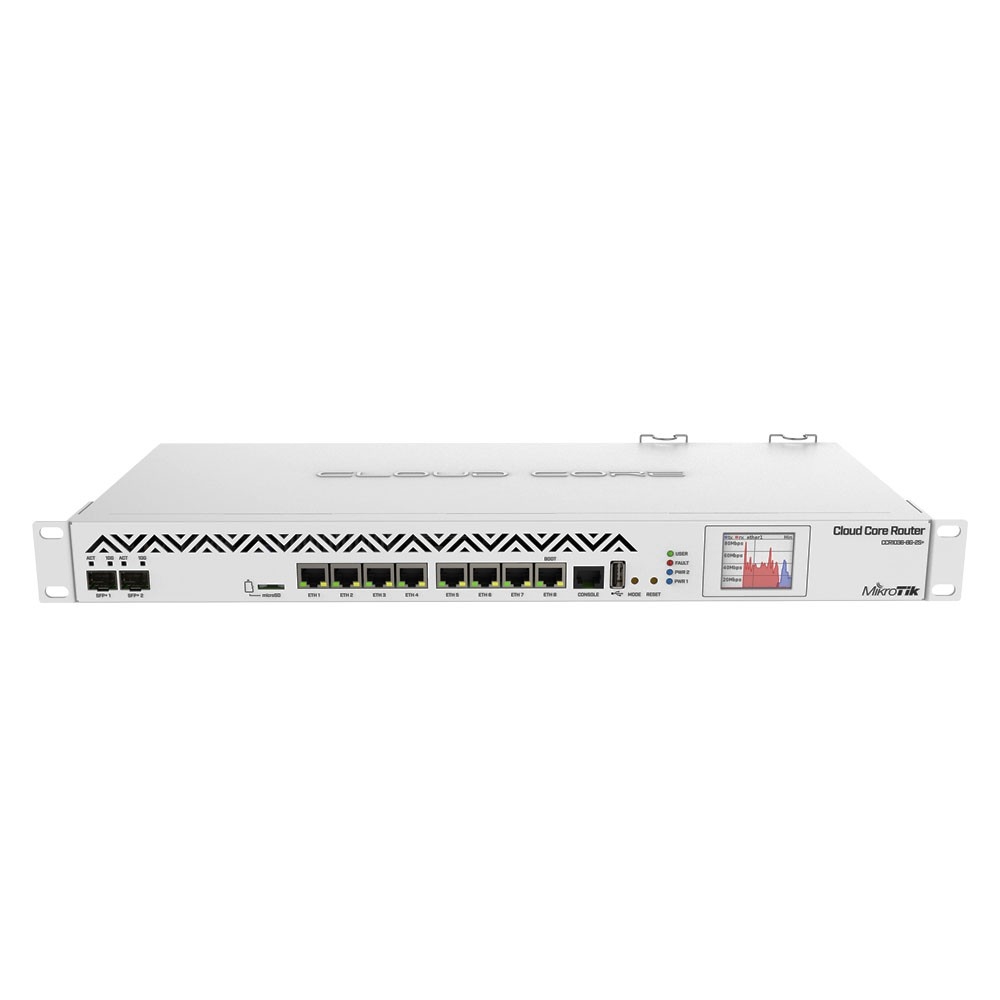

  • The device comes in a 1U rackmount case, has two SFP+ ports, eight Gigabit ethernet ports and serial console port
  • The new version of CCR1036-8G-2S+ has onboard 4GB of RAM, onboard M.2 slot, full size USB slot and dual PSU for redundancy
  • Dimensions: 443 x 193 x 44 mm; Size of RAM: 4 GB; Storage size: 1 GB; Number of AC inputs: 2; 10/100/1000 Ethernet ports: 8; SFP+ ports: 2; Number of USB ports: 1; Memory card type: microSD
  • Model#: CCR1036-8G-2S+

    Sku: IT4270

    MSRP: $1,265.00

    Out of stock

    Your Price: $1,265.00

    MODEL: CCR1036-8G-2S+

    The CCR1036-8G-2S+ is a high performance networking router with eight Gigabit ports, two SFP+ ports for 10G connectivity and dual power supplies for redundancy. Powered by a 36 core CPU, this router is able to perform the most complicated routing and management tasks, for managing large networks with high bandwidth requirements.

    Each of it’s ports is directly connected to the Tilera networking CPU, with no ports sharing any bandwidth, guaranteeing the best performance and highest reliability. The CPU supports IPsec hardware accelerated encryption, so you can use it also as a high performance VPN gateway to ensure the best encryption between important locations, without sacrificing connection speed.

    The M.2 slot allows to install a high speed SSD disk, for using a local user database, proxy storage or for other features.

    Comparing to the previous model, the new CCR1036 series has a full size USB port, redundant power supplies with improved design, RJ45 serial port and general improvements in durability, efficiency and reliability.

    • Architecture    TILE
    • CPU    TLR4-03680
    • CPU core count    36
    • CPU nominal frequency    1.2 GHz
    • Dimensions    443 x 193 x 44 mm
    • License level    6
    • Operating System    RouterOS
    • Size of RAM    4 GB
    • Storage size    1 GB
    • Storage type    NAND
    • Tested ambient temperature    -20°C to 60°C
    • Number of AC inputs    2
    • AC input range    100-240
    • Max power consumption    73 W
    • 10/100/1000 Ethernet ports    8
    • SFP DDMI    Yes
    • SFP+ ports    2
    • Memory card type    microSD
    • Memory Cards    1
    • Serial port    RJ45
    • Number of USB ports    1
    • USB Power Reset    Yes
    • USB slot type    USB type A
    • Max USB current (A)    1
    • CPU temperature monitor    Yes
    • PCB temperature monitor    Yes
    • Mode button    Yes
    • Certification    CE/RED, EAC, ROHS
